| Categories | Ball Screw |
|---|---|
| Brand Name: | TBI |
| Model Number: | BSHR01610-2 |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 1 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Series: | BSHR |
| Diameter: | 16mm |
| Lead(mm）: | 10mm |
| Accuracy Grade: | C3,C5,C7 |
| Overall Length of shaft(mm): | Max 4000mm |
| Preload Grade: | P0 |
| Material: | Screw: S55C Nut: SCM415H Ball: SUJ2 |
| Threading Direction: | right |
| Flange type: | double cutting |
| Proudct code: | F: rolled |
| Application: | delicate application in industrial application, machine tool and automation application |
| Installation: | Easy |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The TBI Ball Screw BSHR01610 redefines high-speed linear motion with its precision-engineered 16mm diameter design, offering exceptional performance for applications demanding both rapid movement and pinpoint accuracy. This advanced ball screw combines TBI's expertise in motion control with optimized small lead geometry to achieve remarkable velocity capabilities without compromising positional stability. The carefully calibrated ball recirculation system ensures smooth operation at elevated speeds while minimizing heat generation and vibration, making it particularly valuable for high-throughput automation systems and rapid positioning equipment. Engineered to maintain precise alignment during dynamic acceleration and deceleration, this component delivers consistent repeatability even under demanding operating conditions. The compact yet robust construction provides excellent rigidity for its size, allowing it to handle substantial loads while executing high-speed movements with exceptional responsiveness. TBI's attention to detail is evident in the screw's reduced friction characteristics and efficient power transmission, which contribute to energy savings and extended service life. Whether integrated into pick-and-place machines, advanced manufacturing systems, or precision testing equipment, the BSHR01610 demonstrates TBI's ability to push the boundaries of motion technology. Its balanced combination of speed, accuracy, and reliability makes it an ideal solution for engineers seeking to optimize cycle times while maintaining the tight tolerances required in modern industrial applications, showcasing TBI's commitment to delivering innovative motion solutions that address the evolving needs of high-performance automation.

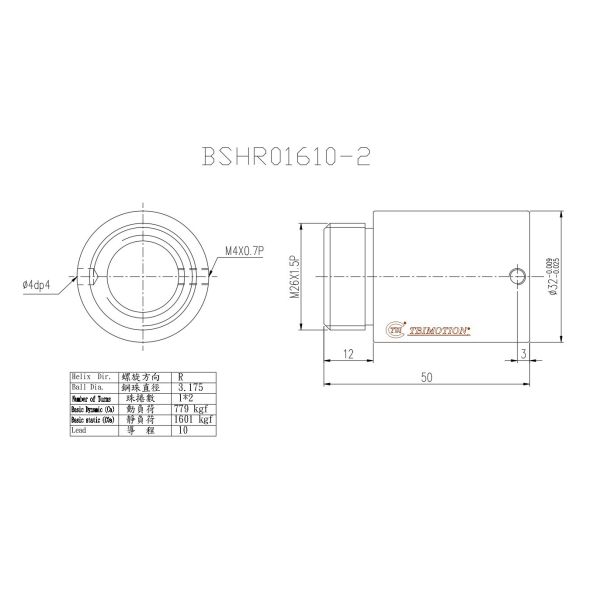

NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.
⑥Actual product photo
|
