| Categories | Ball Screw |
|---|---|
| Brand Name: | TBI |

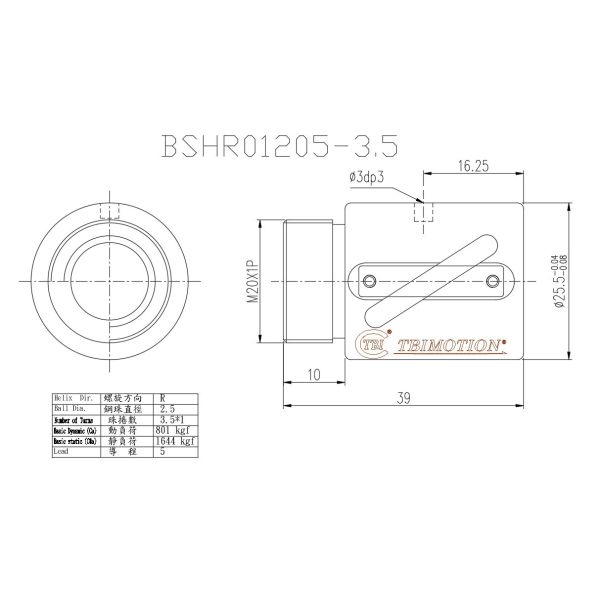

| Model Number: | BSHR01205-3.5 |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 1 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Series: | BSHR |
| Diameter: | 12mm |
| Lead(mm）: | 5mm |
| Accuracy Grade: | C3,C5,C7 |
| Overall Length of shaft(mm): | Max 4000mm |
| Preload Grade: | P0 |
| Material: | Screw: S55C Nut: SCM415H Ball: SUJ2 |
| Threading Direction: | right |
| Flange type: | double cutting |
| Proudct code: | F: rolled |
| Application: | delicate application in industrial application, machine tool and automation application |
| Installation: | Easy |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The TBI Ball Screw BSHR01205 represents a compact yet high-performance motion solution, combining a 12mm diameter screw with a 1205 ball circuit configuration to deliver exceptional precision in space-constrained applications. This miniature ball screw exemplifies TBI's ability to engineer robust linear motion technology into surprisingly small form factors without compromising performance. Designed for applications where every millimeter counts, the BSHR01205 offers smooth, efficient movement ideal for precision instruments, compact automation systems, and medical devices requiring reliable micron-level positioning. The optimized 1205 ball recirculation system ensures consistent contact between the balls and raceway, minimizing vibration while maintaining the screw's alignment integrity during dynamic operation. Despite its miniature dimensions, this ball screw demonstrates impressive load capacity and rigidity, making it particularly valuable for small-scale CNC equipment, optical positioning systems, and laboratory automation where space efficiency is critical. TBI's precision manufacturing processes are evident in the component's tight tolerances and reduced backlash characteristics, which contribute to its exceptional repeatability. The compact design simplifies integration into complex mechanical systems while offering engineers a reliable motion solution that doesn't sacrifice performance for size. Whether used in semiconductor handling equipment, precision measuring instruments, or advanced robotic mechanisms, the BSHR01205 delivers the kind of dependable, high-accuracy performance that professionals have come to expect from TBI's miniature motion components, proving that exceptional linear motion technology can come in surprisingly small packages.
NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.
⑥Actual product photo
|
