| Categories | Ball Spline |
|---|---|
| Brand Name: | TBI |
| Model Number: | SLT6 |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 1 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Diameter: | 6mm |
| Groove: | 2 |
| Spline Shaft Type: | Hollow and solid |
| Overall Length of shaft(mm): | Customized |
| Preload Grade: | P0 |
| Material: | Screw: S55C Nut: SCM415H Ball: SUJ2 |
| Spline Nut: | Non flanged |
| Application: | loaders, industrial robot arm , measuring instruments |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

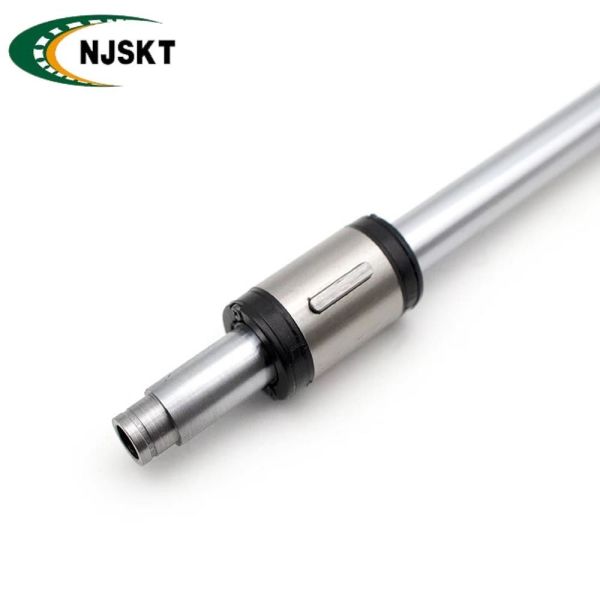

The TBI SLT6 6mm cylindrical spline nut with load groove technology represents a precision-engineered solution for applications demanding exceptional accuracy in compact motion systems. This innovative component combines the benefits of traditional ball spline technology with optimized load distribution through its specialized groove design, ensuring precise linear guidance with minimal friction. The precisely machined load grooves create ideal contact surfaces for the bearing elements, maintaining consistent alignment and smooth movement even under operational stresses. TBI's advanced manufacturing processes produce components with exacting tolerances, resulting in reliable performance that meets the stringent requirements of miniature automation, precision instruments, and compact robotics. The cylindrical design incorporates intelligent groove geometry that enhances load-bearing capacity while preserving the system's inherent accuracy characteristics. Engineered for applications where space constraints cannot compromise precision, this spline nut demonstrates TBI's expertise in developing high-accuracy solutions for demanding miniature motion systems. The SLT6 series offers system designers a compact yet robust solution that delivers both the precision of premium ball spline technology and the practical advantages of optimized load distribution. This load groove configuration showcases TBI's ability to enhance fundamental motion principles through thoughtful engineering, providing reliable performance in applications where every micron of movement must be precisely controlled within limited spaces.
②Features of TBI Ball Splines
④Actual product photo
|
