HIWIN HGH45HA Linear Guideway Block HG Type Linear Ball Bearing

HIWIN HGH45HA Linear Guideway Block HG Type Linear Ball Bearing

HIWIN HGH45HA Linear Guideway Block HG Type Linear Ball Bearing
HIWIN HGH45HA Linear Guideway Block HG Type Linear Ball Bearing
Categories HIWIN Linear Guide
Brand Name: HIWIN
Model Number: HGH45HA
Certification: DE1924083895474
Place of Origin: CHINA TAIWAN
MOQ: 1
Price: 1-100 USD
Payment Terms: T/T,L/C,D/A,D/P,Western Union
Supply Ability: 100000 pcs / per month
Delivery Time: 1-7 work days
Packaging Details: Small or with carton box, Bulk order with Wooden box
Series: HG
Model Size(mm): 45 mm
No. of Blocks per Rail: 1
Rail Mounting Type: R- Mounting From Top
Rail Length(mm): Max 4000mm, Butt-joint available
Preload Class: Z0- Light Preload , ZA- Medium Preload, ZB-Heavy Preload
Material: SNCM220 Carbon Steel
Dust Protection: SS-standard
Y -Symmetrical (E1＝E2) First hole dimension: Y= Symmetrical （E1=E2)
Installation: Easy
Application: NC lathe, EDM, measuring equipment
Smoothness: Smooth
Contact Now
Company Info.
NanJing TranzBrillix Linear Motion Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

HIWIN HGH45HA Linear Guideway Block HG Type Linear Ball Bearing

①HIWIN HGH45HA Linear Guideway Block HG Type Linear Ball Bearing

As a proud product of HIWIN's world-class manufacturing in Taiwan, the HGH45HA HG Type Linear Guideway represents the pinnacle of precision motion technology for demanding industrial applications. This premium linear ball bearing solution embodies HIWIN's decades of engineering expertise, delivering unmatched reliability and performance in heavy-duty automation environments.The HGH45HA incorporates HIWIN's proprietary high-capacity ball recirculation system, ensuring buttery-smooth linear motion perfect for precision machinery. Its robust construction features HIWIN's signature multi-directional load technology, providing exceptional stability and vibration damping characteristics. The guideway's precision-ground surfaces and optimized preload design maintain HIWIN's legendary quality standards.

Engineered for CNC equipment, industrial automation systems, and large-format machinery, this HG-type guideway showcases HIWIN's commitment to durability. The thermal-stable performance and advanced sealing solutions reflect HIWIN's holistic approach to motion control, trusted by manufacturers worldwide.With HIWIN's global technical support network, the HGH45HA delivers the perfect combination of strength and precision that professionals expect from the industry's most respected motion control brand.

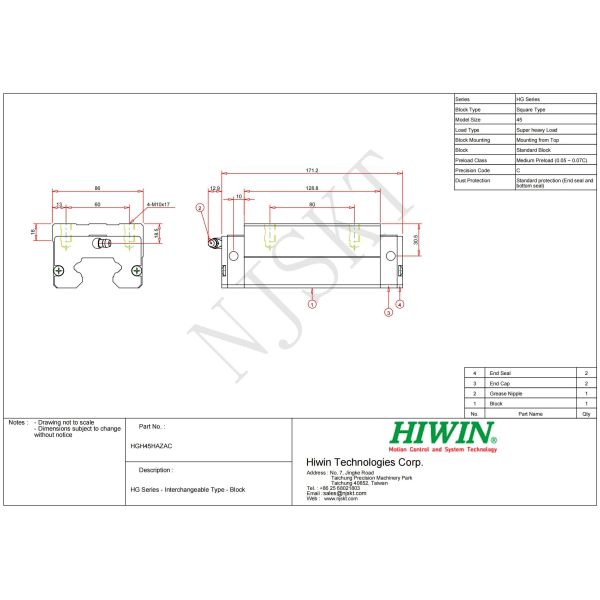

②Drawing of HGH45HA

③Model Number of HG Series

④Construction of HG Series
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal,bolt cap, double seals and scraper.
⑤Features of HG series
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateraldirections, and self-aligning to absorb installation-error. Thus,HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.
(1) Self-aligning capability
By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregularities and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy
installation.
(2) Interchangeability
Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range, which means that any blocks and any rails in a specific series can be used together while maintaining dimensional tolerance. And a retainer is added to prevent the balls from falling out when the blocks are removed from the rail.
(3) High rigidity in all four directions
Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions. Furthermore, the circular-arc groove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

⑥Actual product photo


⑦Measurement drawing


⑧HIWIN series

⑨top product recommendation
