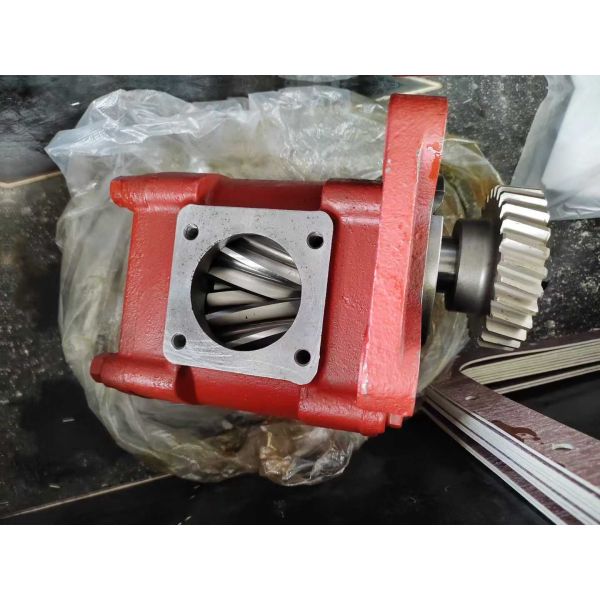

OIL PUMP ASSEMBLY 12VB.17.00C Jichai G12V190PZL diesel engine used in drilling rig

Categories jinan chidong jichai drilling engine
Brand Name: jichai
Model Number: G12V190PZL
Certification: ISO9001
Place of Origin: CHINA
MOQ: 1
Price: 3478
Supply Ability: 234
Packaging Details: wooden cases
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

OIL PUMP ASSEMBLY 12VB.17.00C Jichai G12V190PZL diesel engine used in drilling rig

Series 2000 Diesel Engines


Performance Parameters

ModelRated Power (kW/hp)Rated Speed (r/min)Specific Fuel Consumption (g/kW·h)Specific Oil Consumption (g/kW·h)Overall Dimensions (L×W×H mm)Net Weight (kg)
BG12V190ZL900 / 1500800 / 1500≤209.4≤1.63160 × 1770 × 24005300
BG12V190PZL900 / 1500800 / 1500≤209.4≤1.64374 × 1740 × 24008100
BG12V190ZL-3810 / 1300730 / 1300≤209.4≤1.63160 × 1770 × 24005300
BG12V190PZL-3810 / 1300730 / 1300≤209.4≤1.64374 × 1740 × 24008100
G12V190ZL900 / 1500800 / 1500≤209.4≤1.62692 × 1560 × 20705300
G12V190PZL900 / 1500800 / 1500≤209.4≤1.63860 × 2040 × 26788100
G12V190ZL-3810 / 1300730 / 1300≤209.4≤1.62692 × 1560 × 20705300
G12V190PZL-3810 / 1300730 / 1300≤209.4≤1.63860 × 2040 × 26788100
G12V190ZL-1740 / 1200660 / 1200≤209.4≤1.62692 × 1560 × 20705300
G12V190PZL-1740 / 1200660 / 1200≤209.4≤1.63860 × 2040 × 26788100
G12V190ZL-2600 / 1000540 / 1000≤209.4≤1.62692 × 1560 × 20705300
G12V190PZL-2600 / 1000540 / 1000≤209.4≤1.63860 × 2040 × 26788100
G8V190ZL600 / 1500540 / 1500≤213.5≤2.71802 × 1560 × 20704300
G8V190PZL600 / 1500540 / 1500≤213.5≤2.73280 × 2040 × 26786750
G8V190ZL-3510 / 1300460 / 1300≤213.5≤2.71802 × 1560 × 20704300
G8V190PZL-3510 / 1300460 / 1300≤213.5≤2.73280 × 2040 × 26786750
G8V190ZL-1470 / 1200425 / 1200≤213.5≤2.71802 × 1560 × 20704300
G8V190PZL-1470 / 1200425 / 1200≤213.5≤2.73280 × 2040 × 26786750
G8V190ZL-2390 / 1000350 / 1000≤213.5≤2.71802 × 1560 × 20704300
G8V190PZL-2390 / 1000350 / 1000≤213.5≤2.73280 × 2040 × 26786750

Main Technical Data

ItemSpecification
No. & Arrangement of Cylinders12, 60° V-type
TypeFour-stroke, water-cooled, turbocharged & aftercooled, direct injection
Bore190 mm
Stroke210 mm
Total Displacement71.45 L (or 47.6 L depending on variant)
Compression Ratio14 : 1
Direction of Rotation- Counter-clockwise (models without “R”) - Clockwise (models with “R”) (Facing flywheel)
Starting MethodAir motor or electric motor
Lubrication MethodPressure + splash lubrication
