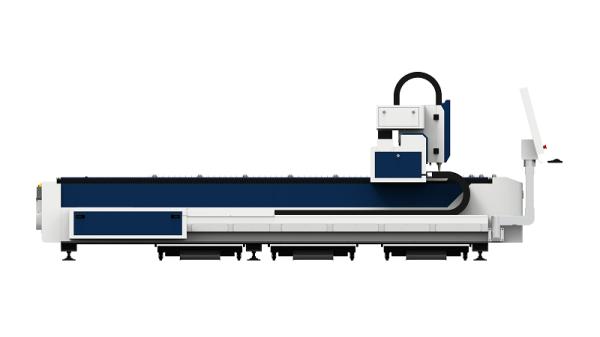

QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine

QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine

QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine
QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine
Categories Sheet Metal Laser Cutting Machine
Brand Name: QIHAI
Model Number: QH-6015F
Certification: ISO, CE
Place of Origin: Foshan, Guangdong, China
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100 set/month
Delivery Time: 50 days
Packaging Details: wood, plastic, container
Graphic format supported: DXF,AI,BMP,PLT,DWG
Cnc or not: Yes
Application: Laser Cutting,Suitable for metal sheets cutting,cheap laser metal cutting machine,metal cutting
Cutting thickness: Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode: Water Cooling
Warranty: 1 Year
Product name: Fiber Laser Metal Cutting Machine,BODOR F3015,GWEIKE LF3015C metal sheet laser cutting machine
After-sales service provided: Engineers available to service machinery overseas
Cooling system: water cooling, Industry water chiller
Contact Now
Company Info.
Qihai Laser Tech. Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine

QH-6015F Beveling Cutting Sheet Metal Laser Cutting Machine
Description
The QH-6015F is a specialized beveling sheet metal laser cutting machine designed for high-precision beveling processing of medium-to-large workpieces, perfectly suited for industries like steel structures, engineering machinery, and large-scale equipment enclosures. Its core strength lies in merging a spacious 6000×1500mm processing area (supporting up to 900kg maximum loading weight) with stable, consistent beveling capabilities—enabling one-time beveling processing for long workpieces (e.g., 6m-long steel beams) without segmenting, which eliminates alignment errors common in split processing.

Quick details

Beveling Core: ±0.03mm X/Y-axis precision ensures uniform beveling quality across 6000×1500mm area; supports V/U/Y/single/double-sided bevels, no workpiece segmentation needed.​

Key Specs: 6000×1500mm processing area (900kg max loading), 1500W-20KW laser power (0.5-20mm beveling thickness), double rack & pinion servo transmission.​

Efficiency: 100m/min max linkage speed + 1.0G acceleration—cuts medium-large workpiece beveling time by 30% vs. segmented processing.​

Fit: Steel structures, engineering machinery; 380V/50Hz for industrial workshop integration.


Technical Specifications
Processing Area6000 * 1500mm
Maximum Loading Weight900kg
Machine Weight3500kg
Overall Dimensions8000×2560×1900mm
Laser Power Range1500W - 20KW
X/Y-axis Positioning Accuracy±0.03mm
X/Y-axis Repositioning Accuracy±0.03mm
Maximum Linkage Acceleration1.0G
Maximum Linkage Speed100m/min
Transmission SystemDouble rack & pinion transmission with servo drive
Voltage Requirement380V
Frequency50Hz


Advantage​

  1. Medium-Large Workpiece Beveling Without Alignment Errors: The 6000×1500mm processing area allows one-time beveling cutting for long workpieces (e.g., 6m×1.5m steel plates) without splitting. This avoids beveling misalignment (a major issue in segmented processing) and reduces weld joint rework rates by 40%-50%, as the ±0.03mm axis precision maintains consistent bevel angles from the start to end of the 6m length.​
  1. High-Speed Beveling for Medium-Batch Efficiency: With 100m/min linkage speed and 1.0G acceleration, the machine completes large-area beveling tasks quickly—for example, finishing a full-length V-bevel on a 6m×1.5m stainless steel sheet (5mm thick) in 8-10 minutes, compared to 12-15 minutes with slower medium-format cutters. This directly boosts daily output of beveling workpieces by 25%+, ideal for meeting medium-batch production deadlines.​
  1. Power Versatility for Multi-Thickness Beveling: The 1500W-20KW adjustable laser power range covers diverse beveling needs: low power (1500W-5KW) for precision beveling on thin medium sheets (0.5-5mm aluminum), high power (10KW-20KW) for deep-penetration beveling on thick plates (10-20mm carbon steel). This eliminates the need for multiple machines for different thicknesses, lowering equipment costs while ensuring consistent beveling quality across material types.​
  1. Stable High-Load Beveling: With a 900kg maximum loading capacity and 3500kg robust frame, the machine securely holds heavy medium-large plates (e.g., 20mm thick carbon steel sheets) during beveling cutting. The double rack & pinion servo transmission prevents workpiece shift under high load, ensuring beveling edges remain smooth and accurate—critical for engineering machinery parts where beveling quality directly impacts structural strength.
