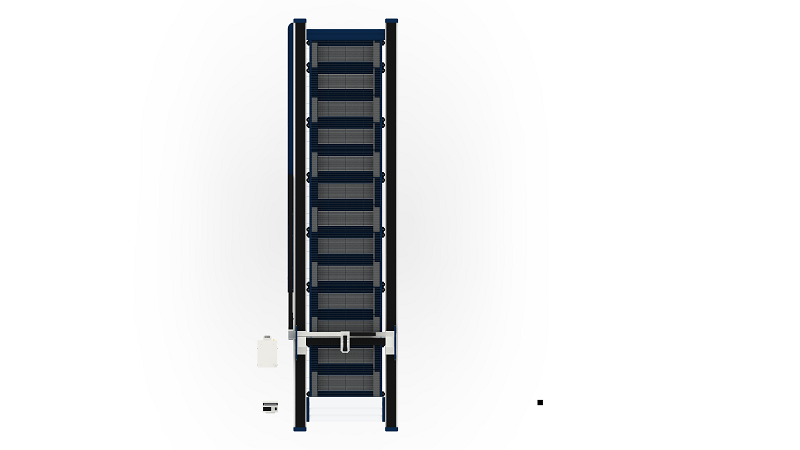

Gantry Type Metal Fiber Laser Cutting Machine Large Format Sheet Metal Laser Cutting Machine

Gantry Structure Guarantees Large-format Precision: Unlike cantilever-type machines prone to X-axis deflection in long-stroke cutting, the QH-12025F’s gantry frame uses symmetric dual-drive design, synchronizing motion across the 12m span. This eliminates "end sag" (common in non-gantry large-format cutters) and maintains ±0.03mm positioning accuracy—critical for seamless assembly of oversized parts (e.g., 12m steel trusses) where even 0.1mm deviation causes fit-up issues.​

Gantry Rigidity Supports Heavy-load Durability: The gantry frame’s reinforced steel construction distributes 12000kg workpiece weight evenly, preventing structural deformation that would compromise cutting quality. Non-gantry machines often require reducing load (to 5000kg max) or slowing speed (to 60m/min) for heavy sheets, but the QH-12025F’s gantry design retains full 100m/min speed and accuracy under maximum load, boosting heavy-part throughput by 35%+.​

Gantry-transmission Synergy Enhances High-speed Stability: The gantry frame’s rigidity complements the double rack & pinion servo transmission, damping vibration during 100m/min high-speed cutting. This synergy avoids "chatter marks" on cut edges— a common issue when non-gantry machines accelerate/decelerate—and ensures consistent edge quality across the entire 12000×2500mm area, reducing post-processing time by 20%.
