QH-6020F Sheet Metal Laser Cutting Machine

Categories Fiber Laser Metal Cutting Machine
Brand Name: QIHAI
Model Number: QH-6020F
Certification: ISO, CE
Place of Origin: Foshan, Guangdong, China
MOQ: 1 Set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100 set/month
Delivery Time: 50 days
Packaging Details: wood, plastic, container
Graphic format supported: DXF,AI,BMP,PLT,DWG
Cnc or not: Yes
Application: Laser Cutting,Suitable for metal sheets cutting,cheap laser metal cutting machine,metal cutting
Cutting thickness: Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode: Water Cooling
Warranty: 1 Year
After-sales service provided: Engineers available to service machinery overseas
Function: Cutting Metal Materials,Wifi wireless control,Cutting Metal sheet tube
Cooling system: water cooling, Industry water chiller
Keyword: laser cutting machine price, fiber laser cutting machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

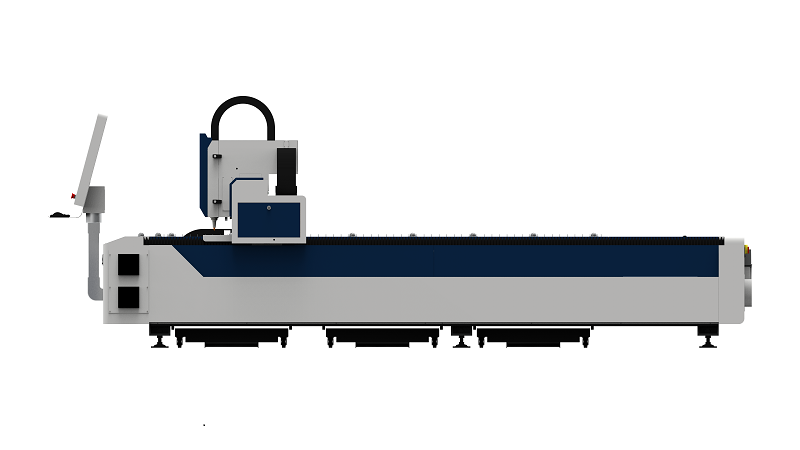

QH-6020F Sheet Metal Laser Cutting Machine

QH-6020F Sheet Metal Laser Cutting Machine
Description
The QH-6020F is a versatile sheet metal laser cutting solution tailored for medium-to-large-scale 钣金 processing scenarios—such as heavy machinery component manufacturing, steel structure fabrication, and batch production of oversized metal parts. Its standout feature lies in balancing a spacious 6000×2000mm processing area (supporting up to 1000kg maximum loading weight) with reliable precision and efficiency

Quick details

Core Features: 6000×2000mm large processing area (1000kg max loading) for medium-to-large workpieces; ±0.03mm axis precision + 100m/min speed via double rack & pinion servo transmission.

Key Specs: 1500W-20KW laser power (0.5-25mm thickness), 1.0G acceleration, 3600kg stable frame, 8000×2760×1900mm dimensions.

Efficiency & Fit: Cuts large-workpiece processing time by 30% vs. small-format machines; ideal for heavy machinery/steel structures; 380V/50Hz industrial use.


Technical Specifications
Processing Area6000 * 2000mm
Maximum Loading Weight1000kg
Machine Weight3600kg
Overall Dimensions8000×2760×1900mm
Laser Power Range1500W - 20KW
X/Y-axis Positioning Accuracy±0.03mm
X/Y-axis Repositioning Accuracy±0.03mm
Maximum Linkage Acceleration1.0G
Maximum Linkage Speed100m/min
Transmission SystemDouble rack & pinion transmission with servo drive
Voltage Requirement380V
Frequency50Hz


Advantage

Large-Format Processing Reduces Workpiece Segmentation: The 6000×2000mm area accommodates full-size medium-to-large parts (e.g., 6m×2m steel panels for machinery frames) without splitting, which eliminates bevel alignment errors and weld joint rework—lowering overall production time by 30% and scrap rates by 25% compared to segmented processing.

High Precision Maintained at Full Speed: With double rack & pinion servo transmission and ±0.03mm dual-axis accuracy, the machine avoids precision loss even when running at 100m/min maximum speed. This eliminates post-cut grinding or calibration (common in less stable large-format cutters), reducing secondary processing time by 40%+.

Stable High-Load Cutting: Its 1000kg maximum loading capacity and 3600kg robust frame enable consistent 1.0G acceleration and 100m/min speed even when handling heavy thick plates (e.g., 20mm carbon steel sheets). Unlike lighter machines that slow down under load, it maintains throughput for high-weight workpieces—critical for meeting heavy machinery production deadlines.

Versatile Power for Diverse Materials: The 1500W-20KW adjustable laser power range covers thin non-ferrous metals (0.5mm aluminum) to thick carbon steel (25mm), making it a one-machine solution for mixed-material production lines. This reduces the need for multiple specialized cutters, cutting equipment investment and workshop space usage.
