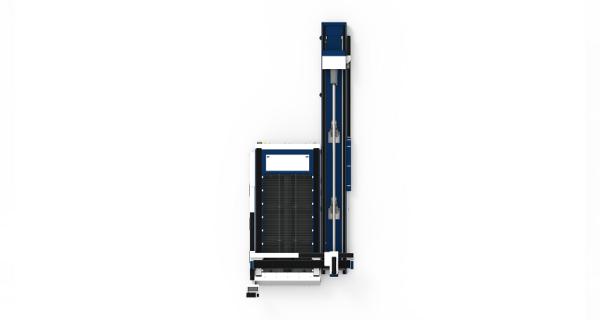

| Categories | Sheet And Tube Laser Cutting Machine |
|---|---|
| Brand Name: | QIHAI |
| Model Number: | QH-3015F |
| Certification: | CE, ISO |
| Place of Origin: | Foshan, Guangdong, China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |
| Delivery Time: | 45-60 work days |
| Packaging Details: | wooden box |
| Product: | Sheet Metal Laser Cutting Machine |
| Processing Area: | 3000 * 1500mm |
| Laser Power: | 1500W-20000W |
| X/Y-axis Positioning Accuracy: | 0.03mm |
| Frequency: | 50Hz |
| Voltage: | 380V |
| Laser Generator Classification: | Fiber Laser Generator |
| Transmission: | Double rack&pinion transmission and servo drive |
| Working Environment: | 0-40℃, Humidity ≤80% |
| Graphic Format: | PLT, DXF |
| Company Info. |
| Qihai Laser Tech. Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Core High-Acceleration Feature: 1.5G maximum linkage acceleration enables rapid start-stop responses, cutting non-cutting time (e.g., path transition, workpiece positioning) by 35%-45% vs. lower-acceleration machines.
Key Specs: 3000×1500mm sheet area (800kg max load) + tube processing; ±0.03mm dual-axis accuracy; 1500W-20KW power; 100m/min max speed; servo-driven double rack & pinion transmission.
Fit: Mixed sheet-tube production (automotive/steel structure); high-efficiency needs for batch or complex-path processing.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 2500kg |
| Overall Dimensions | 8450×3250×1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.5G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
1.5G Acceleration Drives Unmatched Throughput: The machine’s 1.5G maximum linkage acceleration drastically reduces time spent on path transitions, cornering, and workpiece repositioning—critical for batch processing of small-to-medium sheet parts or multi-segment tube cutting. Compared to 1.0G acceleration models, it shortens overall processing cycles by 25%-30%, enabling more parts produced per shift without compromising precision.
High Acceleration + Stable Transmission = Consistent Precision: Unlike low-quality machines where high acceleration causes vibration and accuracy loss, the QH-3015FT’s servo-driven double rack & pinion transmission works with 1.5G acceleration to maintain ±0.03mm positioning/repositioning accuracy. This ensures uniform cut quality (e.g., smooth tube notches, precise sheet holes) even when switching between fast-moving paths, eliminating scrap from acceleration-induced deviations.
Adapts to Complex Sheet-Tube Mixed Processing: For projects requiring both sheet components and tube frames (e.g., automotive brackets, steel structure assemblies), the 1.5G acceleration allows seamless, fast switching between sheet cutting (e.g., 3000×1500mm large sheets) and tube processing (e.g., multi-angle tube cuts). It avoids the “waiting lag” of slower machines when adjusting to different material types or cutting paths, keeping production workflows continuous and efficient.
|
