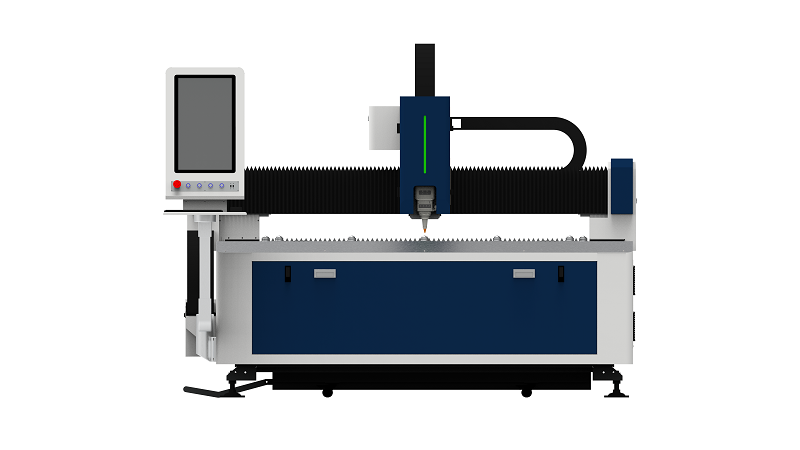

QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine

QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine

QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine
QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine
Categories Fiber Laser Metal Cutting Machine
Brand Name: QIHAI
Model Number: QH-8020F
Certification: CE, ISO
Place of Origin: Foshan, Guangdong, China
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T
Supply Ability: 90set/mon
Delivery Time: 45-60 work days
Packaging Details: wooden box
Product: Sheet Metal Laser Cutting Machine
Processing Area: 8000 * 2000mm
Laser Power: 1500W-20000W
X/Y-axis Positioning Accuracy: 0.03mm
Frequency: 50Hz
Voltage: 380V
Laser Generator Classification: Fiber Laser Generator
Transmission: Double rack&pinion transmission and servo drive
Working Environment: 0-40℃, Humidity ≤80%
Graphic Format: PLT, DXF
Contact Now
Company Info.
Qihai Laser Tech. Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine

QH - 8020F High Speed Single Platform Open Type Sheet Metal Laser Cutting Machine

Description
The QH-8020F is a high-performance sheet metal processing solution defined by its High Speed capability (1.5G maximum linkage acceleration) and Single Platform Open Type design—engineered for industries like heavy machinery parts manufacturing, steel structure processing, and thick-plate component production that demand both rapid processing and easy workpiece handling.​
Its standout 1.5G maximum linkage acceleration (paired with 100m/min maximum linkage speed) drastically reduces non-cutting time (e.g., rapid traversal between cutting paths), while the double rack & pinion transmission with servo drive ensures this high speed does not compromise precision—maintaining ±0.03mm X/Y-axis positioning and repositioning accuracy even during fast-paced thick-plate cutting. The open single-platform structure provides unobstructed access to the 8000×2000mm processing area (supporting up to 2600kg maximum loading weight), enabling quick crane-assisted loading/unloading of heavy sheets (e.g., 30mm carbon steel plates) without space constraints.


Quick Detail

High Speed Core: 1.5G maximum linkage acceleration (cuts non-cutting time by 40%-50%) + 100m/min speed; double rack & pinion drive maintains ±0.03mm precision at high speed.​

Key Specs: 8000×2000mm processing area (2600kg max loading), 6000W-20KW power (thick-plate single-pass cutting), open single platform for easy crane handling.​

Fit: High-efficiency heavy machinery/steel structure production; 380V/50Hz industrial use.


Technical Specifications
Processing Area8000 * 2000mm
Maximum Loading Weight2600kg
Machine Weight3800kg
Overall Dimensions11000 * 3260 * 1900mm
Laser Power Range1500W - 20KW
X/Y-axis Positioning Accuracy±0.03mm
X/Y-axis Repositioning Accuracy±0.03mm
Maximum Linkage Acceleration1.5G
Maximum Linkage Speed100m/min
Transmission SystemDouble rack & pinion transmission with servo drive
Voltage Requirement380V
Frequency50Hz


Advantage

  1. 1.5G Acceleration Boosts Overall Productivity: The industry-leading 1.5G maximum linkage acceleration enables the laser head to rapidly transition between cutting segments—for example, reducing the total processing time of a 8m×2m steel plate with multiple cutouts by 35%-45% compared to machines with 1.0G acceleration. This is critical for high-volume production, where even small time savings per workpiece accumulate to significant daily output gains.​
  1. High Speed Without Precision Loss: Unlike low-end high-speed machines that sacrifice accuracy for speed, the QH-8020F’s double rack & pinion servo transmission stabilizes motion at 1.5G acceleration, retaining ±0.03mm X/Y-axis precision. This ensures fast cutting of thick, high-value components (e.g., heavy machinery frames) still meets strict tolerance requirements, eliminating rework caused by speed-induced errors.​
  1. Synergy of High Speed & Open Platform: The open single-platform design allows quick 2600kg workpiece loading/unloading (via crane), while the 1.5G acceleration minimizes in-machine processing time—creating a “fast load + fast cut” workflow. This reduces the total cycle time per workpiece by 30%-40% vs. enclosed machines (which have slower loading) or low-acceleration open machines (which have slower cutting).​
  1. High Power Supports High-Speed Thick-Plate Cutting: The 6000W-20KW laser power range matches the machine’s high-speed capability—high power ensures single-pass cutting of thick metals (e.g., 30mm carbon steel), while 1.5G acceleration avoids bottlenecks from slow head movement. This means the machine doesn’t waste power on waiting for the laser head to reposition, maximizing energy efficiency and throughput.
