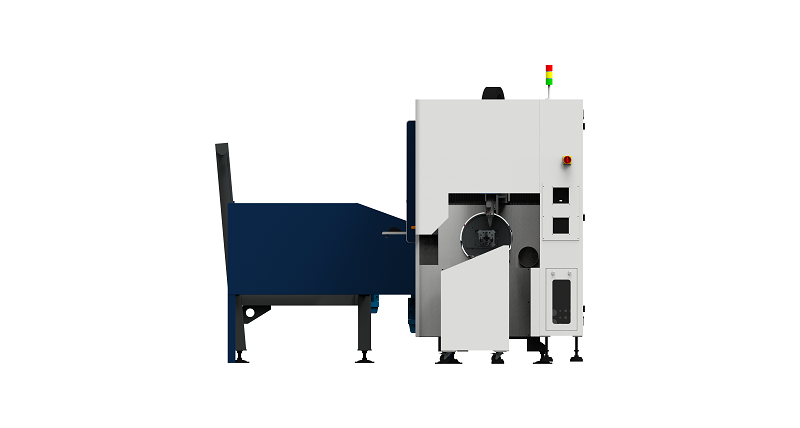

Fully Automatic Loading Fiber Laser Metal Cutting Machine Side Mounted Lathe 500W 1000W

Fully-automatic Loading Core: Side-mounted rails + auto convey/alignment/clamp/unload (cuts cycle time by 50% vs. semi-auto); QH-GZ for heavy thick tubes, QH-GS-6012 for compact-space multi-thickness use.​

Shared & Variant Specs: Φ15-500mm round/15×15-500×500mm square tubes (5500-6500mm length, ±0.03mm accuracy); QH-GZ: 6000W-20KW/2T/9620×2950×2080mm; QH-GS-6012:1500W-20KW/1.7T/8500×1380×2050mm.​

Fit: High-volume batch tube processing (pipelines/machinery); side-mounted design + auto loading avoids manual lifting/inconsistency.

Fully-automated Side-mounted Loading Slashes Cycle Time: The side-mounted Fully-automatic Loading system completes “feed-align-cut-unload” in one continuous loop—no manual handoff between steps. For a batch of 100×6500mm Φ300mm round tubes, QH-GZ reduces total processing time from ~4 hours (semi-auto) to ~1.8 hours, while QH-GS-6012’s compact loading mechanism maintains this efficiency in smaller workshops. Auto-unloading also eliminates bottlenecks, boosting daily throughput by 60%-70% for both variants.​

Heavy Tube Handling Reduces Labor Risks & Costs: QH-GZ’s reinforced side-mounted Fully-automatic Loading system handles tubes up to 150kg/m (e.g., 25mm-thick carbon steel pipes) via motorized rails and hydraulic clamps, eliminating manual lifting (cutting worker injury risk by 90%+). This replaces the 2-3 workers needed for semi-auto heavy tube positioning, reducing labor costs by 50%-60% for 24/7 operations—an advantage not matched by lightweight auto-loaders.​

Auto Alignment Boosts Precision & Yield: The system’s laser-guided alignment (integrated with the side-mounted lathe) calibrates tubes within ±0.02mm, matching the machine’s ±0.03mm accuracy. This avoids manual alignment errors (common in semi-auto setups) that cause 8%-12% scrap rates. For high-precision pipeline joints, every cut tube meets tolerances, cutting rework by 85% and scrap costs by 40%-50% across both models.​

Variant-specific Loading Adaptability Fits Diverse Needs: QH-GS-6012’s compact side-mounted Fully-automatic Loading uses foldable arms, fitting workshops with 9m-length limits (vs. QH-GZ’s 9.6m footprint) while still handling full 6500mm tubes. QH-GZ’s heavy-duty loading system, meanwhile, pairs with its 6000W-20KW power to process thick-wall tubes in one pass—no secondary cutting needed, unlike underpowered or manual-load machines that require multiple setups. This versatility lets users choose the right auto-loading solution for their space and tube type.
