WDD35D4 Rotary Potentiometer Precision Conductive Plastic Potentiometer

Categories Precision Potentiometer
Brand Name: Uchi
Model Number: WDD35D
Certification: SMC
Place of Origin: Dongguan,Guangdong,China
MOQ: 100pcs
Price: Negotiable
Payment Terms: T/T,paypal, Western Union,MoneyGram
Supply Ability: 50000000pcs per Month
Resistance: 1kΩ~10kΩ
Resistance Tolerance: ±15%
Operating Temperature: -55℃~ +125℃
Rated Power: 2W ( @70℃ )
Size / Dimension: 39*30mm
shaft diameter: 6mm
Shaft length: 19mm or 33mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

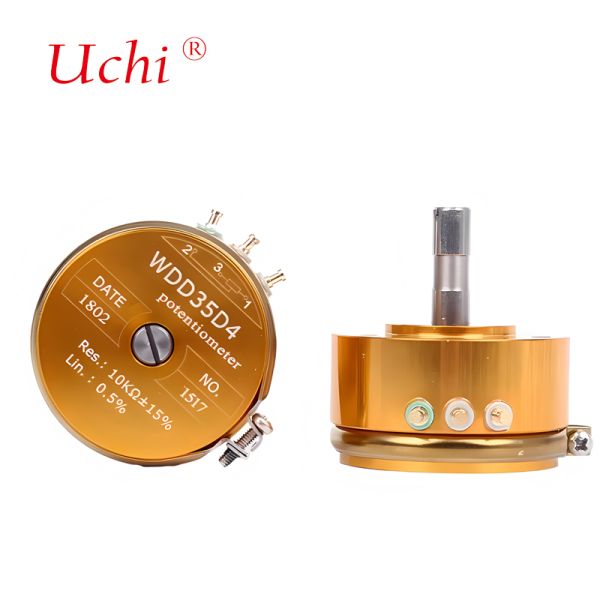

WDD35D4 Rotary Potentiometer Precision Conductive Plastic Potentiometer

WDD35D4 Rotary Potentiometer Precision Conductive Plastic Potentiometer
The WDD35 series products are made of hard aluminum alloy material as the outer shell, conductive plastic as the resistance material, and undergo molding and laser trimming for fine adjustment. The precious metal brush surge device, stainless steel high-speed bearings and other components ensure the high quality and performance of the products, with excellent performance such as long mechanical life, high resolution, smooth rotation, and low dynamic noise.
Product Features

The product adopts a hard anti-rust aluminum shell, a molded integrated conductive plastic matrix, and a stainless steel shaft matching high-speed bearing for precious metal brushes and current collector parts, which ensures that the product has excellent performance such as high linear accuracy, long mechanical life, high resolution and low dynamic noise

Specification Parameters
item
value
Model Number
WDD35D4
Type
Precision Potentiometer
Place of Origin
China
Brand Name
shixin
Technology
conductive plastic
Resistance
1k 2k 5k 10k
Resistance Tolerance
±15%
Rated Power
2W
Max. Operating Voltage
500V
Operating Temperature
-55℃~+125℃
Brand
Angle sensor
Power (Watts)
2W
Tolerance
±15%
Adjustment Type
Top
Diameter
36mm
Package / Case
metal
Rotation
360° continuous
Resistive Material
Conductive Plastic
Termination Style
PC Pin
Actuator Type
Knob
Actuator Diameter
0.248" (6.30mm)
Shaft Size
0.236" (6.00mm)
Number of Turns
1

Product Size


Application Areas

WDD35D4 is suitable for network communication equipment, instrument equipment, industrial machinery equipment, medical equipment, injection molding machines, crane torque control, valves, pedal testing, robotic arms, pan tilt control, papermaking machinery, textile machinery




product catalog


Manufacturer Information
We are a specialized factory with extensive experience in high-quality electronic component manufacturing:
  • Advanced production equipment
  • Professional R&D team
  • OEM/ODM capabilities
  • Strict quality control standards
Manufacturing facility for electronic components
Shipping & Support
We offer reliable global shipping solutions with comprehensive after-sales support:
  • Express Mail Service
  • DHL Express
  • UPS
  • FedEx
Product packaging and shipping process
Frequently Asked Questions
Are you a factory or trading company?
We are a factory offering direct pricing with professional technical support.
Could you provide samples?
Samples are available upon request after order placement.
Can your product be customized?
We accept OEM/ODM orders with flexible requirements.
What is your delivery time?
Delivery varies by quantity and model, with urgent requests accommodated when possible.
Do you offer after-sales service?
We provide comprehensive 24-hour support for all products.
