| Categories | Precision Potentiometer |
|---|---|
| Brand Name: | Uchi |
| Model Number: | RM063 |
| Certification: | SMC |
| Place of Origin: | Dongguan,Guangdong,China |
| MOQ: | 100pcs |
| Price: | Negotiable |
| Payment Terms: | T/T,paypal, Western Union,MoneyGram |
| Supply Ability: | 50000000pcs per Month |
| Resistance: | 100Ω--1M |
| Resistance Tolerance: | 20% |
| Rated power: | 0.5w |
| Size / Dimension: | 7*6.5mm |
| Mechanical rotation angle: | 235°±5° |
| Electrical rotation angle: | 215°±20° |
| Operating Temperature: | -10C~+70C |
| Max. Operating Voltage: | 50V |
| Company Info. |
| Guangdong Uchi Electronics Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

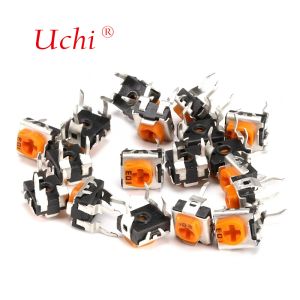

RM063 potentiometer is a commonly used electronic component with advantages such as high accuracy, good stability, small size, and convenient adjustment. In summary, the RM063 potentiometer is an excellent and widely used electronic component, and its advantages make it widely used in various circuits
Electronical Characteristics
| Nominal Resistance | 100Ω~1MΩ From 100Ω to 1MΩ |
| Resistance Tolerance | ±10%,±20%,±30% Optional |
| Residual Resistance | Max. 5% of Nominal Resistance Resistance, but under 30Ω |
| Resistance Taper | Linear (B) |
| Rated Power | 0.1 Watt |
| Operating Voltage | AC50V Max. |
| Rotational Life |
Max. ±15% change in resistance after 100 unloaded rotations |
| Load Life |
Max. ±5% change in resistance after 3 hours loaded |
| Insulation Impedance |
≥100MΩ (at 100V ac) |
Mechanical Characteristics
| Variable Rotation Angle |
270º (less ±20º) |
| Rotational Torque | 20~450.gf.cm From 20 to 450gf.cm |
| Stop-end Strength |
less 0.5Kgf.cm |
| Mechanical Strength |
Bakelite Base not to be broken down under a force of 1Kg |
Environmental Characteristics
| Operating Temperature | -10°C~+70°C From -10°C to +70°C |
| Temperature Characteristics | Resistance change within +5%~+30% after 5 hours at 70°C |
| Humidity Characteristics | Max. resistance change within 20% after 350 hours at 40° and R.H 90% |
Product size
This potentiometer is applied to small electronic,appliances,measurement and test equipment,alarms, switches, telecommunication equipment,alarm systems etc.
The RM063 precision adjustable potentiometer is widely used, mainly in the fields of power supply, home appliances, communication products, automotive products, digital products, instruments and meters
Safety protection and electric control products.
