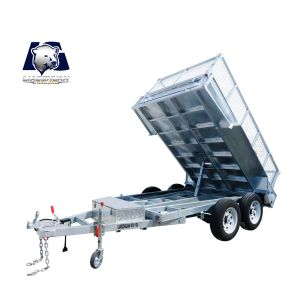

10x5 Tandem Axle Trailer Hydraulic Tipper Galvanized Box Trailer Corrosion Resistant

10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer

The 10×5 Tandem Axle Hydraulic Tipper Galvanised Box Trailer (3000kg ATM) is designed for efficient medium-duty transport. Its compact design features a powerful hydraulic tipping mechanism for easy unloading. Its hot-dip galvanized, fully welded body and chassis ensure durability and corrosion resistance.

Key features include high-strength hydraulic cylinders with hydraulic power components, dual 12′′ electric drum brakes, 50mm square solid axles, and 8-leaf leaf springs for enhanced stability and smooth traction. The trailer also features 1500mm tie rods, a lattice floor, removable front and rear doors, tie rods, and a steel toolbox. Optional 600mm/900mm removable cages are available. With internal dimensions of 3040mm x 1530mm x 300mm, it is ideal for construction, agriculture, and landscaping tasks.

Trailer dimensions:4600mm*2070mm*1480mm
Drawbar:100*50*3.75 ,1500 long
Internal dimensions: 3040mm*1530mm*300mm+600mm
Surface treatment: Hot-dip galvanizing
Fully Welded Body & Chassis: yse
Removable front and rear drop-down doors: yes
Color: Silver
Light: LED ADR light
Axis: 60 square steel bars
ATM: 3000kg
Rated load capacity: 1870kg
Weight of the skin: 1130kg
Guide wheel:8 inch
Patterned panel:2.3Pattern
Inclined fuselage:yes
Border:2.3Pattern
Cage: 40*40 square tube 63*60*4 grid
Spring: 8 pieces
Beam: 80*40*2.5
Tire: 185R15LT
Swing wheel: 8 inches, operable
Brake: 12-inch dual electric brakes
Plug:7 Pin, Flat
Optional toolbox:Aluminum

Liaozhuan Heavy Industry Machinery Co., Ltd., located in Guan County, Liaocheng City, Shandong Province, is an industrial enterprise specializing in trailer design and manufacturing. Adhering to the principles of "compliance first, quality first," we provide trailer solutions suitable for the global market—from lightweight single-axle trailers to specialized engineering semi-trailers—to meet the diverse needs of OEMs, dealers, and engineering projects.
