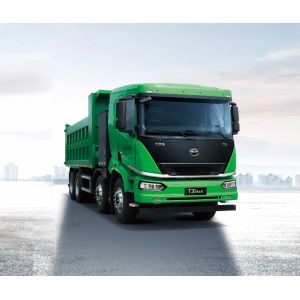

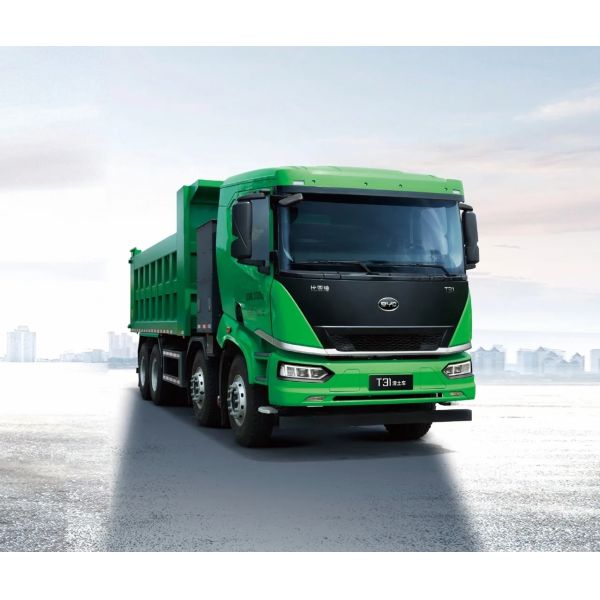

BYD T31 Electric Dump Truck with 424-650 kWh Battery 12/15/20 m³ Capacity and 285-450 km Range for Urban Construction

BYD T31 Description

The BYD T31 is a pure electric urban construction dump truck tailored for urban construction scenarios, integrating high efficiency, low carbon and practical configuration.

In terms of core performance, it has excellent power and endurance. The battery capacity covers multiple specifications of 424kWh, 529kWh, 605kWh and 650kWh, matching the pure electric driving range of 285km, 360km, 410km and 450km under CHTC-D working condition, which can meet the operation needs of different construction schedules. The drive motor is equipped with 280kW rated power and 430kW peak power, and the maximum climbing capacity reaches 42%, which can easily cope with the complex road conditions such as steep slopes in the construction site. In addition, the charging efficiency of the vehicle is outstanding, and the charging time from 30% to 80% is no more than 50-60 minutes, effectively reducing the waiting time for charging and ensuring the continuity of construction operations.

In terms of cab configuration, it balances comfort and practicality. The driver's seat supports 12-way adjustment, and is equipped with airbag and leather material, which can reduce the fatigue of drivers during long-term operation; The co driver's seat is 2-way manual adjustment, with leather material and backrest angle adjustment function. In terms of functional configuration, it is equipped with electric adjustment and electric heating exterior rearview mirror, LED front combination headlight and independent front fog lamp, which can ensure good vision in different weather conditions; One button start, 8-inch LCD instrument panel and cooling and heating air conditioning system with defogging function are standard, improving the convenience and comfort of driving.

In terms of intelligent and auxiliary configurations, it provides rich options on the basis of standard configuration. The rearview camera is a standard configuration to help drivers observe the rear situation when reversing; 4-way surround view, 360° surround view, intelligent monitoring terminal, driver fatigue monitoring (DDAW) and blind spot detection (BSD) are optional configurations. Users can select corresponding configurations according to actual operation needs to improve driving safety.

The maximum speed of BYD T31 is 89km/h, and the wheelbase is 2000+3200+1400mm. The overall dimensions are 9950/10000 × 2550 × 3320/3490mm, and the curb weight is 18500-20300kg. It is a practical pure electric construction vehicle that conforms to the development trend of low-carbon construction.

Note: "●" means standard configuration, "○" means optional configuration,
"/" means no such configuration. This data is for reference only and not for vehicle ordering; the final product shall prev
