| Categories | ADSS Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM/Customize |
| Model Number: | ADSS-72B1 |
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
| Place of Origin: | Guangzhou |
| MOQ: | 1km |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | 5-8 work days |
| Packaging Details: | wooden drum |
| Fiber type: | single mode or multi mode |
| Fiber count: | 72 Core |
| Color: | Black |
| Length: | 2km or customized length |
| Jacket material: | PE/HDPE/MDPE/AT |
| Name: | 72 Core ADSS Optical Fiber Cable |
| Strength member: | FRP(with PE if needed) Glass Yarn |
| Application: | Aerial,Overhead/ Direct Burial |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Outdoor SM G652D ADSS 72-Core Fiber Optic Cable – 100 Span
Description:

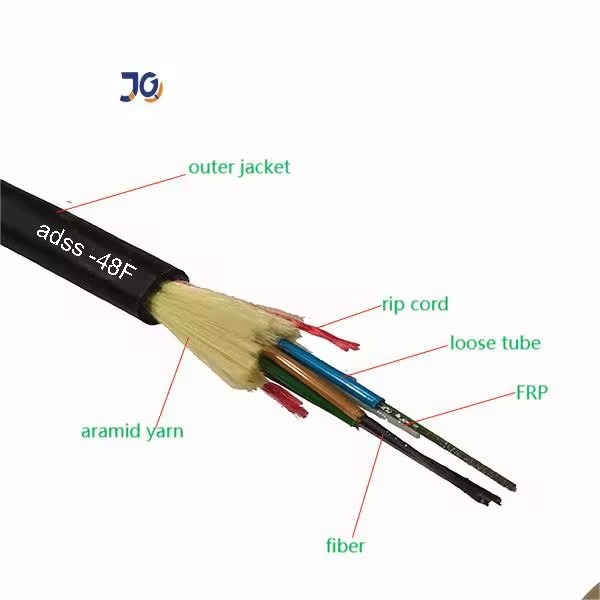

Loose-tube stranded ADSS cable with 250μm fibers in high-modulus plastic tubes, filled with water-resistant compound. Tubes are stranded around a FRP central strength member, covered with PE inner sheath, aramid yarns for reinforcement, and finished with PE or AT outer sheath.
Features:
Excellent mechanical and temperature performance
Hydrolysis-resistant high-strength loose tubes
Water-resistant filling compound protects fibers
Flexible and crush-resistant design
FRP central strength member
Fully filled cable core for watertight integrity
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Data
|
Span : 100m |
Cable type |
72core Single Jacket ADSS |
|
structural parameter |
Central strength components : FRP |
Diameter : 2.1mm |
|
Loose tube (jelly filled ) |
Outer diameter :1.8mm | |
|
Inner sheath PE |
Thickness : 0.9mm | |
|
outer sheath PE |
Thickness :1.8mm | |
|
Technical parameter |
outer diameter of Cable |
12.3mm |
|
cable cross-sectional area |
95.03 mm2 | |
|
Fiber model |
G.652D | |
|
Weight of cable |
145kg/km | |
|
Rated tensile strength (RTS) |
10 kn | |
|
Minmum allowed tension(MAT) |
4kn | |
|
EDS |
3.2kn | |
|
E-modulus |
12.1 kn/mm2 | |
|
Coefficient of thermal expansion |
1.9 10-6/°C | |
|
Cruss resistance |
Long term :1100 n/100mm | |
|
short term:2200 n/100mm | ||
|
Permission bent radius |
Long term (when running) 220 mm | |
|
Short term (when laying) 360 mm |
Structure and Technical Specifications ADSS-SJ(50-500m Span)
|
Ref.Outer Diameter (mm) |
Ref.Weight kg/km) |
Rec.DailyMax. Working Tension(kN) |
Max Allowable Working Tension [kN) |
Break Strength (kN) |
Strength Member CSA. (kN/mm2) |
Modulusof Elasticity CSA kNmm2)[ |
Heat Expansion Coefficient (X10-6/K) |
SuitableSpan Meter ABICP | ||||
|
PE |
AT |
| ||||||||||
|
12.5 |
125 |
136 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
|
13.0 |
132 |
142 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
|
13.3 |
137 |
148 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
|
13.6 |
145 |
156 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
|
13.8 |
147 |
159 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
|
14.5 |
164 |
177 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
|
14.9 |
171 |
185 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
|
15.1 |
179 |
193 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
|
15.5 |
190 |
204 |
9.0 |
26 |
|60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |
Application:
Suitable for aerial installation
Operating temperature: -40℃ to +70℃
Packaging:
Export wooden drum, standard length 1–4 km (custom lengths available)
Optional markings: company name, weight, fiber type, cable length
Test report included
FAQ:
Manufacturer or trader? – We are a manufacturer with 10 years of experience in fiber optic cables, drop cables, and patch cords. Factory located in Guangzhou.
Quality? – All fibers are tested before delivery. Free samples available.
Small orders? – Accepted; we support new projects.
Delivery time? – Typically 3–7 working days, depending on quantity.
OEM service? – Available; logo printing and custom ideas supported.
|
