| Categories | OPGW Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM/Customize |
| Model Number: | OPGW-24B1-86(87.6;55.8) |
| Certification: | ISO9001/CE/ROHS/FCC |
| Place of Origin: | Guangdong China |
| MOQ: | 5 km |
| Price: | 1680USD / km |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 KM Per day |
| Delivery Time: | 15 dyas |
| Packaging Details: | 1/2/3/4/5 km in one wooden drum |
| section of AS wire: | 68.8mm |
| section of AL tube: | 17.6mm |
| Fiber type: | Single mode G652D |
| Fiber count: | 24 48 Core |
| Installation: | power system |
| Fiber brand: | Corning/ YOFC or customerized |
| fiber type: | G652D G655 G657 |
| Cable Mode: | Ground Wire |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Main Functions
OPGW cables serve power communication systems, supporting relay
protection, automatic control, and data transmission. Installed
along high-voltage lines, they integrate optical communication and
grounding in one system.

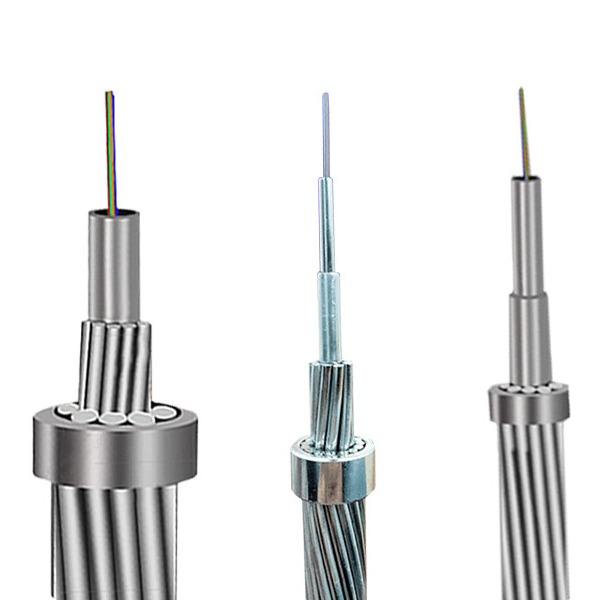

Structure
Made of two or three layers of aluminum-clad steel or aluminum
alloy wires, OPGW is designed for the mechanical and structural
demands of transmission lines.
Fiber Specifications
Fiber types: G652D, G655C, G657A1, 50/125, 62.5/125, OM3, OM4
Fiber count: up to 96 cores
Electrical & Application Range
For power lines ≤110KV and UHV systems
Suitable for new overhead transmission lines
Conducts short-circuit currents and provides lightning protection
Typical Design
Central aluminum-covered stainless steel tube ensures strong
mechanical performance, excellent fiber protection, and long-term
reliability.
OPGW with PBT Aluminum Tube
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-113(87.9;176.9) | 48 | 14.8 | 600 | 87.9 | 176.9 |
| OPGW-70(81; 41) | 24 | 12 | 500 | 81 | 41 |
| OPGW-66(79;36) | 36 | 11.8 | 484 | 79 | 36 |
| OPGW-77(72;36) | 36 | 12.7 | 503 | 72 | 67 |
OPGW Typical Designs of Stranded Stainless Steel Tube
Typical design for Double Layer:
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-89[55.4;62.9] | 24 | 12.6 | 381 | 55.4 | 62.9 |
| OPGW-110[90.0;86.9] | 24 | 14 | 600 | 90 | 86.9 |
| OPGW-104[64.6;85.6] | 28 | 13.6 | 441 | 64.6 | 85.6 |
| OPGW-127[79.0;129.5] | 36 | 15 | 537 | 79 | 129.5 |
| OPGW-137[85.0;148.5] | 36 | 15.6 | 575 | 85 | 148.5 |
| OPGW-145[98.6;162.3] | 48 | 16 | 719 | 98.6 | 162.3 |
Typical design for Three Layer:
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit (KA2s) |
| OPGW-232[343.0;191.4] | 28 | 20.15 | 1696 | 343 | 191.4 |
| OPGW-254[116.5;554.6] | 36 | 21 | 889 | 116.5 | 554.6 |
| OPGW-347[366.9;687.7] | 48 | 24.7 | 2157 | 366.9 | 687.7 |
| OPGW-282[358.7;372.1] | 96 | 22.5 | 1938 | 358.7 | 372.1 |
OPGW Typical Designs of Central AL-covered Stainless Steel Tube
Typical Design for Single Layer
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-80(82.3;46.8) | 24 | 11.9 | 504 | 82.3 | 46.8 |
| OPGW-70(54.0;8.4) | 24 | 11 | 432 | 70.1 | 33.9 |
| OPGW-80(84.6;46.7) | 48 | 12.1 | 514 | 84.6 | 46.7 |
Typical Design for Double Layer
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
| OPGW-143(87.9;176.9) | 36 | 15.9 | 617 | 87.9 | 176.9 |
OPGW Typical Designs of Central Stainless Steel Loose Tube
Typical design for Single Layer:
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-32(40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 |
| OPGW-42(54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 |
| OPGW-42(43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 |
| OPGW-54(55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 |
| OPGW-61(73.7;175) | 48 | 10.8 | 438 | 73.7 | 17.5 |
| OPGW-61(55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 |
| OPGW-68(80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 |
| OPGW-75(54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 |
| OPGW-76(54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 |
Typical design for Double Layer:
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-96(121.7;42.2) | 12 | 13 | 671 | 121.7 | 42.2 |
| OPGW-127(141.0;87.9) | 24 | 15 | 825 | 141 | 87.9 |
| OPGW-127(77.8;128.0) | 24 | 15 | 547 | 77.8 | 128 |
| OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 |
| OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 |
| OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 |
| OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 |
| OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 |
1. Are you a trading company or manufacturer?
We are a professional fiber optic cable manufacturer with over 10
years of experience, based in Guangzhou. Welcome to visit our
factory.
2. How do you ensure product quality?
All fibers are strictly tested before delivery. Free samples are
available for quality inspection after price confirmation.
3. Do you accept small orders?
Yes. Trial and small-volume orders are welcome to build long-term
cooperation.
4. What is the delivery time?
Normally 3–7 working days, depending on quantity. Production and
shipping start once payment is confirmed.
5. Do you offer OEM service?
Yes. OEM customization and logo printing are available according to
your design requirements.
|
