| Categories | High Current BMS |
|---|---|
| Brand Name: | Enerkey |
| Model Number: | EK-BM3R10S80A |
| Certification: | ISO9001/CE/ROHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 50pieces |
| Price: | $8.1-$9 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000pcs per day |
| Delivery Time: | 3-5days |
| Packaging Details: | Strong paper box +EVA Foam |
| Product Name: | 3S-10S 80A Lithium Battery BMS |
| Copper Thickness: | 2oz |
| Application: | RV energy storage |
| Board Thickness: | 1.6mm |
| Battery Type: | Li-ion/Lifepo4/Lto/SIB |
| Allowable Operating Voltage Range: | 0-30V |
| Rated Discharge Currenturrent: | 80A |
| Peak Starting Current: | 160A |
| Used For: | Lithium Battery Protection Board |
| Keywords: | 3S-10S BMS |
| Base Material: | FR-4 |
| Surface Finishing: | Lead-free spray tin |
| Product Size: | L77.5xW28xT5mm |
| Weight with Package: | 0.1kg |
| Company Info. |
| Shenzhen Juyi Science And Trade Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Enerkey Hardware 80A BMS 6s 80a 3s 4s 5s 6s 7s 8s 9s 10s 12v 24v 36v Lipo Lithium /Lifepo4 Battery Management System
Detailed Parameters
Item Details
Applicable Battery String Count: 3S - 10S Lithium Battery Pack
Continuous Discharge Current: 40A (Higher current versions can be
customized upon request)
Overcharge Protection Voltage: Single Cell 4.28V±0.02V
(Customizable)
Over-Discharge Protection Voltage: Single Cell 2.5V±0.05V
(Customizable)
Overcurrent Protection Value: 45A - 50A (Instantaneous)
Equalization Current: 80mA - 100mA (Per Cell)
Operating Temperature: -20℃ - 80℃

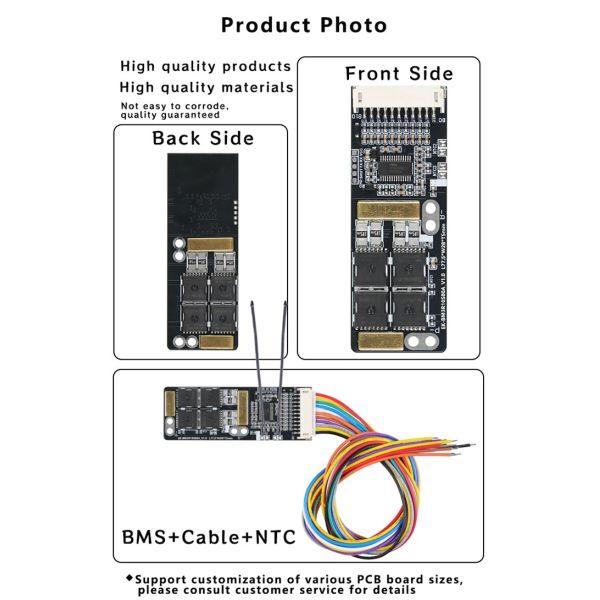

Protection Board Dimensions: Length × Width × Thickness = 77.5mm ×
28mm × 5mm (Specific dimensions may vary slightly depending on the
number of strings and customization requirements)
Interface Type: Standard battery interface and discharge interface,
compatible with common battery and device connections
Quality Assurance
Strict Material Selection: High-quality electronic components are selected, such as high-precision MOSFETs, resistors, and capacitors, to ensure the stable and reliable performance of the protection board. All components undergo rigorous quality testing and meet high industry standards.
**Exquisite Craftsmanship:** Utilizing advanced circuit board manufacturing processes and soldering techniques, the reliability and stability of circuit connections are guaranteed. Each protection board undergoes multiple meticulous processing steps and rigorous inspections to ensure
impeccable product quality.
**Comprehensive Testing:** During the production process, each protection board undergoes comprehensive functional testing, including overcharge, over-discharge, overcurrent, and short-circuit protection tests, as well as performance tests such as equalization charging and temperature management, ensuring that every protection board leaving the factory achieves optimal performance.
| Item type | Parameters | |||||||||
| 1 | Parameter Overview | Product Model | EK-BM3R10S80A | |||||||
| Product Size(mm) | L77.5*W28*T5 | |||||||||
| Product Weight(kg) | 0.1 | |||||||||
| Product Material | FR-4 / Lead-free spray tin | |||||||||
| Applicable battery type | Lifepo4 | Li-ion | Lto | SIB | ||||||
| Applicable battery string | 3S - 10S | 3S - 10S | 3S - 10S | 3S - 10S | ||||||
| Rated discharge current | 80A | 80A | 80A | 80A | ||||||
| Peak starting current | 160A | 160A | 160A | 160A | ||||||
| Item type | Trigger (time) | Trigger (time) | Trigger (time) | Trigger (time) | Trigger (time) | Trigger (time) | Trigger (time) | Trigger (time) | ||
| 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S |
| Overcurrent value | 40A/2S, disconnect charger to recover | |||||||||
| Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S | |||||||||
| Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S | |||||||||
| 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S |
| ①Overcurrent protection value | 80A/2S, disconnect load or activate charging | |||||||||
| ②Overcurrent protection value | 160A/0.5S, disconnect load or activate charging | |||||||||
| Short circuit protection value | 260A/128uS, disconnect load or charge activated | |||||||||
| Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S | |||||||||
| Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S | |||||||||
| 4 | Others | Standby current consumption | 25uA | |||||||
| Motherboard lock voltage | / | |||||||||
Wiring precautions:
1. Installing the protective board requires a certain amount of
technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad
position to the total negative terminal of the battery (the B- wire
should be soldered to a short and thick wire) and solder the wired
terminal to the battery pack first, and then insert the protective
plate.
3. The connection between the battery terminal B- and the
protection board terminal B- should be short and thick, otherwise
it will cause the protection board to charge and discharge in
advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international standards certification.
* We can provide you with factory price, Welcome you to visit our factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and batches?
*Our minimum order quantity is 1 piece, ODM customization is available.
* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard certification.
* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.
|
