PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder
PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder
Categories CNC Turning Center
Place of Origin: China
Brand Name: ShangJie PM
Certification: CE ISO certification
MOQ: 1
Packaging Details: The wooden case，Tin trunk ,Other seaworthy packing
Delivery Time: 45-60 days
Payment Terms: T/T,L/C,,Western Union
Supply Ability: 45-60 days
Structure: Slant Bed Lathe
Chuck: 8 in
Marketing Type: Ordinary Product
X-Axis Travel: 200mm
Machinery Test Report: Provided
Milling Head: (side)4 (nose)4
Tool Holder Size: 25x25mm
Spindle Nose: A2-5
Port: Any port in china
Spindle Bore Dia: Φ56mm
Year: new
Control System: FANUC
Dimensions: 2000mm x 1500mm x 1800mm
Spindle Nose Type: A2-6
Machine Weight: 5000kg
Contact Now
Company Info.
Hubei Shangjie Precision Machinery Manufacturing Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PT-Series CNC Gang Tool Lathe with HT300 Grade Cast Iron 8 in Chuck and 25x25mm Tool Holder

PT-Series CNC Gang Tool Flat Bed Lathe
The PT Series by ShangJie PM features compact, high-performance CNC lathes designed for precision turning in limited-space workshops or production lines. With gang-tool configurations and linear guideways, these machines provide excellent stability and fast tool change for high-efficiency small-part machining.
Key Features
  • Gang-tool layout reduces cycle time and tool switching delays
  • High-rigidity structure supports precision and repeatability
  • Ideal for small parts in high-volume production environments
  • Space-saving footprint with automation adaptability
  • Excellent for electronics, medical device manufacturing, and automotive parts
Construction Details
Casting Material: Machine bed is constructed with HT300 grade cast iron as a monolithic casting, processed through vibration aging and double tempering treatments to eliminate residual stresses. This ensures exceptional dimensional stability and long-term durability.
Bed Structure: The machine tool features a monoblock bed with a low center of gravity. Finite Element Analysis (FEM) optimizes the geometry and layout of reinforcing ribs in the cast components, maximizing bed rigidity for heavy-duty cutting operations.

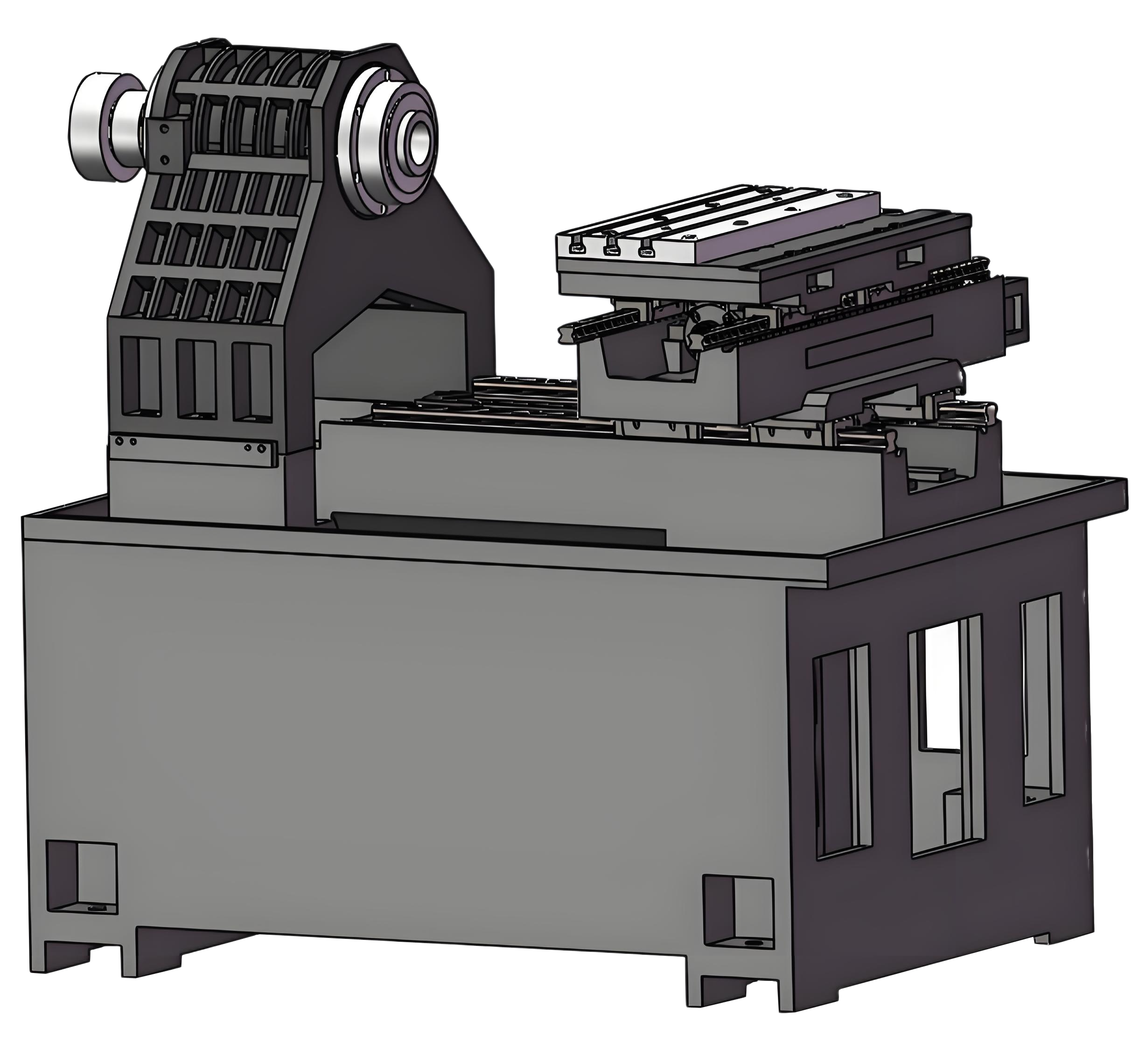

PT-Series CNC Gang Tool Lathe overview
Technical Specifications
Machine TypePT32
Max. swing diameter410mm
Max. machining diameter on the saddle120mm
Max. bar through diameter28mm
Spindle noseA2-4
Spindle motor power4KW
Spindle bore38mm
Max. spindle speed4000r/min
X axis travel300mm
Z axis travel270mm
X axis rapid feed speed25m/min
Z axis rapid feed speed25m/min
X axis Max. torque of motor18N.m
Z axis Max. torque of motor18N.m
Pneumatic clampingSpring collet
Manual chuck5"
Hydraulic clamping Chuck Size5"
Tool holder4-station electric knife holder
OD tool size16x16mm
Machine size (L x W x H)1530x1320x1580mm
Standard weight1430KG
Expandable Functions
Modular Power Head: Customized power head configurations can be added according to processing requirements, enabling drilling, milling, tapping, and other feature machining operations.
Modular power head configuration Power head close-up Power head in operation
Turn-Mill Capability: The machine can be configured with a servo turret or customized with multiple power heads to deliver high-end turning-milling capabilities for complex machining demands.
Turn-mill configuration Turn-mill operation Turn-mill close-up Turn-mill workpiece example
Frequently Asked Questions
Manufacturer or trading company? Where is the company located?
We are a professional manufacturer of CNC lathes, located in Shiyan City, Hubei Province.
How long have you been involved in this market?
We have been engaged in the auto parts industry for 10 years.
Can you provide a product catalog?
Contact our business manager, we will send the product catalog you need to your mailbox.
About the terms and conditions of payment.
When you quote, we will confirm with you the trading method (FOB, CIF, CNF, etc.). For mass production we typically require 30% advance payment with balance due upon bill of lading. Payment methods are primarily T/T, though L/C is also acceptable.
Product after-sales service scope and service period?
We offer a one-year warranty and 24-hour lifetime technical support.
