| Brand Name: | SINOMEMB |
| Model Number: | SNU-HO-2-Z160L |
| Certification: | NSF |
| Place of Origin: | China |
| MOQ: | 5 |
| Packaging Details: | Standard export packaging |
| Core Components: | MBR |
| Product name: | hollow fiber ultrafiltration membrane, ultrafiltration system, PVC Hollow fiber UF membrane module |
| Pore size: | customized., from 1μm to 0.05μm, 0.01micron, 1.0μm, 0.2μm |
| Usage: | Waste water treatment, , Liquid Filter, remove bacterias, Purification |
| Module: | Out-inside |
| Nominal Pore Size: | 0.03μm |
| Size: | 160×1810mm |
| Membrane Material: | PVDF |
| Surface Area: | 40m2 |
| Company Info. |
| Sinomemb Environment Technology (beijing) Co., |
| Verified Supplier |
| View Contact Details |
| Product List |

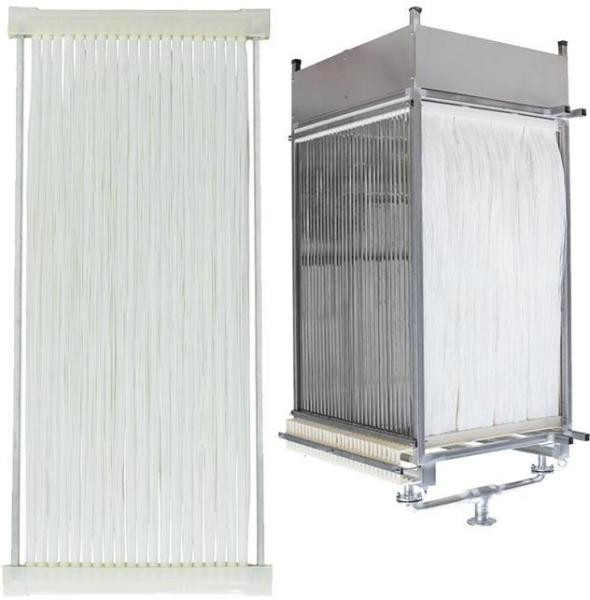

Re-enforced Hollow Fiber Curtain MBR Membranes
Membrane material: PVDF with re-enforced material inside.
Membrane pore size: 0.01um (remove suspendid solids and bacteria to achieve SS<=5mg/L, turbidity < =1NTU)
MWCO: 30 000 ~ 100 000dalton

Partial OEM model parameters of SINOMEMB ® UF membrane
| UF specifications and models | Membrane material | Operation mode | Membrane element size (mm) | Effective membrane area (㎡) | Nominal filter pore size (μm) |
| SN U-HO-2-Z250 | PVDF | outside-in | Φ250*1715 | 75 | 0.03 |
| SNU-HO-2-Z225L | PVDF | outside-in | Φ225*1760 | 60 | 0.03 |
| SNU-HO-2-Z160L | PVDF | outside-in | Φ160*1810 | 40 | 0.03 |
Note: The element model (membrane performance, appearance size) not mentioned can be customized according to the order quantity.
|
