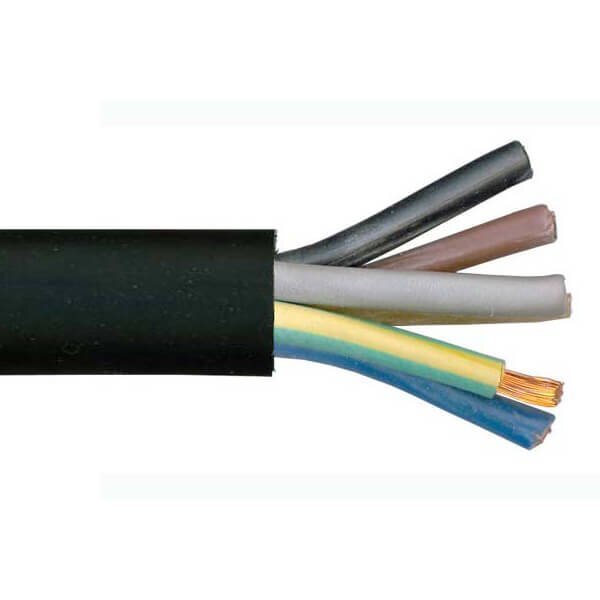

Corrosion Resistance Rubber Jacket Stranded Copper Conductor EPR
Insulation Power Cable Flexible Electric Wire for Outdoor For
Complex and Harsh Electrical Connection Scenarios
Rubber Sheathed cables are movable cables made with rubber as the
insulating and sheathing material. They are characterized by their
softness and durability, and are widely used in various electrical
equipment.
This Cable can be classified into three types based on the
mechanical forces they are subjected to: light, medium, and heavy.
The long-term allowable operating temperature of cables is
generally not more than 65℃. Rubber-covered cables can withstand
mechanical pressure and deformation, have good tensile strength and
impact resistance, and perform more persistently and stably in
high-frequency bending and twisting, making them suitable for
equipment that needs to be frequently moved or replaced.
Product Specifications
- Conductor: Stranded Copper Core - multi-strand structure enhances flexibility
for bending, dragging and threading
- Insulation: EPR (Ethylene Propylene Rubber) - excellent insulation with oil
and moisture resistance
- Sheath: Rubber with wear resistance, oil resistance and weather resistance
properties
- Configuration: Single Core, 2cores, 3cores, 4cores, 5cores
- Voltage Rating: 450/750V
- Temperature Range: -30°C to +70°C (90℃ max)
- Size: 6mm, 10mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm and more
- Filler: Rope
- Special Features: Movable, Flexible, oil resistance, wear resistance, small bending
radius, tensile resistance
Applications
This flexible rubber cable offers superior wear resistance, oil
resistance, weather resistance, high temperature resistance, and
mechanical damage protection, making it ideal for various complex
electrical environments.
- Industrial sector: Power supply for mobile devices including construction machinery
(excavators, cranes, concrete pump trucks) and industrial
automation equipment (machine tools, conveyor belts, robot drag
chain systems)
- Agricultural sector: Power lines for agricultural machinery (harvesters, tractors) and
agricultural electrification scenarios
- Construction sector: Temporary power distribution for construction site equipment,
lighting, and vibration rods
- Special environments: Port/ship shore power connections, outdoor installations (street
lamps, billboards), high-temperature areas (metallurgical furnaces,
boiler rooms with silicone rubber sheath variants)
Technical Characteristics
Temperature Rating
- Fixed: -30°C to +60°C
- Fixed protected installations: +85°C
- Flexed: -15°C to +60°C
- Insulation tested to +90°C
Minimum Bending Radius
- Fixed: 4 x overall diameter
- Flexed: 6 x overall diameter
| Product Name | H07RN-F Rubber cable |
|---|
| Brand | Ke Fei Te |
|---|
| Model | YC/H07RN-F |
|---|
| Conductor Material | pure copper conductor (Multiple strands of fine copper wire twisted
together) |
|---|
| Insulation Material | EPR(Ethylene-Propylene Rubber |
|---|
| Jacket | General Rubber Sheath |
|---|
| Color | Black |
|---|
| Shape | Round wire |
|---|
| Feature | Flexible, oil resistance, wear resistance, corrosion
resistance,soft and tensile resistance |
|---|
Company Profile
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cables for 40
years. As a large enterprise in cable production, we manufacture
various electrical cables including mining cables, rubber sheath
cable series, and shield machine special high voltage cables. Our
flexible cable series benefits from over 20 years of expertise,
with capability to customize special cables according to customer
requirements.
Our products are globally distributed and widely used in coal
mines, power stations, transportation and other fields, recognized
for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best
quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer
requirements?
A: Yes, we can customize the product according to your
requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always
final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as
possible. So we can send you the offer at the first time. For
designing or further discussion, it is better to contact us with
Skype / email / phone, in case of any delays.
Flexible Movable Oil Resistant H07RN-F Rubber Sheathed Cable For Mobile Equipment
