1700 Ordm C Electric Atmosphere High Temperature Box Furnace Heat Treatment 1600kg

Categories High Temperature Box Furnace
Model Number: HBF80-17NH
Range of Applications: Industrial
Type: Electric Holding Furnace
Usage: Sintering
Fuel: Electric
Effective Chamber Dimensions: 400*400*500mm(W*H*D)
Atmosphere: Nitrogen/Hydrogen
Transport Package: Wooden Package
Specification: 1570*2050*1830mm (W*H*D)
Trademark: Chitherm
Origin: China
HS Code: 8514101000
Supply Ability: Customized
Customization: Available
Certification: ISO
Place Style: Vertical
Place of Origin: China
Brand Name: Chitherm
MOQ: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1700 Ordm C Electric Atmosphere High Temperature Box Furnace Heat Treatment 1600kg

1700°C Electric Atmosphere High Temperature Box Furnace Heat Treatment 1600kg
Product Specifications
AttributeValue
Range of ApplicationsIndustrial
TypeElectric Holding Furnace
UsageSintering
FuelElectric
Effective Chamber Dimensions400*400*500mm(W*H*D)
AtmosphereNitrogen/Hydrogen
Transport PackageWooden Package
Specification1570*2050*1830mm (W*H*D)
TrademarkChitherm
OriginChina
HS Code8514101000
Supply Ability50 Sets/Year
CustomizationAvailable
CertificationISO
Place StyleVertical
Product Description

The 1700°C HBF80-17NH Type Temperature Atmosphere Box Furnace features an effective chamber size of 400×400×500mm (W×H×D), designed for high-temperature industrial applications.

Applications

This furnace is ideal for:

  • High-temperature sintering of HTCC packaging shells in nitrogen + wet hydrogen atmosphere
  • Sintering of zirconia, alumina, oxygen sensors, and ITO targets in air atmosphere
Technical Specifications
Rated Temperature: 1600°C
Maximum Temperature: 1700°C
Heating Method: U-shaped molybdenum coil
Temperature Control Stability: ±1°C with PID self-tuning
Temperature Uniformity: Better than ±5°C
Thermocouple Type: B Type
Max Heating Power: 25kW
Insulation Power: ≤15kW
Heating Rate: RT-1000°C ≤5°C/min, 1000-1600°C ≤2°C/min
Surface Temperature Rise: <35°C
Weight: Approximately 1600kg

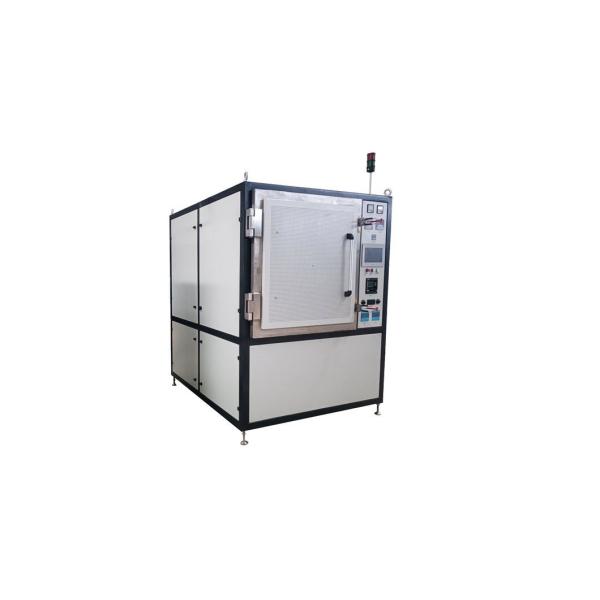

1700°C HBF80-17NH Type High-Temperature Atmosphere Box Furnace exterior view Close-up of 1700°C HBF80-17NH Type furnace chamber and controls
Delivery List
ItemNoteQTY
Basic Compositions
Furnace1 PC
Certificates of InspectionFurnace and major purchased components1 Set
Technical DocumentsFurnace specifications, technical documents of major components1 Set
Key Parts
Heating ElementsMolybdenum Coil1 Set
ThermocoupleWatlow, THERMOWAY, B Type1 PC
Temperature ControllerCHINO1 Set
MonitorProface 10" touch screen1 Set
Vacuum PumpVALUE, 100m³/h1 Set
Oxygen AnalyzerCHANG'AI1 Set
Mass FlowmeterHORIBA2 Sets
Flow IndicatorHORIBA2 Sets
Dew Point ProbeVAISALA1 Set
Spares
Heating ElementsMolybdenum Coil1 PC
Facility Requirements
  • Environmental conditions: Temperature 0-40°C, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
  • Process air conditions: Nitrogen (purity 99.999%), Hydrogen (purity 99.99%) with specified pressure and consumption rates
  • Power air source: Clean, dry, oil-free compressed air (0.4-0.8Mpa)
  • Water inlet: 0.1-0.3Mpa, clean, no corrosion (2-5L/min flow)
  • Ventilation system: Non-contact access to user pumping system (>10m³/h capacity)
  • Power conditions: >35kVA, 3 phase 5 line, 220/380V, 50Hz
  • Installation site: Minimum 2500×3000×2500mm (W×H×D), >7m² area
1700°C HBF80-17NH Type furnace operational view showing heating elements
