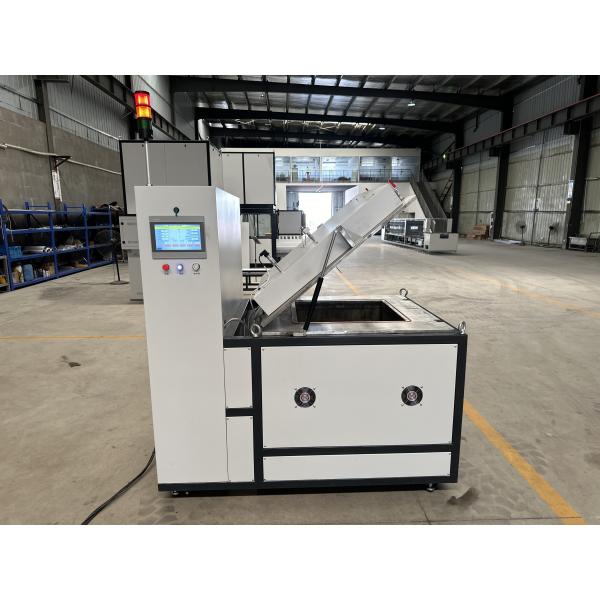

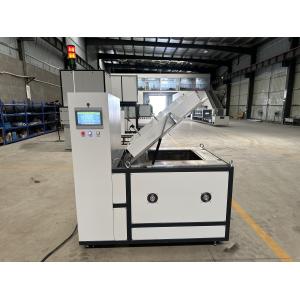

Precision CVD Melting Furnace for Chemical Vapor Deposition

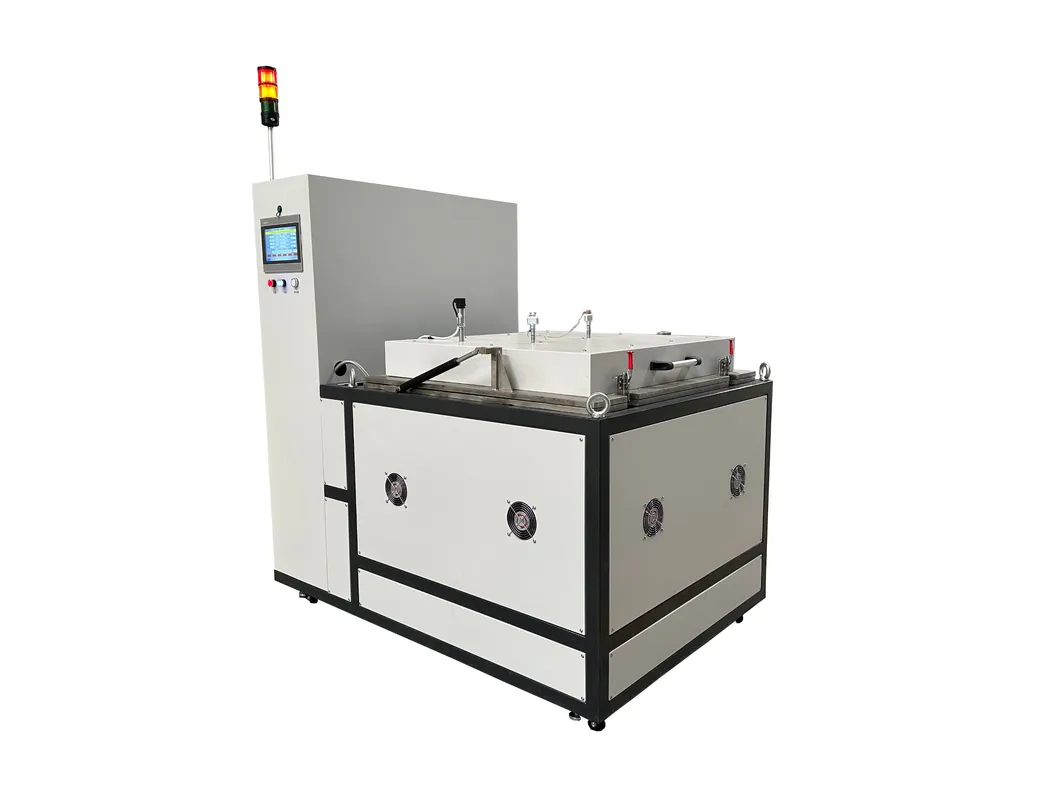

The MBF100-10 Medium-temperature Clean Chamber Furnace is designed for high-temperature heat treatment processes of electronic devices, electronic ceramics, and similar products.

• Rated Temperature: 900ºC
• Maximum Temperature: 1000ºC
• Inner Liner Material: Fused Quartz
• Effective Size: 450×450×500mm (Width×Height×Depth)
• Heating Rate: ≤10ºC/min
• Heating Element: FEC Ceramic Fiber Heating Plate (four-side heating)
• Temperature Control Stability: ±1ºC with PID parameter self-tuning
• Temperature Uniformity: ±5ºC at 900ºC (empty furnace)
• Thermocouple Type: K Graduation
• Maximum Heating Power: 16kW
• Surface Temperature Rise: <35ºC
• Equipment Weight: Approximately 450Kg

• Environment: 0-40ºC, ≤80% RH, no corrosive gas or strong airflow
• Gas Source: Clean, dry, oil-free compressed air/oxygen (0.2-0.4 MPa)
• Ventilation: Extraction capacity >10 m³/h
• Ground: Level surface with >500Kg/m² bearing capacity
• Power: >22kVA, 3-phase 5-wire (220/380V, 50Hz)
• Installation Space: Minimum 2000×2000×3000mm (W×H×D)
