Industrial CVD Nitrogen Atmosphere Furnace 1000 Ordm C

Categories High Temperature Box Furnace
Model Number: MBF100-10
Place of Origin: China
Brand Name: Chitherm
MOQ: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
Supply Ability: 50 Sets/Year
Range of Applications: Industrial
Type: Electric Holding Furnace
Usage: Ceramic Sintering
Fuel: Electric
Atmosphere: Nitrogen
Effective Chamber Dimensions: 640*640*250mm(W*H*D)
Transport Package: Wooden Packaging
Specification: 1200*1200*1500mm
Trademark: Chitherm
Origin: China
HS Code: 8514101000
Customization: Available
Certification: ISO
Place Style: Vertical
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial CVD Nitrogen Atmosphere Furnace 1000 Ordm C

Industrial CVD Electric Holding High Temperature Box Furnace 1000°C
Product Specifications
AttributeValue
Range of ApplicationsIndustrial
TypeElectric Holding Furnace
UsageCeramic Sintering
FuelElectric
AtmosphereNitrogen
Effective Chamber Dimensions640*640*250mm (W*H*D)
Transport PackageWooden Packaging
Specification1200*1200*1500mm
TrademarkChitherm
OriginChina
HS Code8514101000
Supply Ability50 Sets/Year
CustomizationAvailable
CertificationISO
Place StyleVertical
Technical Specifications
MBF100-10 Type Chemical Vapor Deposition Furnace
  • Rated Temperature: 750°C
  • Maximum Temperature: 1000°C
  • Heating Zone Dimensions: 770 × 770 × 300 mm (W × D × H)
  • Effective Dimensions: 640 × 640 × 250 mm (W × D × H)
  • Outer Chamber Material: SUS310S
  • Inner Liner Material: Fused Quartz
  • Product Size: Φ120
  • Equipment Capacity: 16 substrates per batch
  • Maximum Heating Power: 16 kW
  • Heating Method: Bottom + Four Sides (Five-Sided Heating)
  • Temperature Control Points: Bottom + Side, 2 points in total
  • Thermocouple Type: K-Type
  • Heating Rate: ≤8°C/min
  • Heating Elements: FEC Ceramic Fiber Heaters
  • Furnace Door Opening Method: Top-Opening Design
  • Temperature Control Stability: ±1°C
  • Temperature Control Instrument: Imported PID Controller with Auto-Tuning Function
  • Program Steps: 20 steps
  • Alarm and Protection: Over-temperature, thermocouple breakage, and other audible/visual alarms, with over-temperature power-off protection
  • Surface Temperature Rise: <35ºC
  • Weight: about 500kg
  • Furnace Dimensions: about 1200×1200×1500mm (W×H×D)
  • Appearance Color: light gray
MBF100-10 CVD Furnace Box Furnace showing industrial design with light gray exterior
Delivery List
ItemNoteQTY
Basic Compositions
Furnace1 unit
Certificates of InspectionFurnace and major purchased components1 Set
Technical DocumentsFurnace specifications, technical documents of major purchased components, etc1 Set
Key Parts
Mass Flow Controller (MFC)Yamatake or HORIBA4 Set
Touch screen1 PC
Temperature Controller1 Set
FEC Heater1 Set
Quartz Liner1 Set
Spares
SSR1 PC
Facility Requirements
  • Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
  • Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m²
  • Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz (according to local situation)
  • Installation site: 1500mm×1500mm×3000mm (W×H×D), installation area greater than 2.5m²

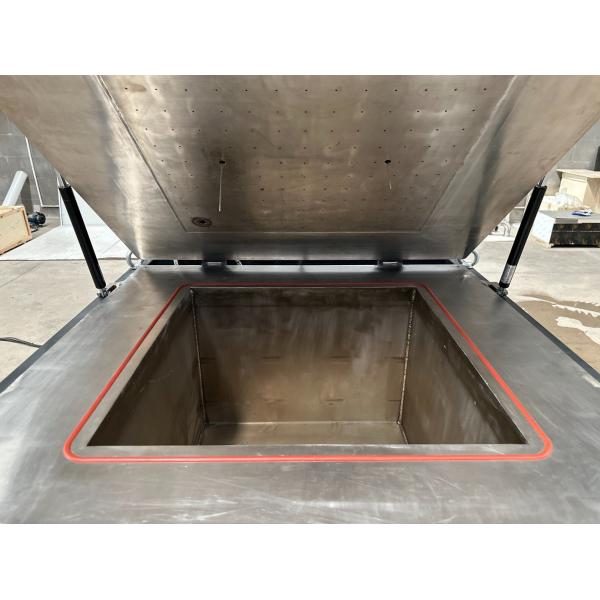

MBF100-10 CVD Furnace Box Furnace interior view showing heating chamber and components
