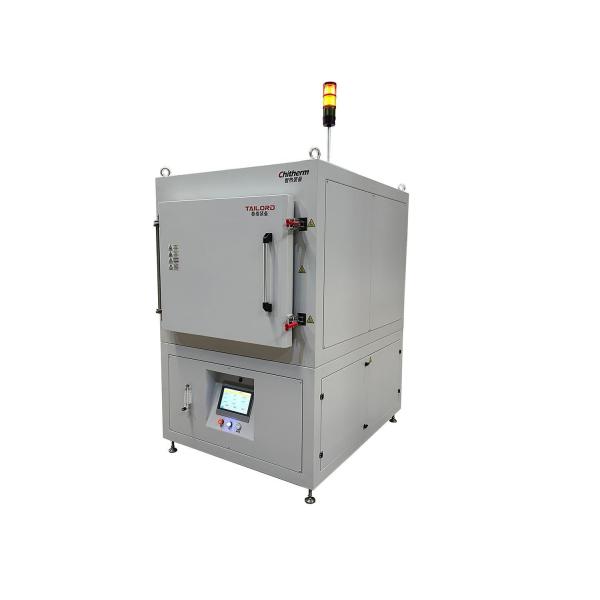

24kW Rubber Removal Hot Air Drying Oven Industrial Muffle Furnace

Chitherm Hrf216-07 Hot Air Rubber Removal Furnace with Effective Chamber Dimensions 600*600*600mm

Mainly used for binder burning out (BBO) process of electronic components and ceramic substrates.

• Rated Temperature: 600ºC
• Maximum Temperature: 650ºC
• Effective Dimensions: 600 × 600 × 600mm (W×H×D)
• Heating Method: Stainless Steel Heater
• Process Atmosphere: Air
• Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
• Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
• Thermocouple: Type K
• Temperature control points: 1
• Temperature measurement points: 1 point
• Process Steps: 4 × 16 steps
• Exhaust: One exhaust port on top
• Alarm System: Over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
• Maximum Heating Power: 24kW
• Insulation Power: ≤ 12kW
• Surface Temperature Rise: ≤ 35ºC
• Weight: about 1000kg
• Furnace Dimensions: about 1300×1710×1800mm (W×H×D)
• Appearance Color: light gray

Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance.

Clean compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3-7m3/h.

Non-contact access to the user pumping system, pumping capacity greater than 10m3/h.

Level, no obvious vibration, bearing capacity >300Kg/m2.

Capacity greater than 32kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz (according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green.

2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m2.
