500Ordm C Vertical Nitrogen Hot Air Drying Oven For Industrial OEM

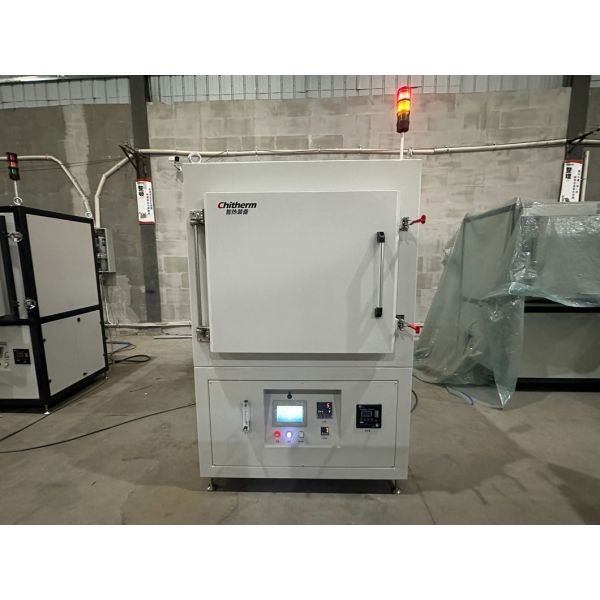

The Chitherm 500ºC HRF216-05N Nitrogen Oven is designed for ceramic drying applications with precise temperature control system. Its vertical design with dimensions of 1350×1750×1950mm (W×H×D) makes it ideal for industrial OEM applications.

Primarily used for binder burning out (BBO) process of electronic components and ceramic substrates.

• Rated Temperature: 350ºC
• Maximum Temperature: 500ºC

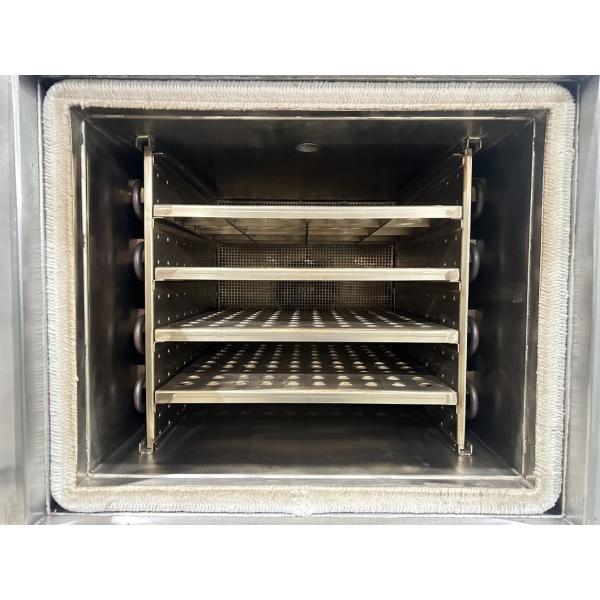

• Effective Working Dimensions: 600 × 600 × 600mm (W×H×D)
• Heating Method: Stainless Steel Heater
• Process Atmosphere: Nitrogen

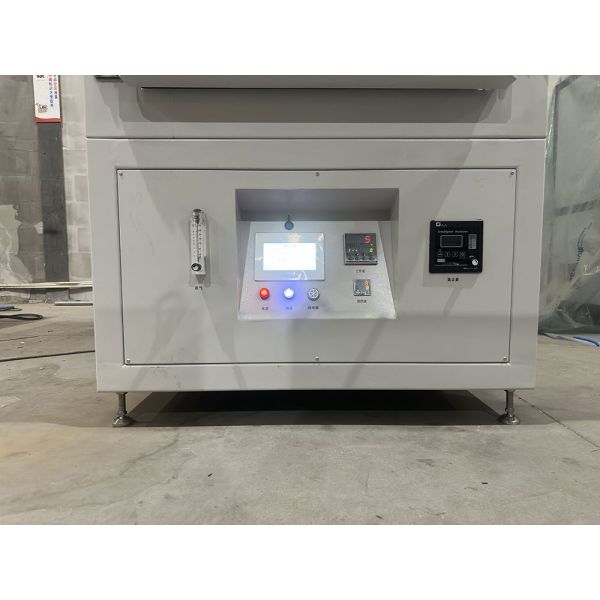

• Temperature Control Stability: ±1ºC with PID parameter self-tuning
• Temperature Uniformity: Better than ±5ºC (tested at 400ºC after 1 hour insulation)
• Thermocouple: Type K
• Temperature Control Points: 1
• Temperature Measurement Points: 1
• Process Steps: 4 × 10 steps
• Exhaust System: One exhaust port on top
• Alarm System: Sound and light alarms for over-temperature, thermocouple failure, and other abnormal conditions
• Maximum Heating Power: 18kW
• Insulation Power: ≤ 12kW
• Surface Temperature Rise: ≤ 35ºC
• Weight: Approximately 900kg
• Furnace Dimensions: Approximately 1350×1750×21950mm (W×H×D)
• Appearance Color: Light gray

• Environmental conditions: Temperature 0-40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
• Process air conditions: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, gas consumption 10m³/h
• Ventilation system: Non-contact access to user pumping system with capacity >15m³/h
• Ground requirements: Level surface, no obvious vibration, bearing capacity >300Kg/m²
• Power conditions: Capacity >24kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
• Installation site: Minimum 2000mm×3000mm×3000mm (W×H×D), installation area >6m²
