Electric Metal Hardening Furnace Hydrogen Controlled Atmosphere Chamber

Categories Atmosphere Box Furnace
Model Number: MBF22 - 10N
Range of Applications: Industrial
Type: Electric Holding Furnace
Usage: Drying
Fuel: Electric
Atmosphere: Nitrogen
Effective Chamber Dimensions: 330* 200* 330mm(W*H*D)
Rated Temperature: 850°c
Maximum Temperature: 1000°c
Transport Package: Wooden Packaging
Specification: 1300*1900*1160mm(W*H*D)
Trademark: Chitherm
Origin: China
HS Code: 8514101000
Supply Ability: Customized
Customization: Available
Certification: ISO
Place Style: Vertical
Place of Origin: China
Brand Name: Chitherm
MOQ: 1
Price: Negotiable
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: Customized
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Electric Metal Hardening Furnace Hydrogen Controlled Atmosphere Chamber

Electric Metal Hardening Furnace Hydrogen Controlled Atmosphere Chamber
Product Overview

The MBF22-10N Medium Temperature Atmosphere Chamber Furnace is designed for controlled atmosphere applications in industrial and research settings. This electric furnace features precise temperature control and nitrogen atmosphere capabilities for specialized hardening processes.

Key Specifications
Model: MBF22-10N
Rated Temperature: 850°C
Maximum Temperature: 1000°C
Effective Chamber Size: 330 × 200 × 330mm (W × H × D)
Atmosphere: Nitrogen (O₂ content <20ppm)
Temperature Uniformity: ±3°C
Power: 12kW
Technical Features
  • Precision temperature control with ±1°C accuracy
  • Real-time oxygen monitoring with micro-oxygen analyzer
  • Pressure detection with differential pressure gauge
  • Silicon carbide heating elements in ceramic tubes
  • Advanced safety features including over-temperature alarms
  • Programmable control with 4 × 16 steps capability
  • Double-layer saggar loading system with SiC roller support
Equipment Structure

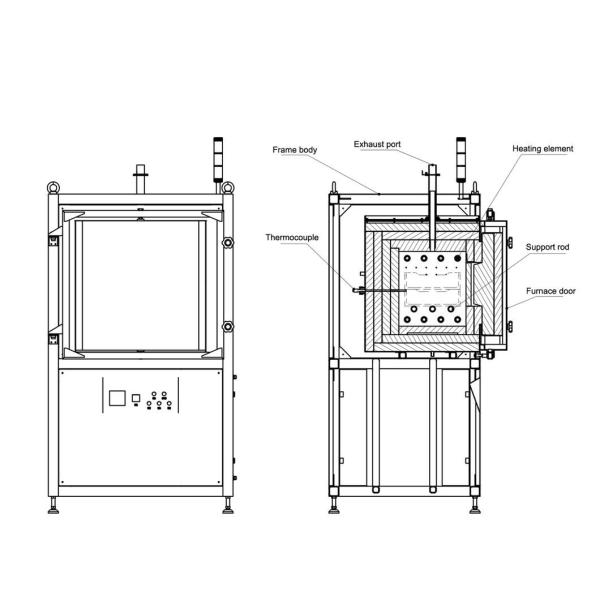

MBF22-10N Medium Temperature Atmosphere Chamber Furnace structure diagram
Figure 1: Schematic Diagram of the Equipment Structure
Standard Configuration
ComponentDescriptionQuantity
Main Furnace UnitComplete furnace assembly1 set
Temperature ControllerHigh-precision controller (comparable to Shimaden, Azbil)1 unit
Oxygen AnalyzerMicro-oxygen monitoring system1 unit
Spare PartsSilicon carbide rods2 pieces
Additional Images
MBF22-10N furnace exterior view MBF22-10N furnace control panel detail MBF22-10N furnace interior chamber
Product Attributes
Range of ApplicationsIndustrial
TypeElectric Holding Furnace
FuelElectric
Transport PackageWooden Packaging
TrademarkChitherm
CertificationISO
CustomizationAvailable
