UV-LED Flatbed Inkjet printer Mimaki UJF-6042MKII e

Categories Mini Flatbed UV Printer
Brand Name: Mimaki
Model Number: UJF-6042MKII e
Certification: CE
Place of Origin: Japan
MOQ: Negotiable
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10 SET Per 1 month
Delivery Time: 7-15 Working Days
Packaging Details: Standard Packaging
Printhead: On-demand piezo printhead (4 printheads arranged in a staggered line)
Print resolution: Maximum: 1200 x 1200 dpi
Maximum printable area: Width:610mm Length:420mm (A2 size)
Ink: Type/Color: LH-100 (C, M, Y, K, Lc, Lm, W, Cl) LUS-120 (C, M, Y, K, Lc, Lm, W, Cl) LUS-150 (C, M, Y, K, W) PR-200 (Primer);Packaging:LH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle LUS-150: 1 L bottle
Media: Thickness 153 mm (6 in) or less;Weight 8 kg (17.7 lb) or less
Certifications: VCCI class A / FCC class A / ETL IEC 62368-1 / CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM
Interface: Ethernet / USB2.0
Noise level: Standby mode: 55dB or less (FAST-A, measured1 m away from the source) Continuous operation: 65 dB or less Discontinuous operation: 70 dB or less
Power supply: Single-phase AC100-240V, ±10%, 50/60Hz ±1Hz
Power consumption: 1,000W or less
Operational environment: Temperature 20 - 30 degC (68 - 86 degF);Humidity 35 - 65%Rh (Non condensing);Recomended Temperature 20 - 25 degC (68 - 77 degF);Temperature change ±10 degC (±50 degF) /h or less;Dust level Equivalent to a general office floor level
RIP software: RasterLink7 (Bundled)
Dimensions (W × D × H) *1: 1,665 mm × 1,290 mm × 856 mm (65.6 in × 50.8 in × 33.7 in)
Weight: 150 kg (330.7 lb)
product name: Flatbed UV Printer
Brand: MIMAKI
feature: High precision
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

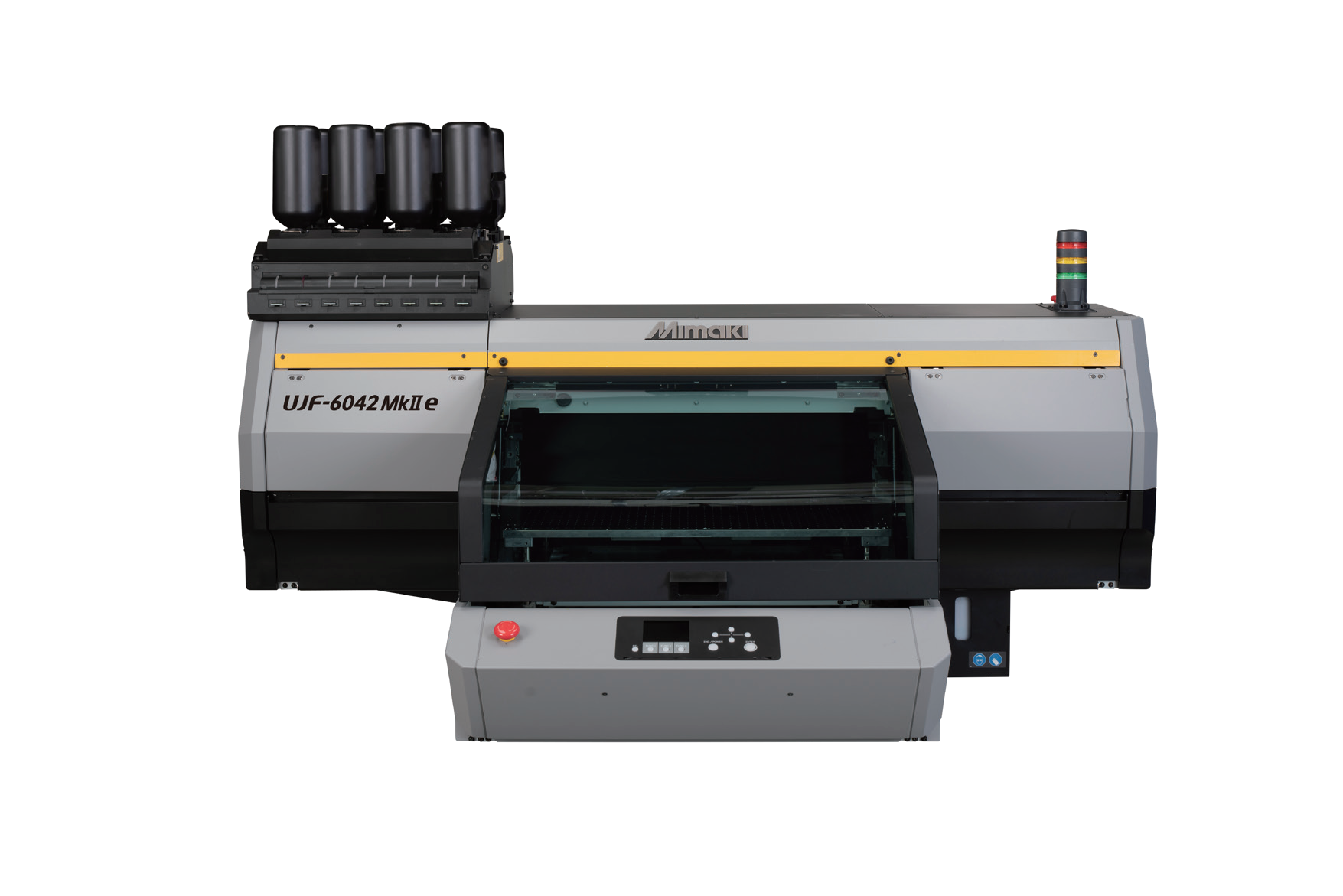

UV-LED Flatbed Inkjet printer Mimaki UJF-6042MKII e

Mimaki UJF-6042MKII e UV-LED Flatbed Inkjet printer

Creating Unlimited Originality


The new UJF-6042MkII e is the successor model to the UJF-6042MkII.

Supports A2 size & 153 mm height.
UJF-6042MkII e is a flatbed UV inkjet printer that has further improved image quality and machine stability, while maintaining the operability that was highly acclaimed in the current model.

  • “MFD2 (half-toning)” support for improved image quality.
  • Incorporation of the reliable Mimaki technology.
  • Support for “MDL commands” achieves automation and labor saving of printing process such as workpiece transfer.
  • “RasterLink7" enables numbering and variable data insertion printing (Variable print function).
  • The optional deodorizing unit efficiently removes odors.

Specifications


UJF-6042MkII e
PrintheadOn-demand piezo printhead
(4 printheads arranged in a staggered line)
Print resolutionMaximum: 1200 x 1200 dpi
Maximum printable areaWidth:610mm
Length:420mm (A2 size)
InkType/ColorLH-100 (C, M, Y, K, Lc, Lm, W, Cl)
LUS-120 (C, M, Y, K, Lc, Lm, W, Cl)
LUS-150 (C, M, Y, K, W)
PR-200 (Primer)
PackagingLH-100, LUS-120, PR-200: 250 ml bottle / 1 L bottle
LUS-150: 1 L bottle
MediaThickness153 mm (6 in) or less
Weight8 kg (17.7 lb) or less
CertificationsVCCI class A / FCC class A / ETL IEC 62368-1 /
CE Marking (EMC, Low voltage, Machinery directive, and RoHS) / CB / REACH / Energy Star / EAC / RCM
InterfaceEthernet / USB2.0
Noise levelStandby mode: 55dB or less (FAST-A, measured1 m away from the source)
Continuous operation: 65 dB or less
Discontinuous operation: 70 dB or less
Power supplySingle-phase AC100-240V, ±10%, 50/60Hz ±1Hz
Power consumption1,000W or less
Operational environmentTemperature20 - 30 degC (68 - 86 degF)
Humidity35 - 65%Rh (Non condensing)
Recomended Temperature20 - 25 degC (68 - 77 degF)
Temperature change±10 degC (±50 degF) /h or less
Dust levelEquivalent to a general office floor level
RIP softwareRasterLink7 (Bundled)
Dimensions (W × D × H) *11,665 mm × 1,290 mm × 856 mm
(65.6 in × 50.8 in × 33.7 in)
Weight150 kg (330.7 lb)

Production Example of UJF-6042MkII e


3D lenticularNameplate (Full-color)Nameplate (Etching)Card
3D lenticularNameplate (Full-color)Nameplate (Etching)Card
Key chainNoveltyFlip wallet smartphone casePaper package
Key chainNoveltyFlip wallet smartphone casePaper package
SwitchPhoto albumWedding boardWater bottle
SwitchPhoto albumWedding boardWater bottle
UJF-6042MkII e


Kebab HS: Up to 3x faster production! 360° Print option for flat and tapered cylinders.
