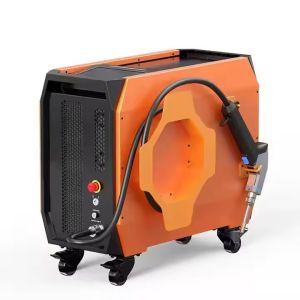

DIY Fiber Laser Welding Machine 1500W Easy Operate Core Components Motor Bearing Pressure Vessel Metal

Table of Contents

1. Machine Cover

2. Chiller (Only Necessary for Water-Cooling Laser Source)

3. Laser Source

4. Laser Welding System

Cost-Effective Option for Water-Cooling Welder

Advanced Option for Water-Cooling Welder

Option for Air-Cooling Laser Welder

7. Electrical Parts

8. Consumable Parts

· Component List and Prices of 1500W Water-Cooled Laser Welding Machine DIY Project

· Welding Parameters for Various Materials

Carbon Steel

Aluminum

Stainless Steel

· Conclusion

1. Machine Cover

The machine cover protects the internal components of your laser welder. Depending on your choice of cooling method, the cover's design will vary:

· Water-Cooled Laser Welding Machines: Larger covers to accommodate the chiller.

· Air-Cooled Laser Welding Machines: More compact covers since no chiller is required.

Sample Photos:

· Water-cooling welder with chiller locked/unlocked

·

· Air-cooling welder without chiller

·

2. Chiller (Only Necessary for Water-Cooling Laser Source)

A chiller is crucial for water-cooled laser sources to maintain optimal operating temperatures. Manufacturers now offer integrated chillers with the machine cover for streamlined design and functionality.

Sample Photo:

·

· (Hanli Chiller for Laser Welding)

3. Laser Source

· Water-Cooling Laser Source: Ideal for higher power output, typically ranging from 1000W to 3000W.

· Air-Cooling Laser Source: Suitable for lighter applications with power ratings between 800W to 1200W.

Sample Photos:

·

· (BWT Laser Source for Welding,you can also choose brands like Raycus, Max, etc)

4. Laser Welding System

There are several options for the laser welding system, depending on your budget and performance requirements:

Cost-Effective Option for Water-Cooling Welder

Raytools BW101-GS (3in1) Laser Welding System:

· Handheld Welding Head: 1 unit

· Handheld Welding Control System: 1 unit

· Raytools Handheld Welding Touch Screen Software: 1 unit

· Switching Power Supply: 1 unit

· Standard Accessories Package: 1 unit

· Motor Cable: 1 unit

· Wire Feeder: 1 unit

· Switching Power Supply Cable Kit: 1 unit

·

Advanced Option for Water-Cooling Welder

Superlasercut SUP21T (4in1) Laser Welding System:

· Laser Welding Head SUP21T: 1 unit

· Wire Feeder SUP-AMF-A: 1 unit

· Controller System: 1 unit

· LCD Display: 1 unit

· Switch Power Supply 15V & 24V: 2 units

· System Cable: 2 units

· Wire Feeder Signal Cable 10m: 1 unit

· Wire Feeder Power Cable 5m: 1 unit

·

Option for Air-Cooling Laser Welder

· Laser Welding Head: 1 unit

· Wire Feeder: 1 unit

· Controller System: 1 unit

· LCD Display: 1 unit

· Power Supply LM35010A24: 1 unit

· Power Supply LM75-23B24R2-C: 1 unit

· Nozzles: 8 units

· Protective Lens: 5 units

·

·

7. Electrical Parts

All the small electrical parts, including the computer, switches, relays, wires, etc., are essential for the proper functioning of your laser welder. You can download the PDF to get all elecrical parts required for DIY a water-cooling fiber laser welder.

Sample Photo:

·

· Electrical components inside a laser welding machine

8. Consumable Parts

To ensure continuous operation, we offer a which includes:

· Protective Lens

· Focus Lens

· Seal Ring

· Collimating Lens

· Welding Copper Nozzle

· Wire Feeding Copper Nozzle

· Calibration Tube

· Cutting Copper Nozzle

Sample Photo:

·

· Various consumable parts

Component List and Prices of 1500W Water-Cooled Laser Welding Machine DIY Project

For those interested in a specific project, here’s a detailed component list for building a 1500W water-cooled laser welding machine:

Welding Parameters for Various Materials

When welding different materials, specific parameters need to be followed to ensure optimal results. Below are the recommended settings for welding carbon steel, aluminum, and stainless steel.

Carbon Steel
