Description of Three-Point Seat Belt Assembly for Old Hyundai
Tucson
I. Product Overview

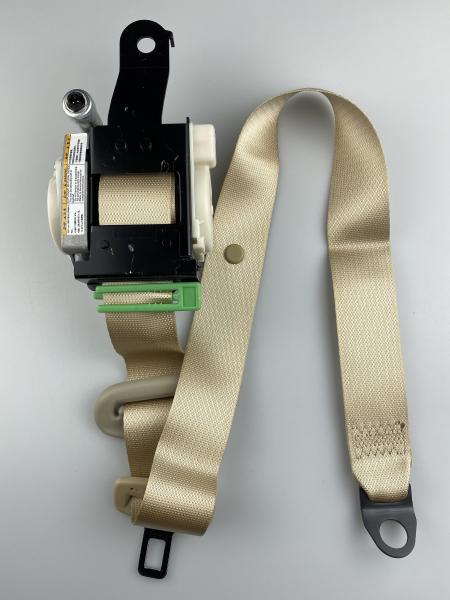

This component is a dedicated three-point seat belt assembly for
the old Hyundai Tucson, comprising core parts such as webbing,
retractor, tongue plate, adjustment device, and mounting base (see
Figure 1). It is primarily designed for front or rear seats to
restrain occupants and reduce injury risks during collisions.
II. Key Structure and Functions
| Component | Material/Features | Function |
|---|
| Webbing | Beige high-strength polyester fabric, ~50mm wide | Directly contacts the body to disperse impact forces |
| Retractor | Black plastic housing + metal locking mechanism with yellow label | Automatically retracts webbing; locks webbing during emergencies |
| Tongue Plate & Buckle | Green plastic tongue plate + beige buckle base | Enables quick locking/release for secure fastening |
| Mounting Hardware | Metal brackets (with bolt holes) | Connects to the vehicle body to withstand collision loads |
III. Application and Notes
- Fitment: Old Hyundai Tucson models (specific years require verification
via vehicle VIN).
- Installation Tip: Professional tools are needed to secure the metal brackets,
ensuring rigid connection between the retractor and vehicle body to
prevent loosening.
- Maintenance Advice: Regularly clean webbing stains and avoid sun exposure to prevent
aging. If locking function fails (e.g., webbing fails to retract or
lock in emergencies), replace the assembly immediately.
