Name: 450ton Crane Mating Equipment Electric Flat Transfer Cart
Brand: BETTER
Price: 3000 USD

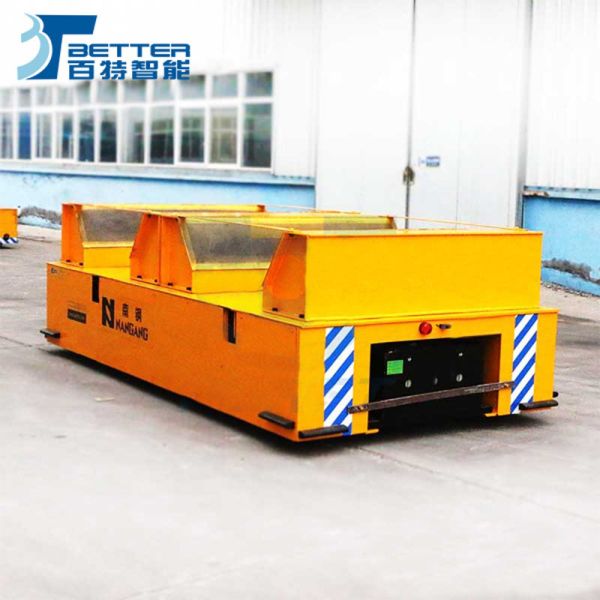

450ton Crane Mating Equipment Electric Flat Transfer Cart

Categories	Trackless Transfer Cart
MOQ:	1 Piece
Price:	US$3000-3500
Place of Origin:	Xinxiang
Brand Name:	BETTER
Packaging Details:	Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time:	15-30 days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Month
Model Number:	BXC
Product Name:	Battery-Power Transfer Cart
Usage:	Heavy Duty Material Transportation
Load Capacity:	1-300ton
Special Function:	Anti-Explosion,Heat-Resistant,Lifting,Customized
Material:	Steel
Transport Package:	The Whole Cart Will Be Packed by Tarp.
Specification:	20002000500
Trademark:	BETTER
Origin:	Xinxiang
HS Code:	84289090
Production Capacity:	50 Sets/Month

Contact Now

Add to Cart

Company Info.

Xinxiang Better Smart Transport Equipment Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

450ton Crane Mating Equipment Electric Flat Transfer Cart

450Ton Crane Mating Equipment Electric Flat Transfer Cart

This 450-ton electric flat transfer cart is specifically engineered for precision crane mating operations in heavy industrial facilities. Designed with an ultra-rigid deck and multi-point support system, it provides a stable platform for transporting and positioning oversized components such as crane girders, port machinery, and prefabricated structural sections. The cart features synchronized electric drive units that enable millimeter-level positioning accuracy, ensuring seamless alignment during assembly or installation processes. Its robust battery-powered system offers cordless mobility without compromising performance, while integrated hydraulic leveling and anti-sway mechanisms maintain load stability throughout operation. Equipped with laser guidance interfaces and remote control capabilities, this transfer cart streamlines critical path operations in shipyard gantry assembly, bridge construction, and heavy plant installation, reducing project timelines while enhancing operational safety.

Model		BXC-2t	BXC-5t	BXC-10t	BXC-16t	BXC-20t	BXC-25t	BXC-30t	BXC-40t	BXC-50t	BXC-63t	BXC-80t	BXC-100t	BXC-150t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size (mm)	Length(L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	450	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel Base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter (mm)		270	270	300	350	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed (m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Total Power(kw)		2	3	2.2	2.2	2.2	3	3.5	4	5	6.3	8	10	15
Battery Capacity(Ah)		150	180	180	200	220	220	260	300	330	400	400	440	600
Battery Voltage(V)		48	48	48	48	48	48	48	48	48	48	72	72	72
Running Time When Full Load		4.32	5.4	4.8	4.3	4	4	3.5	3.6	3.3	3	3.6	3.2	2.9
Running Distance for One Charge(km)		6.5	8.1	7.2	5.1	4.8	4.8	4.2	4.3	4	3.6	4.3	3.8	3.2
Max Wheel Load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
