Name: Factory Supply Heavy Duty Industrial Electric Transfer Bogie
Brand: BETTER
Price: 3000 USD

Factory Supply Heavy Duty Industrial Electric Transfer Bogie

Categories	Trackless Transfer Cart
MOQ:	1 Piece
Price:	US$3000-3500
Place of Origin:	Xinxiang
Brand Name:	BETTER
Packaging Details:	Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time:	15-30 days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Month
Model Number:	BXC
Product Name:	Battery-Power Transfer Cart
Usage:	Heavy Duty Material Transportation
Load Capacity:	1-300ton
Special Function:	Anti-Explosion,Heat-Resistant,Lifting,Customized
Material:	Steel
Transport Package:	The Whole Cart Will Be Packed by Tarp.
Specification:	20002000500
Trademark:	BETTER
Origin:	Xinxiang
HS Code:	84289090
Production Capacity:	50 Sets/Month

Contact Now

Add to Cart

Company Info.

Xinxiang Better Smart Transport Equipment Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Factory Supply Heavy Duty Industrial Electric Transfer Bogie

Factory Supply Heavy Duty Industrial Electric Transfer Bogie

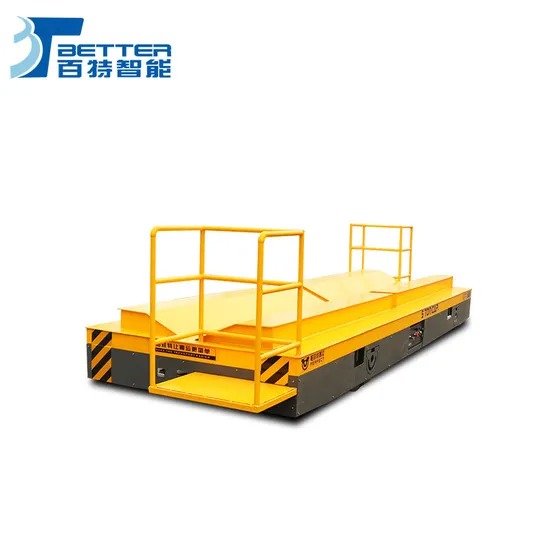

The electric transfer bogie is powered by battery, the battery is installed inside the flat cart. The power supply provides power to DC traction motors through an electrical control system to control start, stop, advance, retreat, speed control, etc. of the flat cart. electric transfer bogie is a rail electric transport cart in the factory. It has the characteristics of simple structure, convenient use, large carrying capacity, easy maintenance, long service life, etc. Because of its convenience, economy, practicality, easy cleaning and many other advantages, it has become the preferred transport cart for moving heavy objects regular when the journey is fixed.

Model		BXC-2t	BXC-5t	BXC-10t	BXC-16t	BXC-20t	BXC-25t	BXC-30t	BXC-40t	BXC-50t	BXC-63t	BXC-80t	BXC-100t	BXC-150t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size (mm)	Length(L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	450	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel Base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter (mm)		270	270	300	350	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed (m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Total Power(kw)		2	3	2.2	2.2	2.2	3	3.5	4	5	6.3	8	10	15
Battery Capacity(Ah)		150	180	180	200	220	220	260	300	330	400	400	440	600
Battery Voltage(V)		48	48	48	48	48	48	48	48	48	48	72	72	72
Running Time When Full Load		4.32	5.4	4.8	4.3	4	4	3.5	3.6	3.3	3	3.6	3.2	2.9
Running Distance for One Charge(km)		6.5	8.1	7.2	5.1	4.8	4.8	4.2	4.3	4	3.6	4.3	3.8	3.2
Max Wheel Load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

Application

Its core value lies in providing stable and economical rail transportation solutions for various heavy industrial environments.
Heavy-duty logistics in workshops and warehouses
In factory workshops of mechanical manufacturing, metallurgy, building materials and other industries, it undertakes the task of transporting raw materials, semi-finished products or finished products between workstations or across regions.
Production line process connection
As a connecting link between fixed process links such as assembly lines, heat treatment furnaces, and spraying lines, it realizes the automatic flow of heavy workpieces in the continuous production process.
Transportation in specific areas of ports and yards
Short-distance transportation of heavy goods from the storage area to the loading and unloading point is completed in specific track areas within the factory warehouse, logistics yard or port terminal.
As a Factory Supply product, while ensuring heavy-load performance and industrial-grade reliability, it usually has a more competitive cost advantage and perfect after-sales service. It is an ideal standardized equipment for all kinds of industrial enterprises to achieve material handling automation and efficiency improvement.

How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.

Henan BETTER Handling Equipment Co., Ltd. Our company is specializing in the Design and Manufacture of Flat Transfer Trolley to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items.
