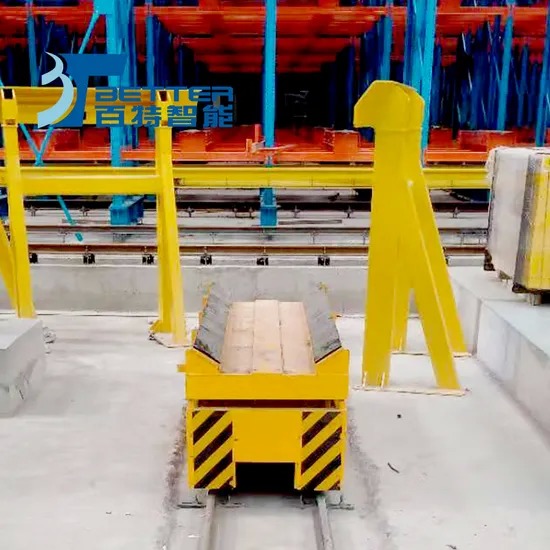

Name: Industrial Rail Electric Transfer Cart Factory Direct Sale
Brand: BETTER
Price: 3000 USD

Home > Plastic Products >

Industrial Rail Electric Transfer Cart Factory Direct Sale

Categories	Rail Transfer Cart
MOQ:	1 Piece
Price:	US$3000-3500
Place of Origin:	Xinxiang
Brand Name:	BETTER
Packaging Details:	Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.
Delivery Time:	15-30 days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Month
Model Number:	BTL
Product Name:	Battery-Power Transfer Cart
Usage:	Heavy Duty Material Transportation
Load Capacity:	1-300ton
Special Function:	Anti-Explosion,Heat-Resistant,Lifting,Customized
Material:	Steel
Transport Package:	The Whole Cart Will Be Packed by Tarp.
Specification:	20002000500
Trademark:	BETTER
Origin:	Xinxiang
HS Code:	84289090
Production Capacity:	50 Sets/Month

Contact Now

Add to Cart

Company Info.

Xinxiang Better Smart Transport Equipment Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Industrial Rail Electric Transfer Cart Factory Direct Sale

Factory Directly Sales Track Flatbed Electric Trolley Rail Transfer Cart for Sale

Introduction of Material Transfer Equipment

Our line of Material Transfer Equipment is designed to accommodate the needs of a wide range of industries such as steel, aluminum, automotive, stamping, heavy manufacturing and several others. These units are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

Application of Material Transfer Equipment

The trailing cable powered Heavy Duty Material Transfer Equipment is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).

Working Principle of Material Transfer Equipment

This Heavy Duty Material Transfer Equipment is powered by dragging cable. The power source 380-690v alternating if leaded into electrical control cabinet by cable, which controls the motor to make the cart start, stop, move forward and move backward. Hydraulic lifting system can be mounted on the car to meet the demand for car lifting. The Heavy Duty Rail Cart is suitable for running distance less than 20m, high using frequency.

Parameter of Material Transfer Equipment

Model		BTL-2t	BTL-5t	BTL-10t	BTL-16t	BTL-20t	BTL-25t	BTL-30t	BTL-40t	BTL-50t	BTL-63t	BTL-80t	BTL-100t	BTL-150t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size (mm)	Length(L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	500	550	550	600	600	650	650	700	700	800	900	1000	1200
Wheel Base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter(mm)		270	270	300	350	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	50	75	75
Running Speed(m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	20	20	20	18
Motor Power(kw)		0.8	0.8	1.5	2.2	2.5	3	4	5.5	5.5	7.5	7.5	11	15
Running Distance(m)		25	25	25	25	30	30	50	50	50	50	50	50	50
Max Wheel Load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

Machining Of Material Transfer Equipment
CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.

Packaging and Shipping of Material Transfer Equipment
*For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
