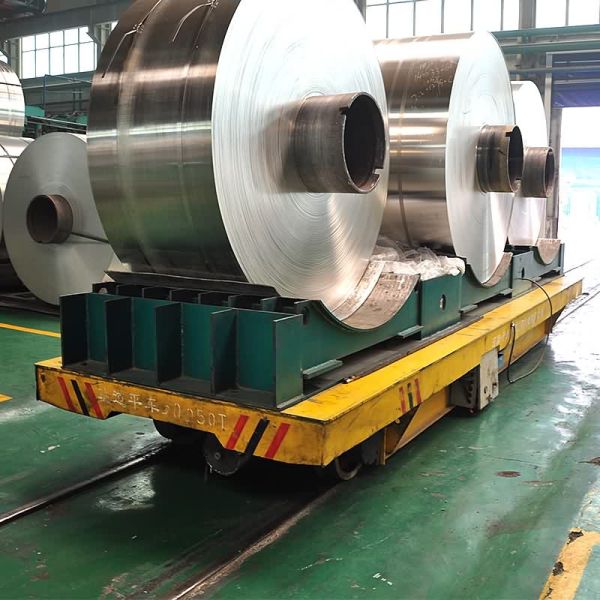

Rail Coil electric trolley with 20 Ton Carrying Capacity
Introduction of coil electric trolley
BETTER ectric coil electric trolleys are used to transport steel
coils and pipes for metal industry. This coil transfer Cars are
designed to be an extremely cost effective, safe and flexible load
moving alternative.
The Electric transport trailers are manual guide vehicles equipped
with specialized drive systems which make it possible to easily,
precisely and safely move up to 200 tons. The coil heavy load
transfer cart is sometimes called a heavy transporter, headless
transporter or self-propelled modular transporter.
Application of coil transfer trailerUses of Electric coil transfer cart:
For horizontal load transfers of a wide range of material, we have
the heavy duty, high quality Transfer Cart solution you need.
Transfer carts are used: to carry loads along assembly lines;
transfer material from one work station to the next; store and
transport an entire shift worth of production. They can even be
used as a stable yet moveable machine base. With four different
styles and standard capacities up to 60 tons, we have the solution
you need and each style can be designed for your specific
application.
Using Place of coil electic trolley
BETTER conceives and manufactures a wide range of railway guided
transfer carts, battery powered trolleys, intelligent
self-propelled trolleys, die carts, industrial flat trailers,
tilters and lifting platforms that operate in many industrial
fields: metallurgy, manufacture, oil and gas, die shops, shipyards,
chemical plant, automotive, mining industry, aerospace, power
generation, coal industry, paper mills, metalworking, warehouse and
many others!
Parameter of coil transfer trailer
| Model | BDG-2t | BDG-5t | BDG-10t | BDG-16t | BDG-20t | BDG-25t | BDG-30t | BDG-40t | BDG-50t | BDG-63t | BDG-80t | BDG-100t | BDG-150t |
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table Size (mm) | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 450 | 450 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter (mm) | 270 | 270 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(kw) | 0.8 | 0.8 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Transformer Power(KVA) | 3 | 3 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | 20 | 30 | 30 |
| Transformer Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance(m) | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 60 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
| Recommended Rail Model | P24 | P43 | QU100 | QU100 | | | | | | | | | |
Advantages of coil transfer trailer
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the
material handled. We really care about the safety of everyone
involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you
will be able to use it to transport your loads. We will support you
to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent
installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both
small and extremely huge loads for its modular fabrication and its
high payloads: up to 300 ton for each trolley.
Factory and Customer
Packaging and Shipping
Q &A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling
solutions on the market! Which one is the right choice? For
starters, transfer carts are moveable platforms used for the
horizontal movement of materials, assemblies, and other items.
Consideration must be given to the weight of the load and the
travel requirements for the application.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a
partially completed product to the next station (tractors, heavy
equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to
locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard
rails)
8. Elevating platform for assembly process (integrated screw-jack
table)
9. Sand casting (flat decking)
