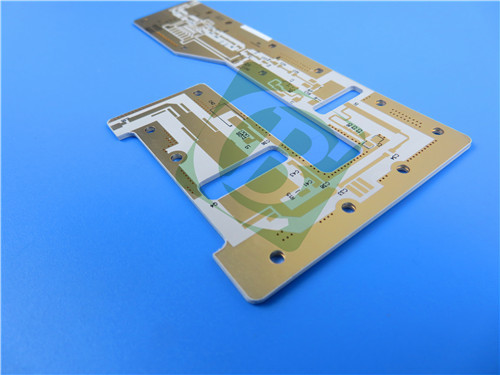

RO3006 PCB 5mil Double-Sided with Pure gold 30u"

This 2-layer rigid PCB is tailored for high-performance commercial microwave and RF applications, utilizing the superior electrical and mechanical stability of Rogers RO3006 ceramic-filled PTFE composite laminates. Thanks to its ultra-compact size, precise manufacturing specifications, and consistent performance across temperature changes, it's an optimal choice for space-limited and temperature-sensitive high-frequency electronic systems.

1. PCB Specifications

The PCB’s construction is optimized for precision, miniaturization, and compatibility with high-frequency operational demands, with key parameters outlined as follows:

2. PCB Stack-up Configuration

3. Quality Standards & Global Availability

Artwork Format: Gerber RS-274-X (the universal industry standard for PCB manufacturing)

Accepted Quality Standard: IPC-Class-2 (meets strict requirements for performance, durability, and consistency)

Availability: Globally accessible (support projects across different countries and regions)

4. Rogers RO3006 Substrate: Introduction, Features & Benefits

4.1 Introduction to Rogers RO3006

Rogers RO3006 laminates are high-performance ceramic-filled PTFE composites developed to deliver outstanding electrical and mechanical stability. A key advantage is their stable dielectric constant (Dk) across a wide temperature range, which eliminates the typical step change in Dk that affects standard PTFE glass materials near room temperature. This characteristic ensures consistent performance, making it a preferred choice for demanding microwave and RF systems.

4.2 Key Features of Rogers RO3006

4.3 Core Benefits of Rogers RO3006

These features translate to tangible advantages for both circuit design and end-use performance:

Uniform Mechanical Properties Across Dielectric Constants: Compatible with a range of dielectric constants, making it ideal for multi-layer board designs and hybrid assemblies with epoxy glass multi-layer boards, enhancing design flexibility

Low In-Plane Expansion Coefficient (Copper-Matched): Matches the expansion coefficient of copper, enabling more reliable surface-mounted assemblies, suitable for temperature-sensitive applications, and ensuring excellent dimensional stability over temperature variations

Volume Manufacturing Compatibility: Supports high-volume production processes with economical laminate pricing, reducing overall production costs while maintaining high quality

5. Some Typical Applications

- Automotive radar applications

- Global positioning satellite antennas

- Cellular telecommunications systems - power amplifiers and antennas

- Patch antenna for wireless communications

- Direct broadcast satellites

- Datalink on cable systems

- Remote meter readers

- Power backplanes

In short, this 2-layer Rogers RO3006 PCB features precise manufacturing, compliant quality, and a high-performance substrate, offering a cost-efficient and reliable solution for commercial microwave and RF applications. With its compact design, low signal loss, and temperature stability, it's ideal for next-gen high-frequency electronics development.
