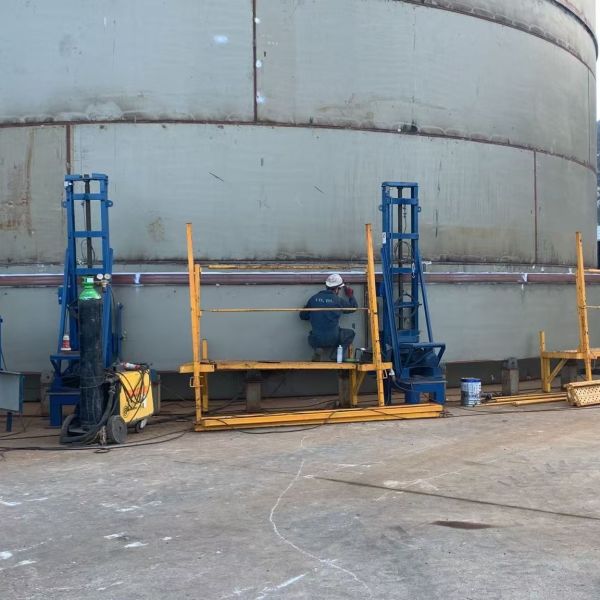

Glass-Lined Vessel Lifting 15t Bolted Electric Lead Screw

Screw Jack System-Tank Lifting Construction Equipment

Petroleum storage tank is an important storage facility in the petroleum industry, and its construction quality directly affects the safe operation and service life of the storage tank. In the installation and maintenance of petroleum storage tanks, jacking operations are particularly critical, requiring precise control and a high degree of safety.

With the continuous advancement of industrial technology, the demand for precise control of heavy equipment is also increasing. As a widely used and superior jacking solution, the design of the lead screw jacking machine not only requires strong bearing capacity and high stability, but also takes into account the convenience and safety of operation.

The purpose of this scheme is to illustrate the application and advantages of lead screw jacking in the construction of oil storage tanks.

Major Component

1,Key Configurations
Main structure: high-strength steel is used to ensure the bearing capacity and fatigue resistance of the jacking machine.
Bracket structure: mainly made of Q235B material to ensure the overall stability of performance.
Modular design: Modular components for quick assembly, disassembly and transportation.
Bottom support: Set up the bottom support with adjustable height to ensure the stability of the jacking machine on different grounds.

2,Transmission System

Lead screw system: select high-precision, high-wear-resistant ball screws to ensure smooth and accurate jacking process.
Drive mechanism: Servo motor or stepper motor is used to control the lead screw to achieve precise fine-tuning ability.
Reducer: Cooperate with a suitable reducer to reduce the motor load and provide sufficient torque.

3,Control Systems

Automatic control: Integrate advanced PLC control system to achieve automatic lifting and position control.

Human-machine interface: The design is friendly to the human-machine interface, which can detect the running status of each motor.

Features: The servo motor is used with the planetary reducer to ensure the synchronous operation of the screw jacking and the error is within 2mm.

4, Advantages of screw design

High precision: The use of ball screws ensures high precision and stability in the jacking process.

Easy maintenance: Considering the convenience of maintenance, the jacking machine can maintain good performance for a long time.

Precise control: The screw jacking machine can achieve precise control at the micron level through the fine screw transmission system to ensure the stability and accuracy of the storage tank in the jacking process.

Easy to operate: Modular design and user-friendly interface make operation more simple and intuitive.

Strong bearing capacity: The lead screw jacking machine can be designed as a multi-stage combined type to meet the needs of tank jacking of different weights and heights.

Safe and reliable: with self-locking function, it can keep the jacking position stable even in the case of power failure and other emergencies, avoid accidents, and ensure the safety of jacking operations.

Technical Specifications

(Custom configurations available upon request.)

Motor model	Servo motor control(ZLH3130-7720)( Encoder built-in; 2000RMP; supporting planetary reducer ZLF120; rated output torque 192N.M)
The total length of the elevator	3220mm (base height:217mm + nut height:120mm + effective stroke:2800mm + safety margin:83mm)
Jacking machine model(ZNA300-UR-S-2800-M-III-M1)
Maximum static load	250KN (25T)
Actual dynamic load	150KN (15T)
Screw	TR90*16
The nut bears the load, rises and falls up and down, and the screw rotates
Lifting speed	40-60mm/min(Adjustable)(the full distance is about 46-70min)
The top safety margin position is fixed with a bearing seat
Matching servo motor flange
Control Systems
Automatic control	Integrate advanced PLC control system to achieve automatic lifting and position control
Human-machine interface	The design is friendly to the human-machine interface, which can detect the running status of each motor.

Product Photos

Product Tags:


*From:	Your email address is incorrect!
*To:	Wincoo Engineering Co., Ltd.
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Bolted Tank Jacking System
Brand Name:	WINCOO
Model Number:	SDT-1500
Certification:	CE
Place of Origin:	CHINA
MOQ:	1 set
Price:	USD 1500~3500 1SET
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	50 SETS/1 MONTH
Delivery Time:	39days
Packaging Details:	Export package
