Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning

Categories Industrial Ultrasonic Cleaner
Certification: CE, RoHS
MOQ: 2
Price: 1250
Model NO.: JP-301ST
Tank Size: 800*300*400mm
Ultrasonic Power: 1500W
Tank Volume: 96 L
Frequency: 28kHz/40kHz
Material: SUS304
Heating Power: 3000W
Temperature Setting: 95°C / 203°F
Transducer: 30PCS
Machine Dimension: 1100*700*850mm
Packing Dimension: 1200*800*1000mm
Gross Weight: 130KG
Basket Load: More than 200KG
Power Supply: 220V 50Hz; 110V 60Hz
Time Setting: 0~99 hours
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Industrial Ultrasonic Cleaner with 96L Tank Volume 800mm Long and 1500W Ultrasonic Power for Meltblown Die Cleaning

Ultrasonic 100L Spunbond die cleaning Melt-blown die blocks cleaning machine
Ultrasonic Cleaner Industry for Melt blown mould
1. Inner tank dimension of this machine: 800*300*400mm (Length × width × deep)
2. The inner tank dimension can be changed/custom according to the size of your Melt blown mould length
3. 1500W stronger ultrasonic power; 3000W heating power
Features at a Glance

1. Fast and thoroughly cleaning
2. Saving labor; time; detergent
3 Clean cracks and blind holes for mould
4. No damage to the mold
5. Removing heavy dirt and fabric easily
6. Power can be adjustable
7. SUS 304/SUS 316 tank material
8. Liquid level switch can be added
9. Thermal insulation can be added
10. With water inlet/out let in suitable place
11. With stainless steel basket
12. Filtration cycle system is available
13. Lifting system for basket is available
14. Electrolysis is available
15. Double/Multi frequency is available
16. Cooling system is available
17. Deionized(DI) water is available
Product Parameters
Model Number
JP-301ST
Function
Ultrasonic cleaning + Hot water cleaning
Ultrasonic Frequency
28/40kHz (other frequency can be customized 20KHz 68KHz, 80KHz, 132KHz)
Tank Material
SUS 304 (SUS 316 can be customized)
Thickness of tank
2mm
Inner tank dimension
800*300*400mm / 31*12*16 inch (Length*width*deep)
Machine dimension
1100*700*850mm (Length*width*height)
Packing dimension
1200*800*1000mm (Length*width*height)
Gross weight of machine
130KG
Tank Capacity
96 Liter / 25 Gallon
Transducer
30pcs; 50W for each transducer; 100W transducer can be customized
Ultrasonic Power
1500W
Heating Power
3000W
Time setting of Ultrasonic
0~99 hours
Temperature setting
Room temperature ~ 95°C / 203°F adjustable
Drain hole
On the bottom of inner tank
Water inlet/outlet
Yes; 20mm
Basket
Yes; ,
Basket load
More than 200KG
Length of power line
1.5 meters
Power supply
220V 50Hz; 110V 60Hz
Warranty
1 year
Certificate
CE; RoHS; FCC; REACH
Lead time
3 days after payment


How to Cleaning and Fix Meltblown Machine Spinneret

  • Step1: Put Spinneret and filter into furnace
  • Step2: Ultrasonic cleaning unit

  • Step3: Put spinneret on table with light
  • Step4: Check the hole one by one by magnifier
  • Step5: Cleaning the hole by needle with diameter 0.25mm
  • Step6: Fix the cover and tighten all the screws gently
  • Step7: Adjust the gap up to 0.8mm

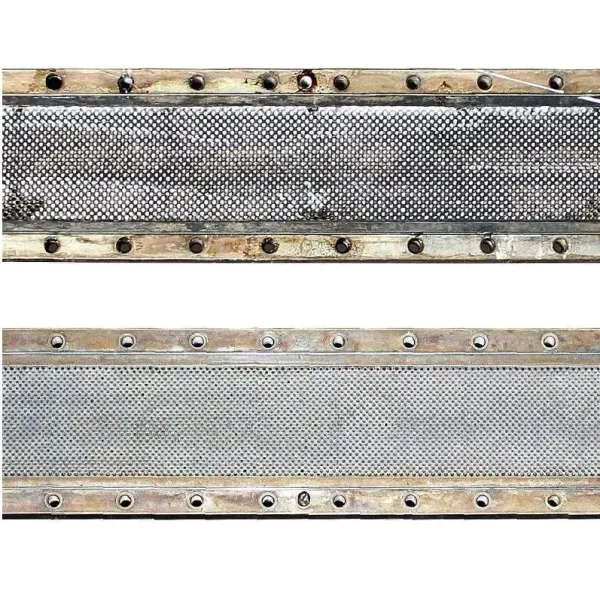

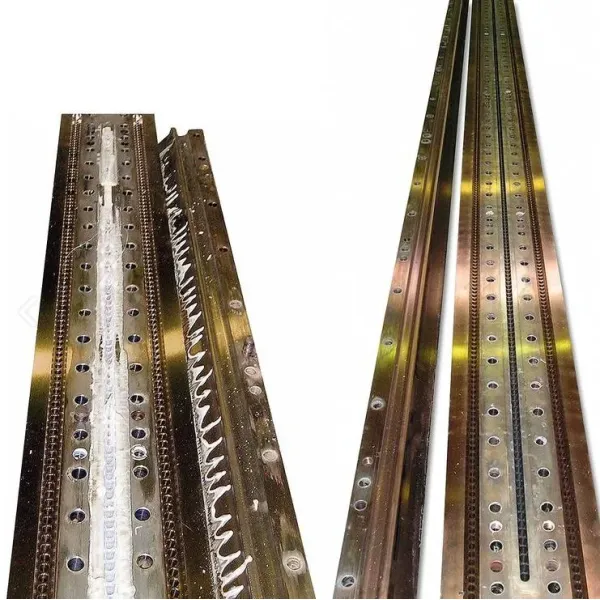

    Cleaning Effect
Meltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm LongMeltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm Long
CLEANING OF MELT BLOWN DIES, MELT BLOWN DIE BLOCKS
Liquid polymer under high pressure comes out of a spinning beam (die beam, die block) in the melt blown process (spinning fleece process) and will be blown and spun through high speed hot air and cold air into fine fibres (micro fibres), which will be collected by a takeup mesh and carried away. Nonwoven micro fibre fleece fabrics are produced by this method, which, depending on the application, could be produced in different densities, thicknesses, absorptivity, strengths and merged into several layers. Besides of the well-known fleece shirts and fleece jackets, other typical products are extremely light but high efficient respiratory filters, cabin filters and fuel filters, and also large absorption and isolating stuff, such as diapers, cushion fleece, or isolating mats. Single use clothes or vacuum cleaner bags are also manufactured out of micro fibres fleece.

The cleaning of these spinning beams or die beams, which are frequently several meters long, requires a very delicate cleaning process, due to the extremely fine die holes and geometries.

Meltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm Long
Meltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm Long
Meltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm Long
Meltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm Long
Meltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm Long







96L hot sale mould of Meltblown die industrial ultrasonic cleaner For Removing Oil / Rust dirty



Function:

Ultrasound is the most efficient and cost effective method of removing Carbon ,oil, rust ,build-up dirt



Features:

1. stainless steel tank has resistance to wear and long work life.
2. tank capacity:96Liter, with Digital timer & heater control
3. with Stainless steel basket
4.Use just tab water, or industrial alcohol and solvent cleaner for more higher cleaning requirement
5.industrial control chip microcontroller.flexible circuit boards control, more secure & stable
6.with drainage,basket,lid and Multi-direction castors
7. Transducer : Korea techinique
8. PCB board is independent research and development design production by skymen
9.Generator is high quality techinique designed and produced which have been used thousands of units by our USA and Europe customers.
10. circulation pump brand name: CNP (Famous brand)



The whole set machine including:

1* cleaning machine

1* lid

1* basket



Similar models with different tank volume:

ModelTank sizeUnit sizeN.WVolumeUltrasonic
power
Heating
power
TimerUltrasonic
generator
 L×W×H(mm)L×W×H(mm)KG(L)(W)(W)(min/Hour)/
JP-120ST500x300x250670*480*7006538240-60015001-99minBuilt-in
JP-180ST500x350x300680x530x7007053360-90015001-99minBuilt-in
JP-240ST550x400x350730x580x7708077480-120030001-99minBuilt-in
JP-300ST550x450x400730x618x8008799600-150045001-99minBuilt-in
JP-301ST800x300x400940x420x8009296600-150045001-99minBuilt-in
JP-360ST600x500x450805x705x78098135720-180045001-99hourexternal
JP-480ST700x500x500870x705x790115175960-240060001-99hourexternal

Meltblown Machine Spinneret Ultrasonic Cleaner 96L 800mm Long

How does Ultrasonic Cleaner work?





How to use an ultrasonic cleaner ?

Cleaning prior to lacquering

Ultrasonic clean 130° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Brulin 815GD, 12 ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen



Cleaning to remove calcium buildup (replaces "chem-clean")

Ultrasonic clean <110° F, 2 to 3 minutes, 38 to 40 kHz sweep, 300 Hz sweep rate
Chemistry, Ultra-power 132, 1 to 1½ ounces per gallon of water
Spray rinse with de-ionized* water to remove gross detergent
Immersion rinse in flowing warm de-ionized* water (30 seconds)
Spray rinse with de-ionized* water (final rinse)
Blow dry with clean compressed air or dry nitrogen





Warranty: 1 year warranty
If any technical problem during warranty time, replacement parts will be sent free of charge. And technical support is also available after 1 year.
