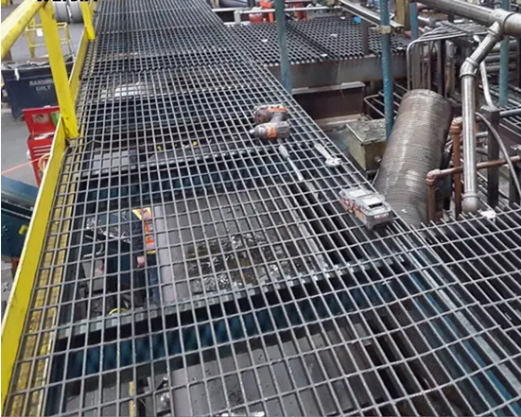

Galvanized Steel Grating with Bearing Bar Space 30mm and Thickness 2mm for Stair Treads and Walkways

Grating Type. Plain steel grating
Bearing bar space optional size:30mm,35mm, 40mm, 45mm, 50mm60mm,70mm,80mm,90mm,100mm.
Bearing bar thickness:2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm,10mm.
Cross bar size:o5mm,06mm,o7mm,o8mm,012mm, 010mm.
Cross bar space optional size 040mm,050mm,060mm,o80mm, 0100mn
Welding method: Machine forge welding or manual hand-made welding.
Usage: Flooring walkway, drain cover, stair treads grating.
Surface treatment: Black bare metal or hot dipped galvanized or powdercoating.
Max size: 8M long

Grating Type. Serrated steel grating.
Bearing bar space optional size:30mm, 35mm,40mm, 45mm, 50mm,60mm,70mm,80mm,90mm,100mm.
Bearing bar thickness:2mm, 3mm,4mm,5mm,6mm,7mm,8mm, 9mm,10mm.
Cross bar size:o5mm, 06mm, 07mm, o8mm, o12mm, 010mm.
Cross bar space optional size:40mm, 050mm,060mm,080mm, 0100mm
Welding method: Machine forge welding or manual hand-made welding.
Usage: Flooring walkway, drain cover, stair treads grating.
Surface treatment: Black bare metal or hot dipped galvanized or powdercoating.
Max size: 8M long

Grating Type: steel grating with checkered plate.
Bearing bar space optional size:30mm, 35mm,40mm,45mm,50mm60mm,70mm,80mm,90mm,100mm.
Bearing bar thickness:2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm10mm.
Cross bar size:o5mm, 06mm,07mm,o8mm,012mm, 010mm.
Cross bar space optional size:40mm,050mm,060mm,080mm,0100m
Checkered plate thickness:2mm,3mm,4mm,5mm, 6mm.
Welding method: Machine forge welding or manual hand-made welding
Usage: Flooring walkway, drain cover, stair treads grating
Surface treatment. Black bare metal or hot dipped galvanized or powdercoating.

GNEE STEEL ,Has dedicated in producing and exporting all types of steel gratings for more than 19 years,A Professional Steel Grating & Safety Grating Manufacturer for Projects Engineering.

Factory

Advanced Equipment

We have more than 30 production lines of welded steel gratings and press lock gratings. Advanced equipment, skilled workers contribute to low production loss, high production efficiency and low products costs.

Supervise Strict Testing

All steel gratings are supervised by strict QUALITY CONTROL System both in International standard and enterprise test flow. All products our customers received are qualified and best in performance and package.

Steel Gratings Types We Supply

GNEE Steel Grating Application

Steel grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.

• Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.
• Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
• Widely used in the petrochemical industry, power plants, waterworks, sewage treatment plants, municipal works, sanitation projects in areas such as platforms, corridors, bridge, ditch cover, covers, ladders, fences, rails, and so on.
