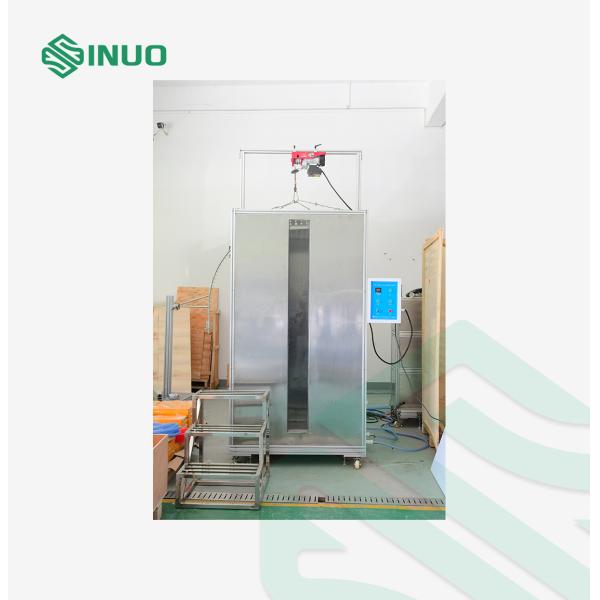

Ingress Protection Test Chamber Water Immersion Test Apparatus IPX7

Ingress Protection Test Chamber Water Immersion Test Apparatus IPX7

Complied Standards & Clauses

IEC 60529 degree of protection provided by enclosures (IP Code) of the IPX7, IEC60884-1, IEC60598-1.

Equipment Overview

The IPX7 Waterproof Test Equipment is specifically designed to evaluate the water resistance performance of various electronic and electrical products under immersion conditions. By simulating real-world submersion environments, this system accurately verifies whether the product’s waterproof protection meets the IPX7 standard requirements.

Built with a high-quality stainless-steel tank and precision control system, it ensures stable test conditions and reliable results. This equipment is widely used in R&D laboratories, quality control departments, and production lines to support product design validation, safety certification, and batch inspection.

Whether you’re testing consumer electronics, automotive components, or electrical accessories, this IPX7 waterproof tester helps ensure your products maintain consistent performance, durability, and compliance with international standards.

Technical Parameters

Chamber external size	Approximately W 1080* D 1080*H 2300mm (including casters)
Chamber inner size	Length 1000* W 1000* H1800mm
Max. test water depth	1.8m
Observation window	Tempered glass (thickness: 12mm)
Observation window width	200mm
Water level adjustment method	Water inlet / drain valve, manual adjustment
Water level display	Scale (accuracy 1mm)
External chamber material	Stainless steel plates + Aluminum profile frame
Inner chamber material	2.0mm thickness stainless steel
Electric lifting basket	Made of stainless steel, controlled by electric hoist
Control method	Buttons (non-PLC)
Test time	0.01 second-99.99hours can be preset
Immersion depth requirements	The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water
Test content	IPX7
Power supply	AC 220V,50Hz, 1KW
