P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring

P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring

P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring
P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring
Categories Waterproof Circular Connector
Brand Name: Cablein
Certification: CE, ROHS, TUV , ETL
Place of Origin: Shenzhen China
MOQ: 100PCS
Price: The price ranges from $1 to $4 USD per pieces
Payment Terms: T/T,Western Union
Supply Ability: Monthly output: 10,000 sets
Delivery Time: 5-8 Working Days
Packaging Details: High Quality export carton
Flame Resistance Rating: UL94 V-0
Related Voltage: 450V
Conductor Material: Copper
Waterproof: IP68
Cable Guage: per your requirement
Colour: black
Withstand Temperature: -40℃~+105℃
Contact Pin: 2Pin
Contact Now
Company Info.
Cablein Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

P20X Waterproof Through Connector with 1-to-2 Ports UL94 V-0 Flame Resistance and 450V Rated for Tool-Free Fast Wiring

Waterproof Through Connector P20X 2-Pole 1-to-2 Ports Tool-Free Fast Wiring
Specifications

Installation Type: Wire-to-Wire

Connection Type: Quick Connect

Rating: IP68

Pin: 2

Waterproof Ring: 5-9mm 9-12mm

Applicable Wire Gauge: 0.5mm²-2.5mm²

Material: PA66

Datasheet
ParameterSpecification
Product NameWaterproof Through Connector P20X 2-Pole 1-to-2 Ports Tool-Free Fast Wiring
Wiring Range0.5 - 2.5 mm²
Rated Current16A Max
Operating Voltage450V Max
Ingress Protection (IP) RatingIP68
Ambient Temperature-40℃ ~ +105℃

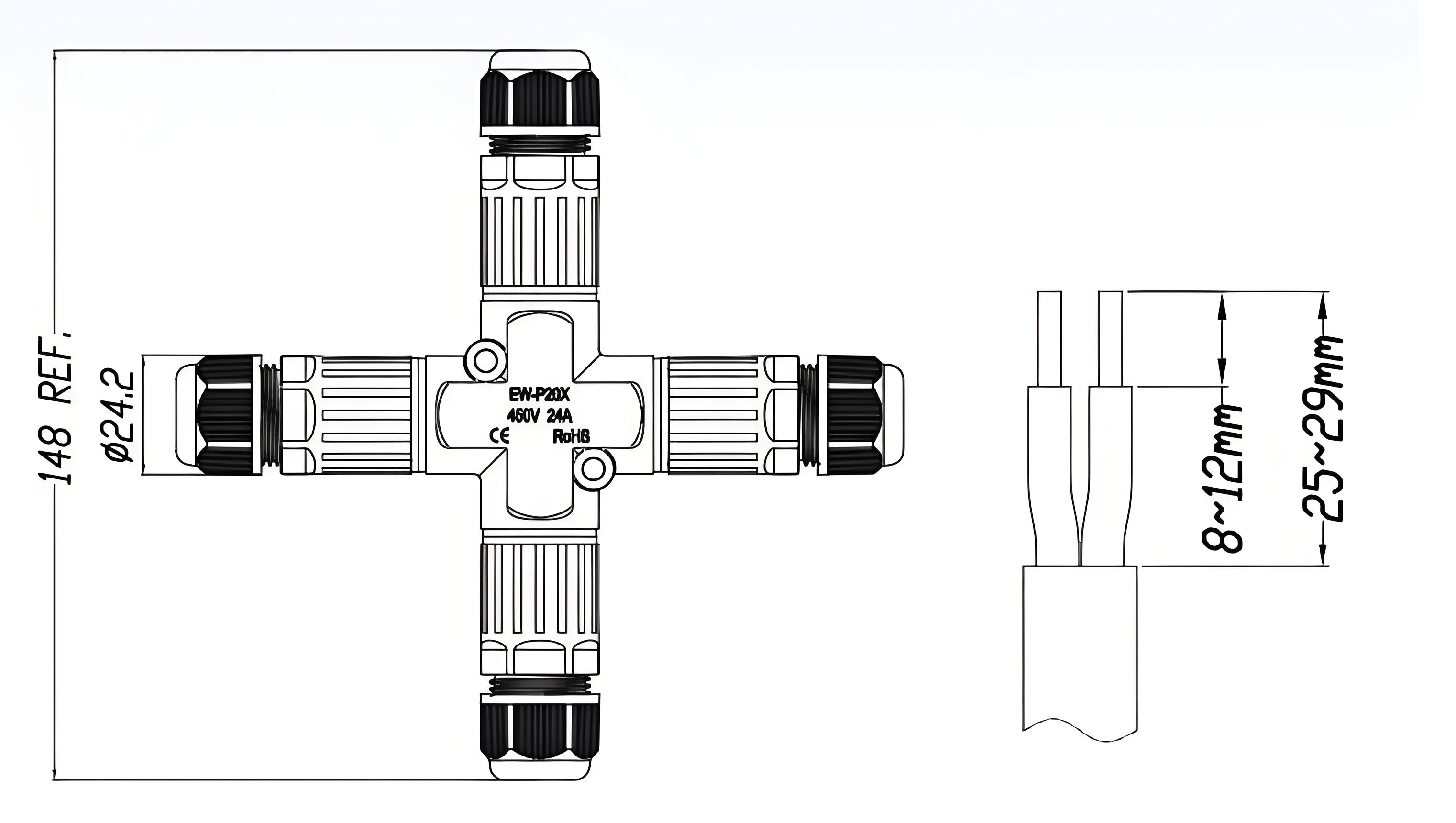

Cable Diameter (OD)5-9mm 9-12mm
Advantages

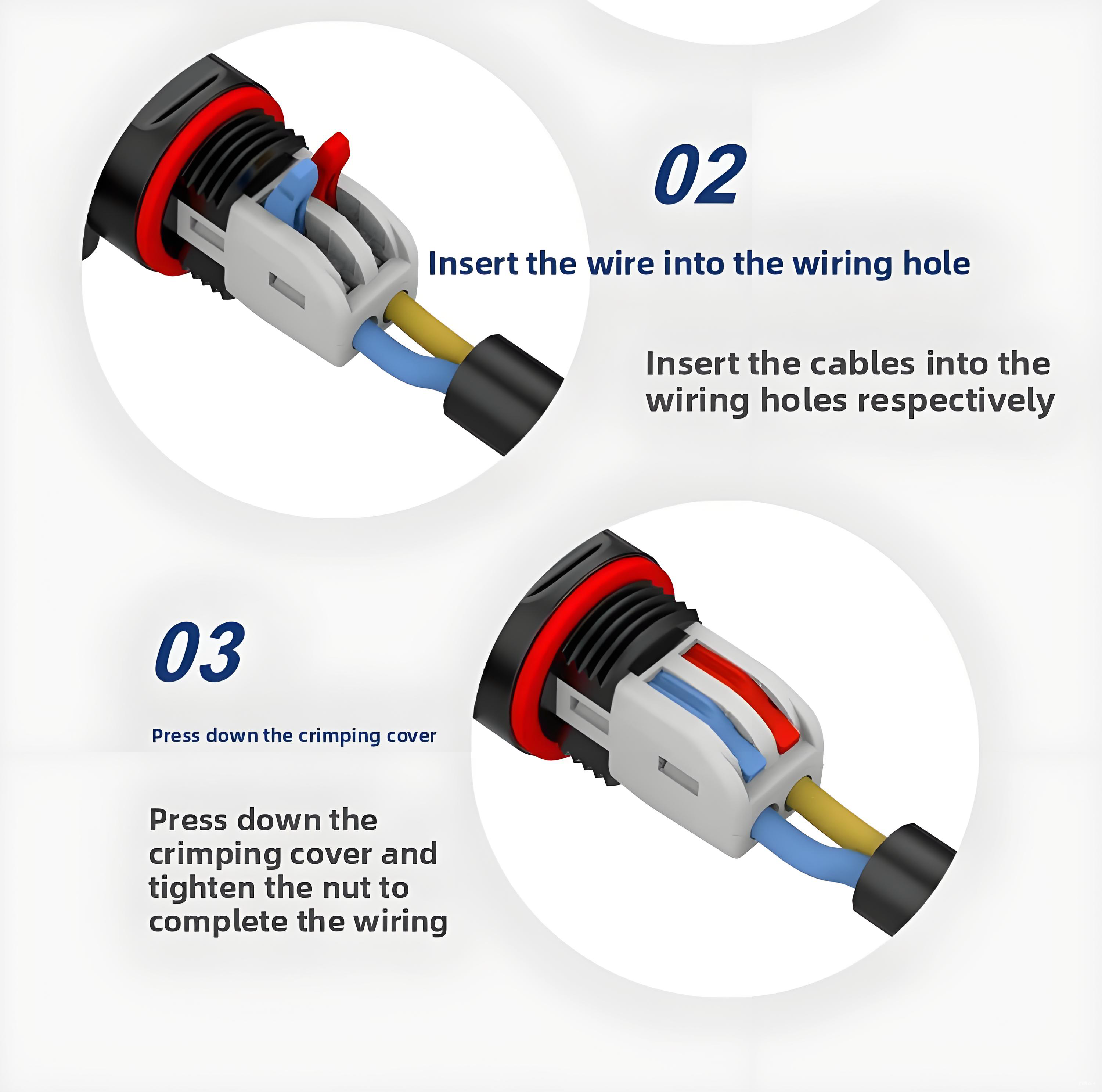

  1. Tool-Free Fast Wiring Enables quick and effortless installation, significantly saving time and labor costs without the need for special tools.
  2. IP68 Waterproof & Dustproof Provides complete protection against dust and long-term water immersion, ensuring reliable performance in harsh outdoor and industrial environments.
  3. Stable 1-to-2 Circuit Branching The through-type design efficiently and securely distributes power or signals from one source to two devices, simplifying system layout.
  4. Robust & Corrosion-Resistant Built with high-quality materials, the connector withstands impact, vibration, and corrosion for long-term durability.
Product Images
FAQ
Q: Is special tooling required for wiring?
A: No. It features a tool-free design for quick and easy installation.
Q: What is the waterproof rating?
A: It is rated IP68, ensuring complete protection against dust and water immersion.
Q: How many devices can this connector power?
A: Its 1-to-2 port design allows you to power or connect two devices from a single source.
