1.2mm-2.0mm Thickness Galvanized Metal Steel Upright Fence Post Roll Forming Machine

Categories Guardrail Roll Forming Machine
Brand Name: Sussman
Model Number: SSM-UB
Certification: CE ISO 9001
Place of Origin: Jiangsu,Chain
MOQ: 1 set
Price: negotation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 set per month
Delivery Time: 75 days
Packaging Details: Standard Packing with steel wire fixed and film coated
Material Thickness: 1.2-2.0mm
Roller speed: 0-12m/min
Roller station: about 18stations
Material: color steel, galvanized steel
Main motor: 7.5KW
Hydraulic motor: 4KW
Way of cutting: hydraulic cutting
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1.2mm-2.0mm Thickness Galvanized Metal Steel Upright Fence Post Roll Forming Machine

1.2-2.0mm Thickness Galvanized Metal Steel Upright Fence Post Roll Forming Machine


1. Upright Fence Post Roll Forming Machine Technical Parameter


1Suitable to process

Color steel and galvanized steel

2
Width of the plate
As customer need
3Thickness of the plate1.2-2.0mm
4De-coilerPassive one, can load 3 tons raw material
5Rollers for formingAbout 18 rollers
6Diameter of the rollerΦ75mm
7Rolling materialHigh Grade Steel 45#
8Main motor power7.5kw
9ProductivityAbout 0-12m/min
10Cutting methodHydraulic cutting
11Material of the cutting bladeCr12Mov
12Hydraulic cutting power4kw
13Processing precisionWithin 1.00mm
14Control systemSiemems PLC control
15Main structure of the machine350 H steel
16WeightAbout 5.5 T
17Dimensions9.6*0.67*0.89m
18Voltage380V 50Hz 3phases,or according to your request

2. Upright Fence Post Machine’s Components


ItemComponents NameQuantity
13T Passive Decoiler1 set
2Roll Forming Machine1 set
3Hydraulic Station1 set
4PLC control Cabinet1 set
5Cutting blade1 set
6Out table1 set
7Safety cover1 pc

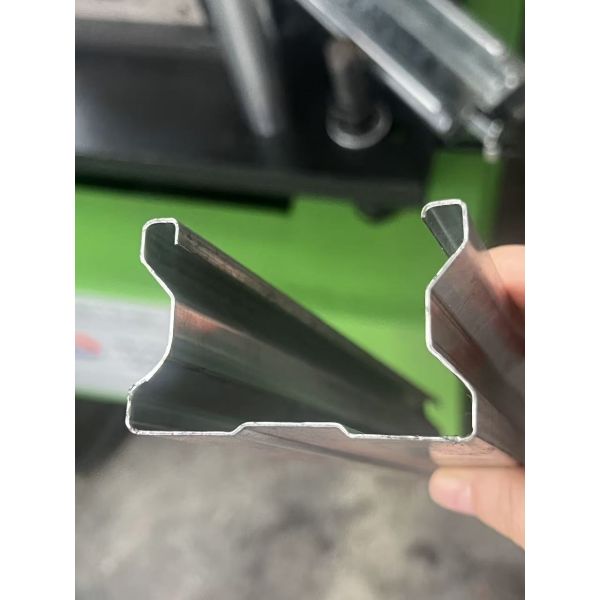

3. Upright Fence Post Profile


It is special making for fence in Australia market.


4.Application

Colorbond Corrugated Iron Fencing: An attractive and durable iron fence made of high-quality steel.

The surface undergoes hot-dip galvanization and powder coating, offering multiple color options such as black, white, and green.

Its common size is 1.8m × 2.4m, suitable for residential fences, yard enclosures, etc.

It features easy assembly, corrosion resistance, and water resistance.

Other type we can make:
