Instrument Specifications
1. Instrument name, model, series, manufacturer's serial number and date

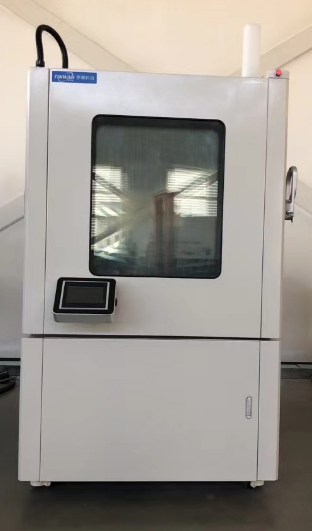

Product Name: High and Low Temperature Humidity Test Chamber
Instrument Model: RSR1000-040PFE
Series: PT
Factory Number: SHS20252072
Production Date: 20250820
2. Test area volume, dimensions, and outer box dimensions
Test Chamber Volume: 1000 L
Inner Box Size: 1000 mm × 1000 mm × 1000 mm (W×H×D)
Outer Box Size (approx.) : 1275 mm×2110 mm×2100 mm (W×H×D)
3. Power Configuration
Power Supply Voltage: AC 480 V 60 Hz three Mutually five Wire
4. Standard Accessories
1. One test chamber
2. Power cord (extending 5 meters outside the device) 1
3. Two silicone soft plugs (for test holes)
4. Test specimen shelf with two layers
5. Two sets of shelf hooks
6. Special wet ball gauze five strips
7. One set of operating instructions
8. One certificate of conformity and warranty card
Main Technical Parameters
1. Temperature Technical Parameters
Temperature Range: -40 ℃ to 150 ℃
Temperature Fluctuation: ≤ ± 0.5 ℃
Temperature Deviation: ≤ ± 2.0 ℃
Temperature Uniformity: ≤ 2.0 ℃
Cooling Rate: ≥ 1.0 ℃/MIN
Heating Rate: ≥ 2.9 ℃/MIN
2. Humidity Technical Parameters
Humidity Range: 10% RH to 98 % RH
3. Other Technical Parameters
The above parameters are measured under the conditions of ambient temperature 25 ℃ , relative humidity ≤85%RH, no heat source around, and no load in the test area.
4. Load
Heat Source Load: No load
Specimen Load: No load
Confirmation of Usage Environment
Please confirm that the instrument pre-positioning environment meets the following conditions:
● Ambient temperature: 5℃-35℃;
● Relative humidity: ≯85%RH;
● Atmospheric pressure: 80kPa-106kPa;
● Reserved space: ≮2 meters in front, ≮1 meter in the back, left and right, and ≮0.5 meters at the top;
● Wastewater discharge: A drainage device or wastewater collection box should be installed within one meter from the rear of the machine;
● The equipment should be kept away from direct sunlight, with smooth airflow, no strong vibration, no heat source, and no high-concentration dust, flammable or explosive gases, etc.
|
