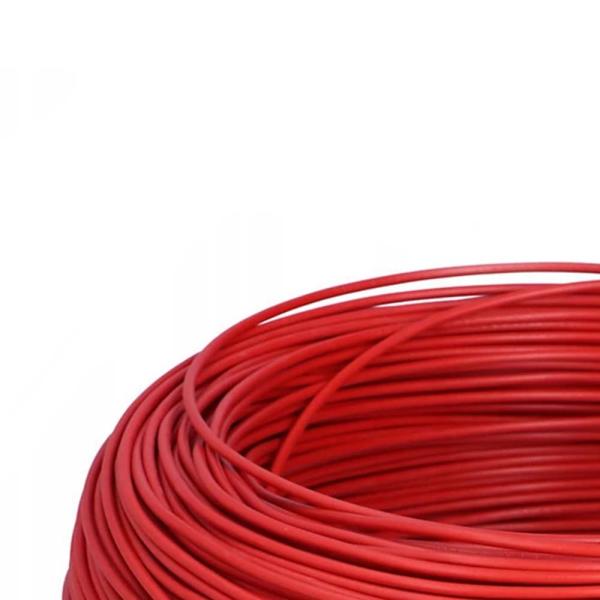

Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded

Product Description:

1.Designed for global networking needs, the ITI-CT5SF-026 SFTP CAT5E cable from INTEGRITY meets international standards for performance and safety. Its 24AWG pure copper conductor and 100MHz bandwidth support smooth data flow for communication networks and backbone systems.

2.The SFTP shielding protects against electromagnetic interference, ensuring stable connections for security cameras and industrial control devices.The red LSZH jacket offers dual benefits: easy cable management in dense setups and fire safety for enclosed spaces like data centers.

3.At 305m long, this CAT5E cable is ideal for large-scale installations, from residential complexes to cybercafés. It’s built to withstand harsh conditions—resistant to moisture and temperature changes—making it suitable for outdoor or industrial use.

4.Compatible with all standard network devices, this LSZH-equipped SFTP CAT5E cable is a cost-effective choice for anyone seeking reliability. Whether upgrading or building a new network, ITI-CT5SF-026 delivers consistent performance.

Technical Parameters:

Product Description: Red SFTP CAT5E Cable LSZH 24AWG 100MHz 1000FT Shielded
Rev.: A		ECN Description:
Construction Item Description			Electrical Property
Conductor	Material	Bare Solid Copper(elongation: 19 ~ 24%)	Conductor Resistance at 20°C			≤ 9.5 Ω / 100m
	OD	24 AWG	Resistance unbalance within a pair			≤ 2%
Insulation	Material	HDPE 8303	Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V			>1500 MΩ / 100m
	OD	1.05 ± 0.02 mm	Mutual capacitance			5600 pF / 100m MAX
	Average THK	0.24 mm	Capacitance unbalance pair to ground at 800Hz or 1 kHz			≤ 160 pF / 100m
	Color	1p: white + 2 blue stripes & blue	Characteristic impedance at 100MHz			100 ± 15 Ω
		2p: white + 2 orange stripes & orange	Dielectric Strength Test Voltage (cd/cd,cd/screen): 1.00KV DC or 0.7 KV AC for 1 min			No breakdown
		3p: white + 2 green stripes & green	Mechanical Property
		4p: white + 2 brown stripes & brown	insulation	elongation before aging		≥ 300%
Pair Twist	Lay & Direction	1p: S=20.0 mm (28%)		tensile strength before aging		≥12 MPa
		2p: S=17.5 mm (24%))		elongation after aging		≥ 150 %
		3p: S=22.0 mm (32%)		tensile strength after aging		≥10.5 MPa
		4p: S=15.5 mm (21%)	jacket	elongation before aging		≥ 150 %
	OD	/		tensile strength before aging		≥ 13.5 MPa
Inner Assemble	Lay	S=90 ± 5 mm		elongation after aging		≥ 125 %
	Direction	according to the drawing		tensile strength after aging		≥ 12.5 MPa
	Filler	/	Packing
	OD	/	Drum		NA
Filler	Ripcord	300D	Master Carton		NA
	Drain Wire	Tinned Copper
Outside Shield	Shield	Shield
	Construction	/
	Material	Polyester film/Aluminium Foil (PET/ALU)
	Coverage	≥ 115%
Jacket	Material	LSZH, 60P, -20~75℃
	Hardness	81 ± 3
	OD	6.5 ± 0.2
	Average THK	0.50 ~ 0.60
	Color	Red
	Marking Color	black
Marking		according to the customer's requirements

Electrical Properties
Conductor Resistance at 20°C	NF EN 50289-1-2 / IEC 60189-1	≤ 9.5 Ω / 100m
Resistance unbalance within a pair	NF EN 50289-1-2/ IEC 60708	≤ 2%
Dielectric Strength Test Voltage (cd/cd): 1.00KV DC or 0.7 KV AC for 1 min Test Voltage (cd/screen): 1.00KV DC or 0.7 KV AC for 1 min	NF EN 50289-1-3 / IEC 61196-1-105	No breakdown
Insulation Resistance at 20°C after 2min of electrification under a DC voltage between 100 & 500V	NF EN 50289-1-4 / IEC 60885-1	>1500 MΩ / 100m
Mutual capacitance	NF EN 50289-1-5 /IEC 60189-1	5600pF / 100m MAX
Capacitance unbalance pair to ground at 800Hz or 1 kHz	NF EN 50289-1-5 / IEC 60189-1	≤ 160 pF / 100m
Characteristic impedance at 100MHz	NF EN 50289-1-11/ IEC 61156-1	100 ± 15 Ω
Spark Test	UL444	2000 ± 250VOC

Applications:

1. Factory Networks: ITI-CT5SF-026 SFTP CAT5E cable ensures interference-free data for production line sensors and controllers.

2. Data Centers: Red LSZH jacket simplifies cable management, while SFTP shielding maintains server connection stability.

3. Security Installations: Compatible with alarm systems and CCTV, the CAT5E cable’s SFTP design resists external interference.

4. Power Distribution: Fire-safe LSZH material makes it suitable for power substations, paired with SFTP for signal protection.

5. Home & Cybercafés: 305m length covers large spaces, with 24AWG copper supporting fast gaming and streaming in cybercafés.

Product Tags:


*From:	Your email address is incorrect!
*To:	Integrity Cable Co., Limited
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	SFTP CAT5E Cable
Brand Name:	ITI-LINK
Model Number:	ITI-CT5SF-026
Certification:	UL, ETL, CSA, RCM, TUV, CPR, CE, RoHS
Place of Origin:	SHENZHEN
MOQ:	1000pcs
Payment Terms:	T/T
Supply Ability:	2000pcs/day
Delivery Time:	15-45Days
Packaging Details:	Color Box+Packing Box 282812cm
Price:	$50-$100
Conductor Material:	Copper
Cable Shielding:	SFTP
Cable Type:	CAT5E
Cable Length:	500Ft
Jacket Color:	Red
Jacket Material:	LSZH
Conductor Gauge:	24 AWG
Frequency:	100MHz
