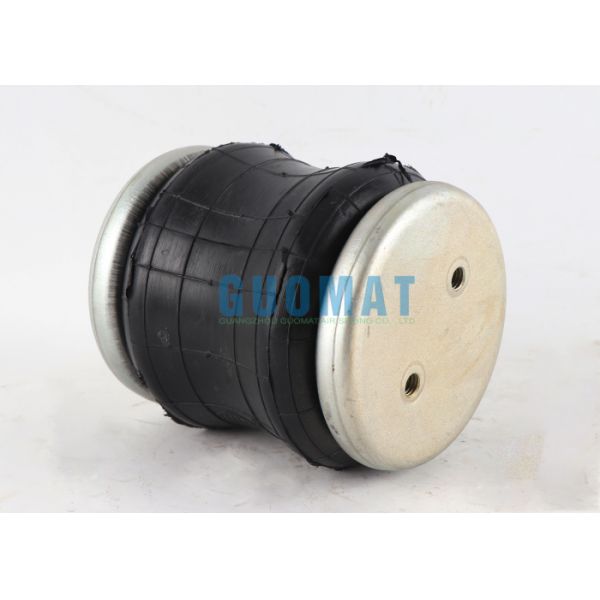

141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow

Categories Suspension Air Spring
Brand Name: GUOMAT
Model Number: 2B7725
Certification: ISO/TS16949:2009
Place of Origin: GuangDong, China
MOQ: 6PCS
Price: $59.9-69.9/pc
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Delivery Time: 2-8 work days
Packaging Details: Strong Carton Box Or As Customers Need
Spring Material: Rubber
Warranty: 1 Year
Product Feature: In-situ installation
Type: Gas-filled
Position: Universal
Firestone No.: W01-358-7725
Air Fitting: 1/4-18NPTF
Height: 141mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow

141mm Firestone Suspension Air Spring W01-358-7725 Pneumatic Convoluted Air Bellow
Product Specifications
ItemValue
OEM.NO.2B7725
TypeAir Spring
Warranty12 Months
Truck ModelHeavy Duty Truck
ColorBlack
Place of OriginGuangzhou,China
CertificationISO/TS16949:2009
MaterialRubber+Steel
PackingNeutral Packing
MOQ1 Pcs
QualityHigh-Quality
PositionAuto/Truck parts
ApplicationAuto Suspension Systems
Reference Number
FIRESTONE W01-358-7725
FIRESTONE W01 358 7725
FIRESTONE W013587725
FIRESTONE WO1-358-7725
FIRESTONE WO1 358 7725
FIRESTONE WO13587725
Technical Data
Natural Height: 141mm
Gas Hole: 1/4-18NPTF
Threaded Hole: 3/8-16UNC
Natural Outer Diameter: 126mm
Cover Plate Diameter: 114.8mm
Center Distance Between Threaded Holes: 44mm

Industrial Air Springs in Agricultural Spray Equipment


Maintaining a Stable and Level Spray Boom: When sprayers operate over uneven fields, traditional mechanical suspension systems struggle to respond quickly to ground changes, causing the boom to shake or tilt violently. This results in uneven spraying, with some areas experiencing excessive spraying (causing damage and waste) and others experiencing insufficient spraying (poor control effectiveness). Air springs, leveraging the elasticity of the compressed air within them, quickly absorb and cushion ground impacts, automatically maintaining the boom level and ensuring a constant, optimal distance between the nozzle and the crop canopy.


Effectively Protecting the Boom Structure: Spray booms (especially those up to 20-30 meters long on large sprayers) are expensive and fragile components. Severe jolting and twisting can cause deformation or damage. The cushioning effect of air springs significantly reduces impact forces transmitted to the boom, extending the equipment's service life.


Automatic Terrain Following: Advanced sprayer suspension systems incorporate sensors and control systems, enabling the air springs to actively adjust air pressure and travel, allowing each section of the boom to independently "mimic" the contours of the terrain for precise terrain following. This is especially important when working in hilly and undulating terrain.
