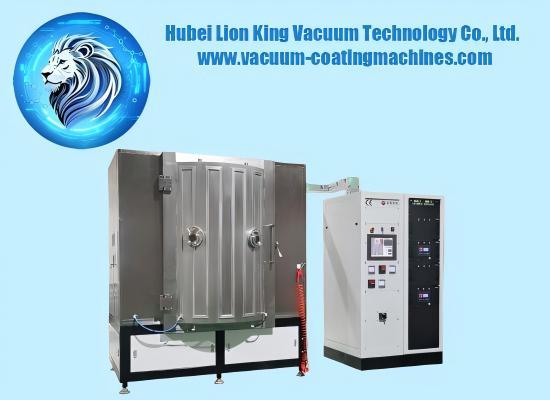

Working Principle: Magnetron Sputtering for Metals​

1.Vacuum Chamber Preparation: The chamber is evacuated to high vacuum to remove air and moisture.​
2.Substrate Pre-Treatment: Metal workpieces are cleaned via ion bombardment and heated.​
3.Sputtering Process: Argon gas is injected into the chamber; high voltage ionizes argon into plasma. Under the action of a strong magnetic field, plasma ions are accelerated to bombard the sputtering target, ejecting target atoms.​
4.Coating Deposition: Target atoms uniformly deposit on the rotating metal workpieces, forming a dense, thin coating.​
5.Cooling & Unloading: After coating, the chamber is vented; workpieces are cooled to room temperature and unloaded—ready for use or post-processing.

Core Features: Tailored for Metal Substrates​

① Superior Coating Performance on Metals​

Exceptional Adhesion: Adopts metal substrate pre-treatment to ensure coating-substrate bonding strength reaches ASTM 5B level. Even for high-hardness metals, the coating remains intact after 10,000+ times of friction testing.​
Extreme Durability: Supports deposition of wear-resistant coatings with surface hardness up to HV 4000—3x harder than traditional electroplated chromium. Metal tools coated with TiAlN can extend service life by 5–10x; auto engine parts can withstand 500°C high temperatures without coating degradation.​
Strong Corrosion Resistance: Ceramic-based coatings and nitride coatings enable metal parts to pass 2,000-hour neutral salt spray testing—ideal for marine, automotive, and outdoor metal components.​

② High Efficiency for Metal Mass Production​

Fast Deposition Rate: Equipped with high-power magnetron targets and optimized magnetic field design, deposition rate reaches 300–800 nm/min—2–4x faster than conventional PVD machines. For thin decorative coatings (50–200 nm), a single batch of metal parts can be coated in 15–30 minutes.​
High Target Utilization: Closed-field unbalanced magnetron structure increases target material utilization from 15% (traditional) to 45%, reducing raw material waste. For high-cost metal targets, this cuts annual target consumption costs by 30%.​
Large Batch Capacity: Configurable planetary workpiece racks can hold metal parts of various sizes—from small screws to large auto wheels. Single-batch capacity ranges from 100–500 pieces, meeting industrial-scale output.​

③ Wide Compatibility with Metal Materials​

Fully adapts to all common metal substrates, solving the problem of "poor coating adaptability for special metals":​
Ferrous Metals: Stainless steel, carbon steel, cast iron.​
Non-Ferrous Metals: Aluminum alloy, titanium alloy, copper alloy, magnesium alloy .​
Special Metals: Tungsten, molybdenum, nickel-based superalloys .​

④ Smart Control & Stable Operation​

Intelligent Process Management: 12-inch touchscreen HMI with 200+ customizable process recipes. Parameters like vacuum level, sputtering power, gas flow, and coating thickness are automatically controlled, reducing human error to <0.5%.​
Real-Time Quality Monitoring: Built-in film thickness sensor and vacuum leak detection system. If parameters deviate, the machine triggers an alarm and pauses operation—ensuring consistent coating quality for each batch of metal parts.​
24/7 Continuous Operation: Robust vacuum system and wear-resistant target holders enable stable operation for 3,000+ hours without major maintenance—matching the high-load production rhythm of metal factories.​

⑤ Eco-Friendly & Compliance​

Zero Pollution: Pure physical deposition process—no cyanide, heavy metals, or volatile organic compounds (VOCs) emitted. Complies with EU RoHS, REACH, and Chinese GB 21900 environmental standards, helping metal enterprises avoid environmental penalties.​
Energy-Saving Design: Adopts DC pulse sputtering technology and heat recovery system, energy consumption is 40% lower than electroplating machines and 25% lower than thermal evaporation PVD machines. For a 2-shift daily operation, it saves ~300 kWh of electricity monthly.

Global Supplier of Next-Generation PVD Vacuum Coating Solutions

Founded in 2003, Lion King is a leading mechanical engineering and technology provider specializing in the R&D, manufacturing, and integration of PVD vacuum coating systems and UV coating solutions. As a trusted partner to clients in over 50 countries, we deliver tailored, high-precision coating technologies that empower industries ranging from decorative finishes to advanced functional applications. Our commitment to innovation, combined with a global after-sales network, ensures reliable and cutting-edge solutions for every project.

Core Expertise: Advanced PVD Vacuum Coating Systems

Our comprehensive product portfolio includes:

1.  Evaporation Vacuum Coating Machines

Ideal for depositing high-purity metals and oxides via thermal or electron beam evaporation, these systems are widely used in optical coatings (e.g., anti-reflective layers on lenses) and decorative applications .

2.  Magnetron Sputtering Vacuum Coating Systems

Leveraging plasma-driven ion bombardment, our sputtering systems produce dense, uniform films on complex 3D substrates. Applications span semiconductor interconnects, hard tool coatings, and architectural glass .

3.  Multi Arc Ion Vacuum Coating Machines

Utilizing high-energy arcs to ionize target materials, these systems deliver ultra-hard, wear-resistant coatings (e.g., TiN for automotive components) with exceptional adhesion .

4.  Optical Electron Gun Vacuum Coating Systems

Engineered for precision deposition in ultra-high vacuum environments, these systems excel in optical thin films (e.g., TiO₂ for laser optics) and semiconductor-grade purity .

5.  Continuous Vacuum Coating Lines

Modular, high-throughput systems integrating sputtering, evaporation, and plasma treatments for large-scale production in photovoltaics, flexible electronics, and packaging .

6.  Roll-to-Roll Vacuum Coating Equipment

Designed for flexible substrates (e.g., metal foils, polymers), these systems enable continuous deposition of EMI shielding films, OLEDs, and battery electrodes with tight tension control .

7.  Specialized Application Lines

A.  Low Emissivity (Low-E) Glass Vacuum Coating Line: Magnetron sputtering-based systems for energy-efficient architectural glass, reducing heat transfer by 90% .

B.  Rearview Mirror Blue Film Vacuum Coating Line: Precision coating solutions for automotive mirrors, offering anti-fog, anti-glare, and hydrophobic properties .

C.  AF/AS Film Magnetron Sputtering Vacuum Coating Line: Advanced systems for anti-fingerprint (AF) and anti-scratch (AS) coatings on consumer electronics and optical devices .

D.  AR Glass vacuum coating line: Specialized for depositing anti-reflective (AR) films on glass substrates, utilizing multi-layer dielectric coatings (e.g., SiO₂/TiO₂ stacks) to reduce surface reflectivity to <1% (from ~4% for uncoated glass). Ideal for displays, optical lenses, architectural glass, and solar panels, enhancing light transmittance and visual clarity. Our AR lines integrate precise thickness control (±0.5nm) and in-line inspection systems to ensure uniformity across large-format glass.
