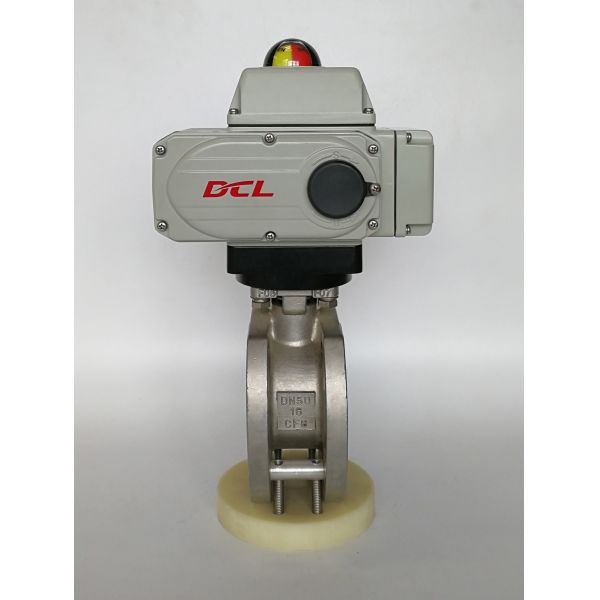

Electric Actuated Ball Valve DN80~DN100 Vent Valve DN100~DN200

Categories	Electric Butterfly Valve
Brand Name:	DCL
Model Number:	DCL-05
Certification:	CE/ROHS/CSA/IP67
Place of Origin:	WUHAN,CHINA
MOQ:	1pc
Payment Terms:	D/P,T/T,Western Union,MoneyGram
Supply Ability:	2000PCS/month
Delivery Time:	7 working days
Packaging Details:	carton/pallet
Name:	Electric Actuated Butterfly Valve
Butterfly Valve:	DN50~65
Ball Valve:	DN40
Vent Valve:	DN50~80
Design:	compact design
standard:	UL standard

Contact Now

Add to Cart

Company Info.

Dynamic Corporation Limited

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Electric Actuated Ball Valve DN80~DN100 Vent Valve DN100~DN200

SS304 Concentric Electric Actuated Butterfly Valve DN50~DN65

Electric Actuated Butterfly Valve — Description

The Electric Actuated Butterfly Valve features excellent flow capacity, high control precision, reliable sealing performance, and lightweight construction. It is widely used in food processing, environmental protection, light industry, petroleum, papermaking, chemical, education and research equipment, and electric power industries as part of industrial automation control systems.

Electric Actuator Features

Compact Design: The smallest and most compact actuator within a torque range of 1000 Nm to 2500 Nm.
Durable Gear System: Equipped with an extra-large, super-hard copper alloy final-stage worm gear to minimize force and wear.
High Torque Transmission: Double-row chain transmission between the gearbox and worm gear stem ensures superior torque strength.
Powerful Motor: Fitted with a high-torque motor capable of delivering start-up torque exceeding the rated torque by 10%, even under 10% below rated voltage.
Extended Service Life: Successfully tested for over 10,000 full-stroke cycles under full rated load with an 80% duty rating.
Versatile Compatibility: Suitable for up to DN650 butterfly valves, DN350 ball valves, and DN1200 ventilation butterfly and flap valves.
Manual Override: Includes manual operation via wrench or de-clutchable handwheel for emergency use.
Certifications: CSA certified per UL standards, CE marked, and compliant with RoHS 3.0 requirements.

Specification of Electric Actuated Butterfly Valve

Actuator Type	Butterfly Valve(≤PN1.0MPa)	Ball Valve(≤PN1.6MPa)	Vent Valve(≤PN0.1MPa)
DCL-02	≤DN40	≤DN32
DCL-05	DN50~65	DN40	DN50~80
DCL-10	DN80~100	DN50~65	DN100~200
DCL-20	DN125~150	DN80~100	DN250~300
DCL-40	DN200	DN125	DN350~450
DCL-60	DN250	DN150	DN500~600
DCL-100	DN300	DN200	DN700~800
DCL-160	DN350~400	DN250	DN900
DCL-250	DN450~600	DN300~350	DN1000~1200
