Factory Direct Sale Low Energy Consumption Automatic System High Capacity Tire Tread Vulcanizing Machine for Tire Retreading

Basic Info.

Model NO.

XLB

Type

C Type Vulcanizing Press

Power(Kw)

7.5-40kw

Working Layer No.

Piston Diameter(mm)

Customized

Transport Package

Standard Export Packages

Specification

CE1282, ISO9001: 2008, SGS

Trademark

SFC

Origin

China

HS Code

8477800000

Product Description

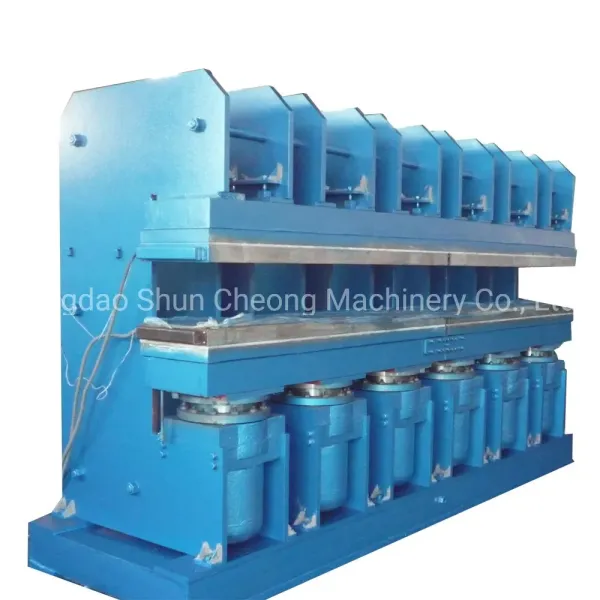

Factory Direct Sale Tire Tread Vulcanizing Machine Production Line

Usage:

This machine is mainly used for truck tread vulcanization process, used in tire retreading line.

Specifications
1.Low energy consumption
2.Convenient in maintenance
3.High capacity with simple operation
4.Automatic system

Parameter

We can design various press according to your specific requirements.

Model	XLB-3000x1000x5	XLB-5500x360x5	XLB-5500x360x5	XLB-1100x420x5
Total Pressure(MN)	12	10	8	20
Daylight(mm)	140	75	75	75
Working Layer No.	5	5	5	5
Piston Stroke(mm)	500	375	375	375
Piston Diameter(mm)	φ360	φ250	φ250	φ250
Hydraulic Cylinder No.	8	10	8	20
Working Hydraulic Pressure(Mpa)	14.7	20.4	20.4	20.4
Motor Power(KW)	29.5	21.5	7.5	40
Dimension(mm)	3720X3460X4120	7600X2700X3100	7600X2700X3100	15500X3400X4200
Structure Type	Jaw	Side-plate	Side-plate	Side-plate

The main features of this tyre tread vulcanizing press

1. Two dual-action cylinders are adopted for fast mold open / close;
2. Provided with mass flow pre-fill valve;
3. Automatic mold forward / backward;
4. The machine is automatic and manual switching control, which can open mold and decline in the case of power failure.
5. Multiple options of layer number and tables;
6. Hydraulic pressure components and electrical equipments are imported or of local famous brand, to ensure reliable performance.
7. The machine has automatic pressure compensation, automatic exhaust, vulcanization digital display, automatic mold opening,etc. It can realize the automatic completion of a working cycle from "mould pull in - mould closing rising - automatic exhaust - vulcanization timing - mould opening falling - product pushing" The machine can stop automatically from mould closing to vulcanization pressure and carry out vulcanization timing at the same time.When the vulcanization time is reached, the alarm is automatically issued, and the auto-pressure compensation function is maintained during the pressure-holding vulcanization process
8. We also can according to the customers' requirement, and design the non-standard type of tire tread vulcanizing machine.

Factory Direct Sale Tire Tread Vulcanizing Machine Production Line

Factory Direct Sale Tire Tread Vulcanizing Machine Production Line

Packaging

Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

Factory Direct Sale Tire Tread Vulcanizing Machine Production Line

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao Jiaodong airport. We will pick up you at the airport.

Factory Direct Sale Tire Tread Vulcanizing Machine Production Line

Our Services

♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.

♦ In the process of production, we will take photos and send to customers for their track the progress.

♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.

♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.

♦ We supply overseas engineer service and help to train your workers to operate the machine.

Factory Direct Sale Tire Tread Vulcanizing Machine Production Line
