Industrisal Ultrasonic Cleaner with Lifting System

Categories Industrial Ultrasonic Cleaner
Certification: CE, RoHS
MOQ: 1
Price: 5000
Model NO.: JP-720GS
Cleaning Precision: Ultra-Precision Industrial Cleaning
Principle: Physical Cleaning
Material: Stainless Steel SUS304
Frequency: 28kHz or 40kHz
Capacity: 360 Liters
Transducer: 72 Pieces
Ultrasonic Power: 3600W
Heat Power: 900W
Tank Size: 1000*600*600mm (L*W*H)
Tank Thickness: 3 mm
Timer: 1s-99 hours
Heater: 20-95°C
Drain Valve: 1 inch
Machine Voltage: 380V/3 phase
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

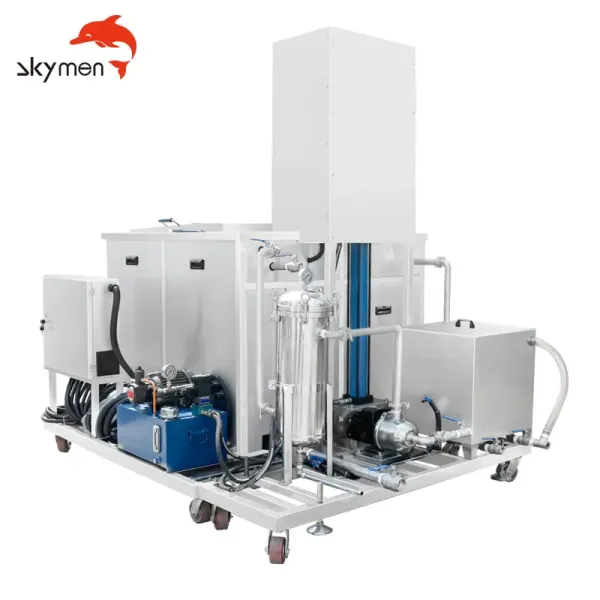

Industrisal Ultrasonic Cleaner with Lifting System

Stainless Steel 304 (OR SUS316) Professional Industrial Big Capacity Ultrasonic Cleaning Machine with Lifting Function
  Model
JP-360GS
JP-480GS
JP-720GS
JP-840GSJP-960GS
Tank size(MM)600*500*450 700*500*5001000*600*6001000*900*6001200*1000*800
Tank capacity(L) 135L175L360L540L960L
Transducers36pcs48pcs72pcs84pcs96pcs
Ultrasonic power (W)18002400300036004200
Heating power(W) 45006000 90001500015000
Frequency28K OR 40Khz
Tank material304 stainless steel
Tank thickness3 mm
Timer1s-99 hours
Heater20-95°C
Drain valve1 inch
Basket & LidYes
Machine Voltage 380V/3 phase
Features With castor
Packing Carton

How ultraosnic cleaner works:

Electrical energy is converted into mechanical vibrations thanks to special elaborated transducers.These vibrations are transferred into the fluid through the walls of stainless steel.This creates tiny microscopic vacuum bubbles, which cause consecutive implosions (cavitation).The high-energy jets that are thus created can efficiently remove dirt from surfaces an materials placed in the cleaning bath.

An industrial ultrasonic cleaner can have an important role in refurbishing equipment as well.
The refurbishing process includes taking the equipment apart; cleaning the unit as well as any parts that can be salvaged; replacing, repairing or upgrading damaged components; reassembling the equipment; and then doing touch ups or cosmetic enhancements. An ultrasonic cleaner is ideal for cleaning these parts prior to reassembly, thoroughly removing any oils, coolants, or sludge build up.
ultrasonic cleaning is faster than conventional aqueous cleaning without damaging the parts.
Specifically, ultrasonic pre-treatment of parts allows for batch processing and removes polishing compounds, etc. without staining or reducing the adhesion in parts to be electro-plated. Ultrasonic cleaning is perfect for degreasing tools and parts without manual scrubbing,
capable of handling jobs that require both firm and gentle cleaning. And in the process of refurbishing equipment, an ultrasonic cleaner is perfect for cleaning parts before the unit is reassembled.




FAQ:
How long do I need to clean my components for?

Cleaning time varies depending on the performance of your ultrasonic bath and the level of contamination present.Different conditions (temperature, ultrasonic power, detergent and detergent dose) will all have an effect on the length of time required to clean a component.


How do you clean an oil extractor pump?
"how to clean petroleum extraction machine
You need to clean the outer part of the oil extractor rubbing thoroughly with it. After that flow alcohol deeply through the internal systems of the oil extractor and the hoses. Alcohol would dissolve those substances that water, even hot water cannot remove. Then, apply hot water.


How much can I load into my ultrasonic cleaner?
The more instruments placed into an ultrasonic bath, the less effective the cleaning cycle is going to be.It is not advisable to place instruments in the basket so that they overlap as a more effective clean will be generated if all surface areas are openly exposed to the cleaning solution.However, filling a basket so that there is clear space between instruments should lead to an effective cleaning cycle.

Should the lid be on my ultrasonic cleaner when in operation?
The lid should be kept on the ultrasonic cleaner while in operation.
The lid is for the protection of the operator and in medical applications the patients also.It prevents aerosols generated during the cavitation process from dispersing and contaminating the reprocessing environment.In addition, the lid reduces the noise levels created during the ultrasonic cycle and helps to maintain the heat of the cleaning fluid in the tank.
