Large Area Stitching Metrology Vision Systems Floor Standing Accurate Measurement

Product Description
Advanced Stitching Vision Technology
Inspired by the celestial continuity of Venus, our VENUS Series stitching measurement systems bridge measurement gaps with seamless data fusion technology. These systems utilize multi-CCD synchronization to capture and precisely stitch localized images from different workpiece regions, creating complete and coherent profiles for accurate segment-based measurement.
This advanced stitching capability eliminates measurement blind spots common with traditional single-field systems when inspecting large workpieces, ensuring dimensional accuracy across entire surfaces.

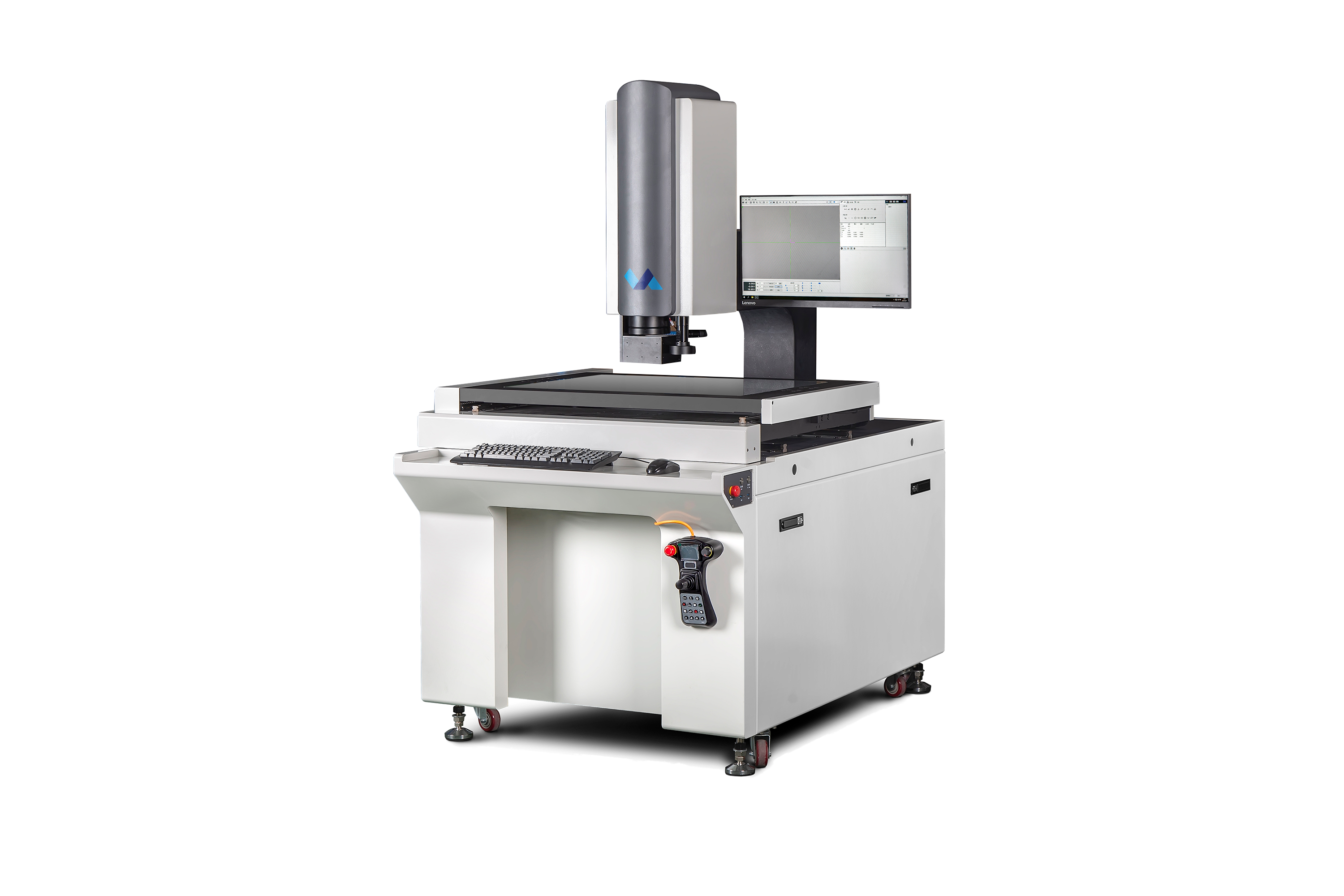

VENUS Series stitching measurement system overview Close-up view of dual-lens optical system VENUS system in industrial measurement application
Specification
ModelVenus 500
Measuring Range (X*Y*Z) (mm)600 x 400 x 200
Effective Range (X*Y*Z) (mm)500 x 400 x 200
Overall Dimensions (X*Y*Z) (mm)1000 x 1320 x 1790
Weight (kg)610
Stage MovementFully automatic
Optical Lens ConfigurationDual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Field of View (FOV)Large FOV: 4mm x 4mm
Auto-Focus Zoom Lens FOV Range: ~0.5mm x 0.5mm to ~1.3mm x 1.3mm
Image SensorLarge-FOV Lens: HIKVISION 20 Megapixel Digital Camera
Zoom Lens: HIKVISION 1.3 Megapixel Digital Camera
Measurement AccuracyLarge-FOV Measurement: ≤ 3 µm
Zoom Lens (High Mag) Measurement: ≤ 2.5 µm
Stitched Image Measurement: ≤ 3 µm
System Measurement Accuracy≤ 3 µm
Surface Light SourceFor Large-FOV Lens: Coaxial LED Light. Optional: LED Ring Light.
For Auto-Focus Zoom Lens: Optional Coaxial Light or 8-Segment LED Ring Light.
Contour Light SourceDome Light / Flat LED Light
SoftwareFlashPro Ultra-High-Speed Inspection Vision Software
Product Application
Aerospace industry measurement application Automotive component inspection Electronics manufacturing quality control
Aerospace Industry
Precision measurement for aircraft components and assemblies
Automotive Industry
Quality control for automotive parts and assemblies
Electronics Industry
High-accuracy inspection of electronic components
About MEAXPERT (MXP)
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services to eliminate lengthy negotiations.
Innovation and Development
Supported by dedicated software and hardware teams, we continuously improve system stability, efficiency, and ease of use through weekly R&D meetings and specialized module development.
Commitment to Quality
We pursue perfection through meticulous attention to every detail, from rigorous material inspections and stringent process control to thorough reliability testing and precise calibration.
