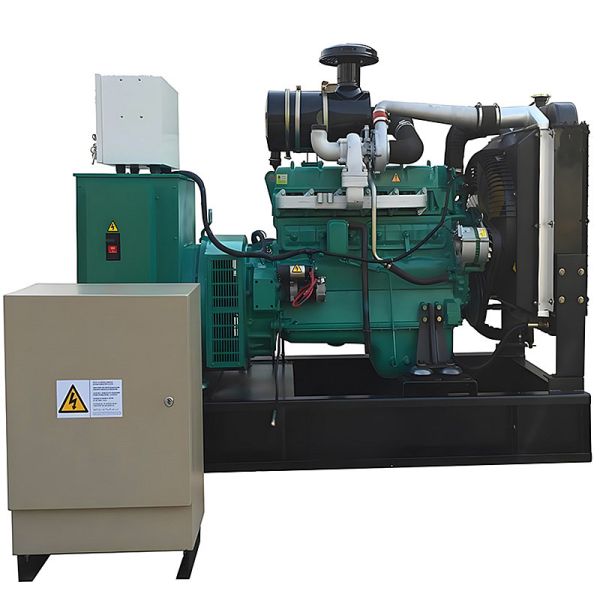

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set
Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set
Categories Open Frame Diesel Generator
Brand Name: SANROCK POWER
Model Number: SPDG20KW
Certification: CE;ISO
Place of Origin: Zhejiang, China
MOQ: 1 set
Price: Chat with supplier now for more details.
Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability: 100000set/month
Delivery Time: 18-30work days Shipping fee and delivery date to be negotiated.
Packaging Details: Nude package for machines, Wooden box package for spare parts, Or customer demand.
Product Nam: open type generator set / genset open type
Frequency: 50HZ/60HZ
Voltage: 48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Cylinder: 3/4/6/12-According to power
Cylinder number: 3,4,6,8,12cylinders
Phase Number and connection: 3-phase 4-wire system
Cooling system: Water cooling
Dimension of set (mm): 1485*700*1000mm~7300*2440*2800mm
Net weight of set (kg): specified
Rated Power (kw/1500rpm): 5-2250kva
Speed: 1500/1800RPM
Type: Trailer Type, Silent Type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type
Rated Power: 20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,1800KW,2200KW
Application: Factory,Building,Farm,Bank etc
Usage: Common Units, Standby Unit
Stroke: Four Stroke
Logistics: Whole machine transportation or disassembly transportation; Sea or railway transportation
Contact Now
Company Info.
Zhejiang Sanrock Power Machinery Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Small Portable Diesel Generator Frequency 50HZ Construction Site Open Frame Diesel Engine Generator Set

A 20KW open-frame generator is a robust and cost-effective power solution designed for a wide range of applications where reliability is crucial, and noise reduction is a secondary concern. Its sturdy steel frame provides excellent durability and ease of maintenance.
Construction and Job Sites
Primary Power Source: Provides reliable electricity for powering tools, lighting, temporary site offices, and worker welfare facilities on new construction sites before grid connection is available.
Equipment Operation: Capable of running heavy-duty equipment such as large concrete vibrators, welding machines, industrial pumps, and air compressors.




Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.

Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"

Product Description

Technical parameters of diesel generator set
Generator set model:SPDG20KW
Steady state voltage adjustment rate (%):≤± 1
Generator power:20kW/25kVA
Voltage fluctuation rate (%):≤ ± 0.5
Power factor:COSΦ = 0.8 (lagging)
Transient voltage adjustment rate (%):＋20 ～－15
Output voltage:400V/230V
Voltage stabilization time (s):≤1
Generator set current:36A
Steady state frequency adjustment rate (%):≤ ± 1
Rated frequency:50Hz
Frequency fluctuation rate (%):≤ ± 0.5
Rated speed:1500rpm
Transient frequency adjustment rate (%):+ 10 ~ -7
Fuel grade:(standard) 0 # light diesel (normal temperature)
Frequency stabilization time (S):≤3
Diesel generator size:1620*620*1380(L*W*H mm
Diesel generator fuel consumption (100% load):224g/kW·h
Diesel generator weight:600kg
Diesel generator volume(LP7m):95dB(A)
Technical parameters of diesel engine
Cooling method: Closed water-cooling
Oil supply method: direct injection
Engine cylinder number: 4 / L Type
Speed regulation method: Mechanical
Bore stroke: 102*120mm
Intake method: Natural inhalation
Compression ratio: 16.5:1
Overload capacity: 110%
Start method:DC 24V Electric start
Diesel engines Speed: 1500rpm
Technical parameters of generator
Protection level:IP22
Wiring mode:Three-phase four-wire, Y-connection
Generator power: 20kW/25kVA
Adjustment method: AVR (Automatic Voltage Regulator)
Rated voltage: 400V / 230V
Output frequency: 50Hz
Insulation class: H class
Output factor: COSΦ = 0.8 (lag)
Product NameDiesel generator
Enginecustomized
Alternatorcustomized
Protectiongenset shotdown when high water temperature,low oil pressure,shortcuit
Rated Power

20KW,30KW,40KW,50KW,80KW,100KW,200KW,300KW,800KW,1000KW,1200KW,1500KW,

1800KW,2200KW

Cylinder number
3,4,6,8,12cylinders
Cooling System Type
Water Cooling System
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Rated Voltage
48V, 110V, 220V, 230V, 240V, 380V, 400V, 415V, 480V
Speed
1500/1800
Frequency
50/60HZ
Diesel Engine
UK, USA, German, Japanese brand engines,4 stroke,water cooled
Alternator model
Stamford/Mecc alte brushless self-excited,IP23,Class H.
Power factor
0.8lagging
Noise level dB(a)
65-95/1m
Excitation
self-excitation
Phase Number and connection
3-phase 4-wire system
Dimension of set (mm)
1485*700*1000mm~7300*2440*2800mm

Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.

SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.



FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;


2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck


3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
